Engine Coolant Fan Shroud Replacement (LEA)

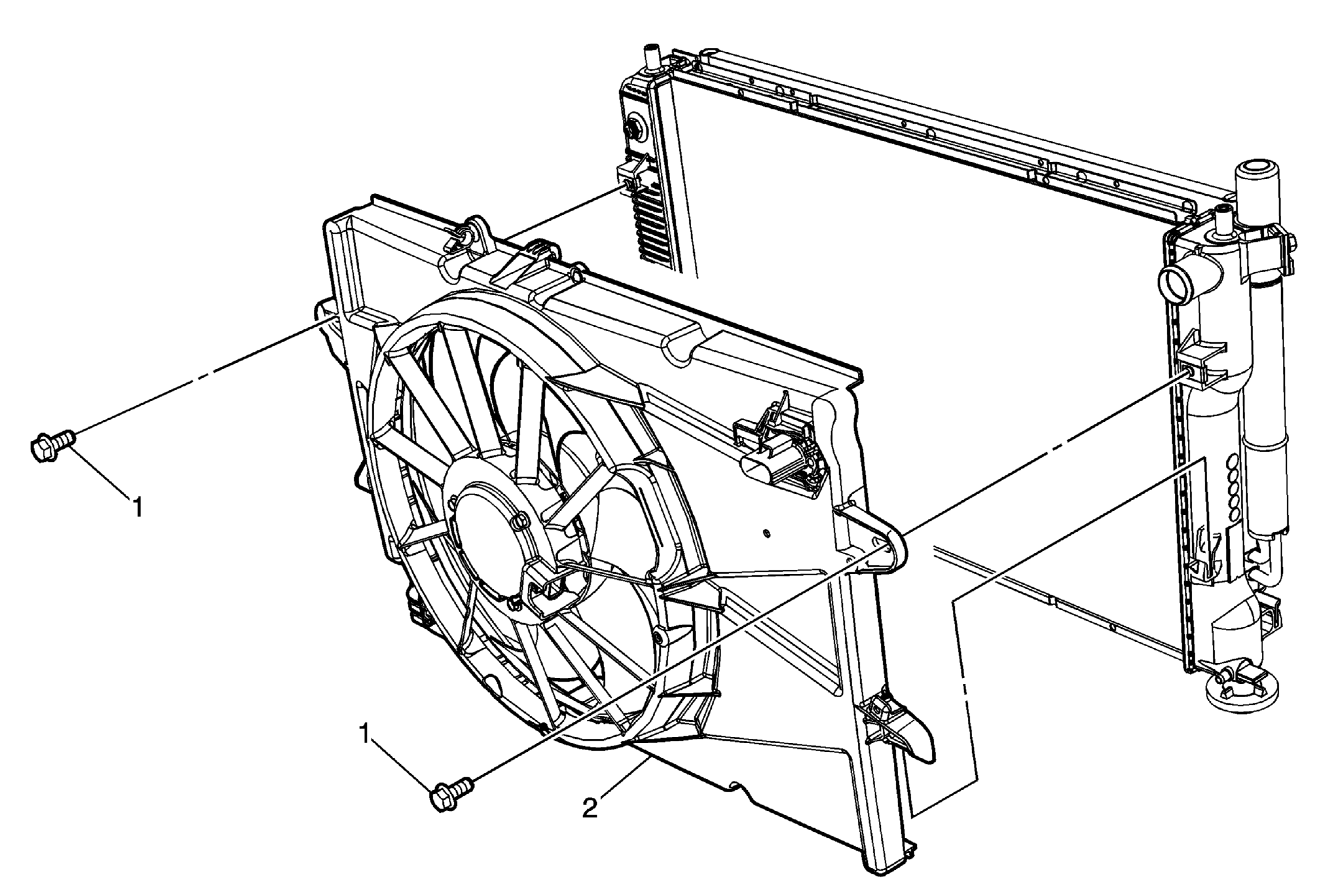

Fig 1: Engine Coolant Fan Shroud (LEA)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Reposition radiator. Refer to Radiator Replacement . Unclip transmission cooler lines from shroud. Unclip air conditioning lines from shroud. Disconnect engine coolant fan motor electrical connector. Disconnect engine coolant fan resistor electrical connector.
1	Engine Coolant Fan Shroud Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Engine Coolant Fan Shroud

Callout

Component Name

Preliminary Procedures

Engine Coolant Fan Shroud Fastener (Qty: 2)

CAUTION:

Tighten
9 N.m (80 lb in)

Engine Coolant Fan Shroud
