Intake Manifold Cover Replacement

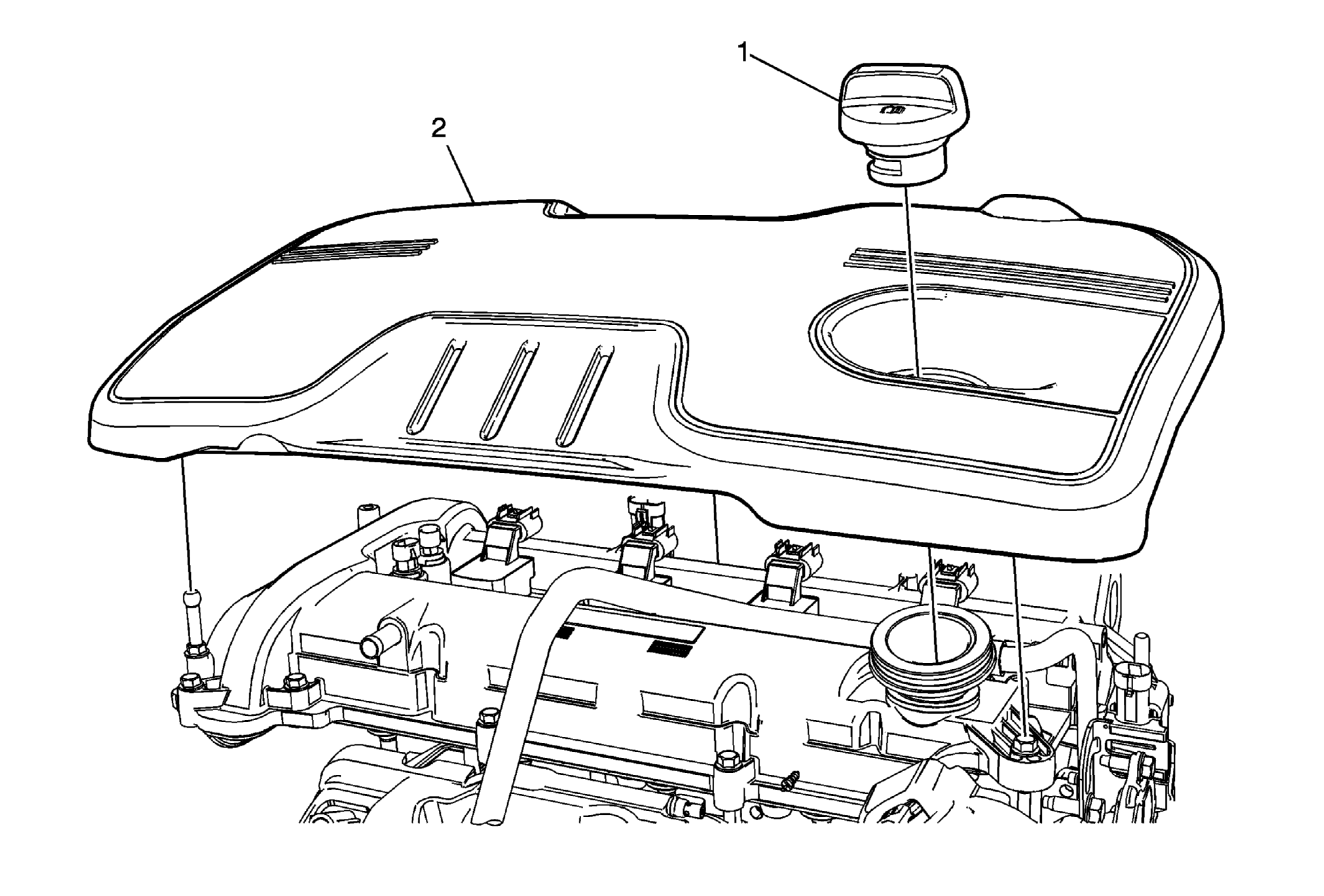

Fig 1: Intake Manifold Cover
GM2202843Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
1 Oil Cap
Procedure
Remove oil cap to remove intake manifold cover.
2 Intake Manifold Cover
Procedure
Transfer components as necessary.
