Luggage Compartment Harness Routing

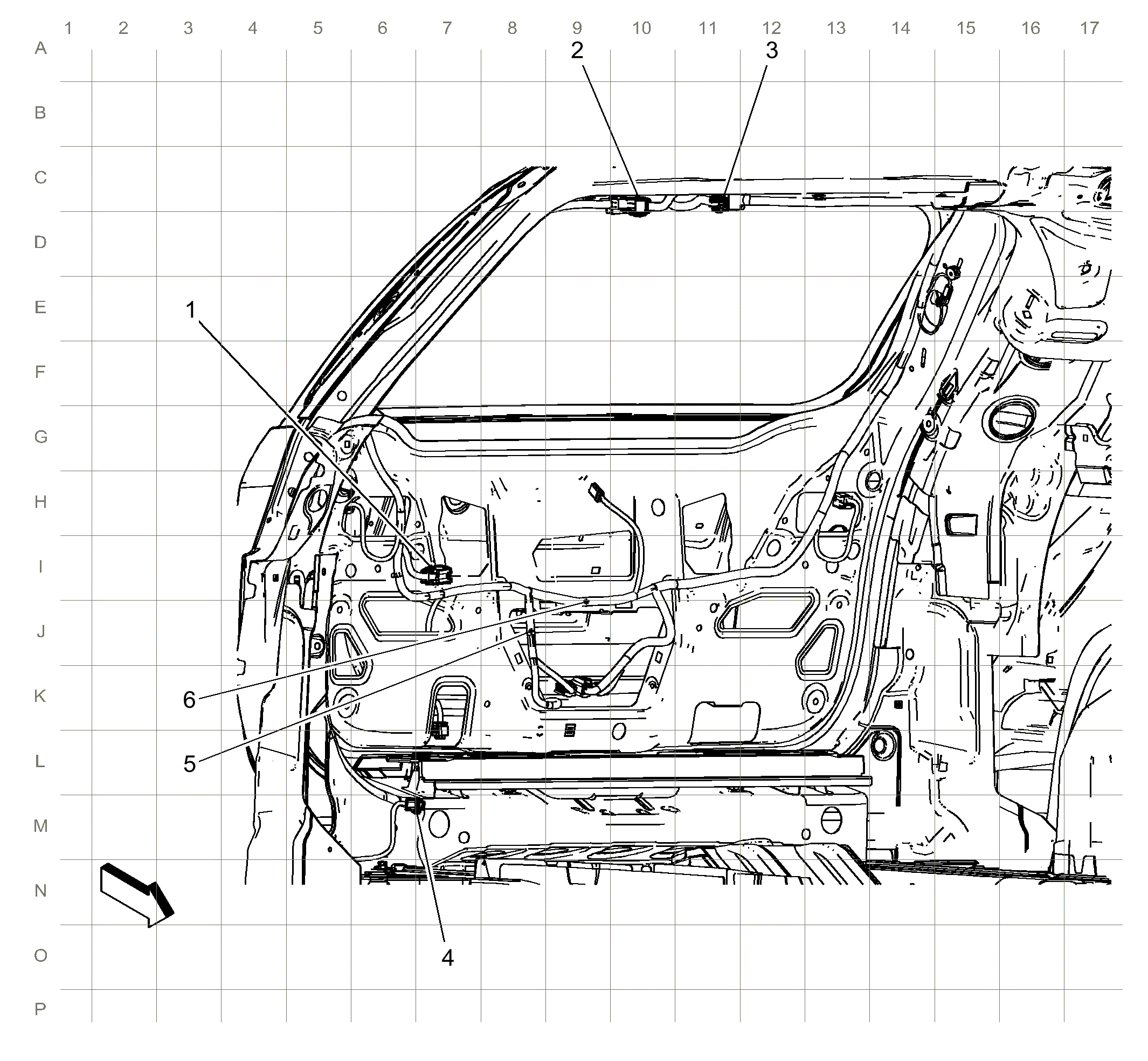

Fig 1: Luggage Compartment Harness Routing
GM2910351Courtesy of GENERAL MOTORS COMPANY
Items
1: X904 X904 License Lamp Harness to Liftgate Harness
2: X900 X900 Body Harness to Liftgate Harness
3: X901 X901 Body Harness to Liftgate Harness
4: X444 (V92) X444 Trailer Jumper Harness to Body Harness
5: J905
6: J904
