Front of Vehicle Harness Routing

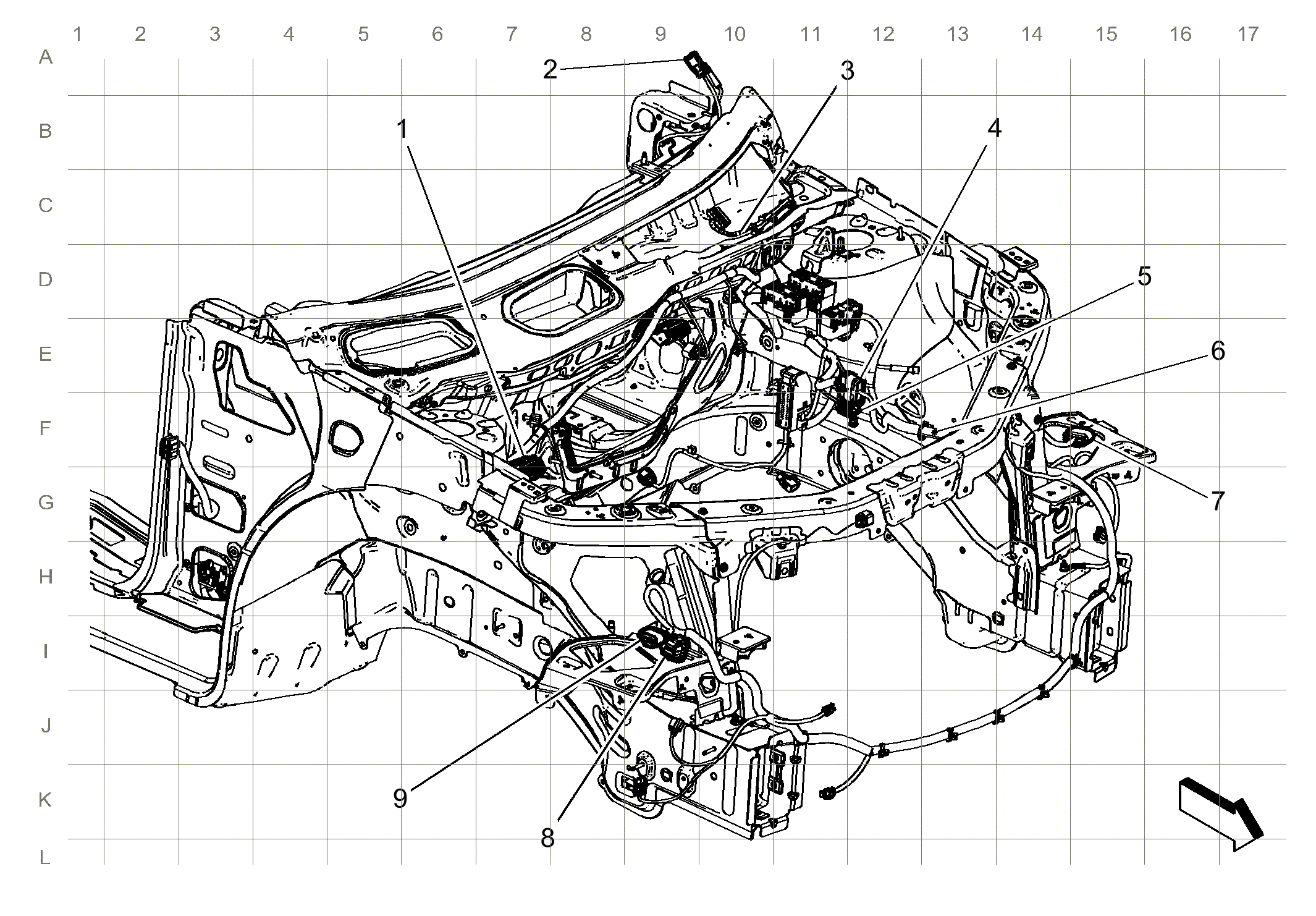

Fig 1: Front of Vehicle Harness Routing
GM2910332Courtesy of GENERAL MOTORS COMPANY
Items
1: X112 X112 Engine Harness to Body Harness
2: X300 X300 Headliner Harness to Body Harness
3: J117
4: X115 X115 Forward Lamp Harness to Body Harness
5: X121 X121 Body Harness to Negative Battery Cable Harness
6: J111 (T96)
7: X110 X110 Forward Lamp Harness to Left Headlamp Harness
8: X116 X116 Forward Lamp Harness to Forward Lamp Extension Harness (LEA)
9: X120 X120 Forward Lamp Harness to Right Headlamp Harness
