X112 Engine Harness to Body Harness

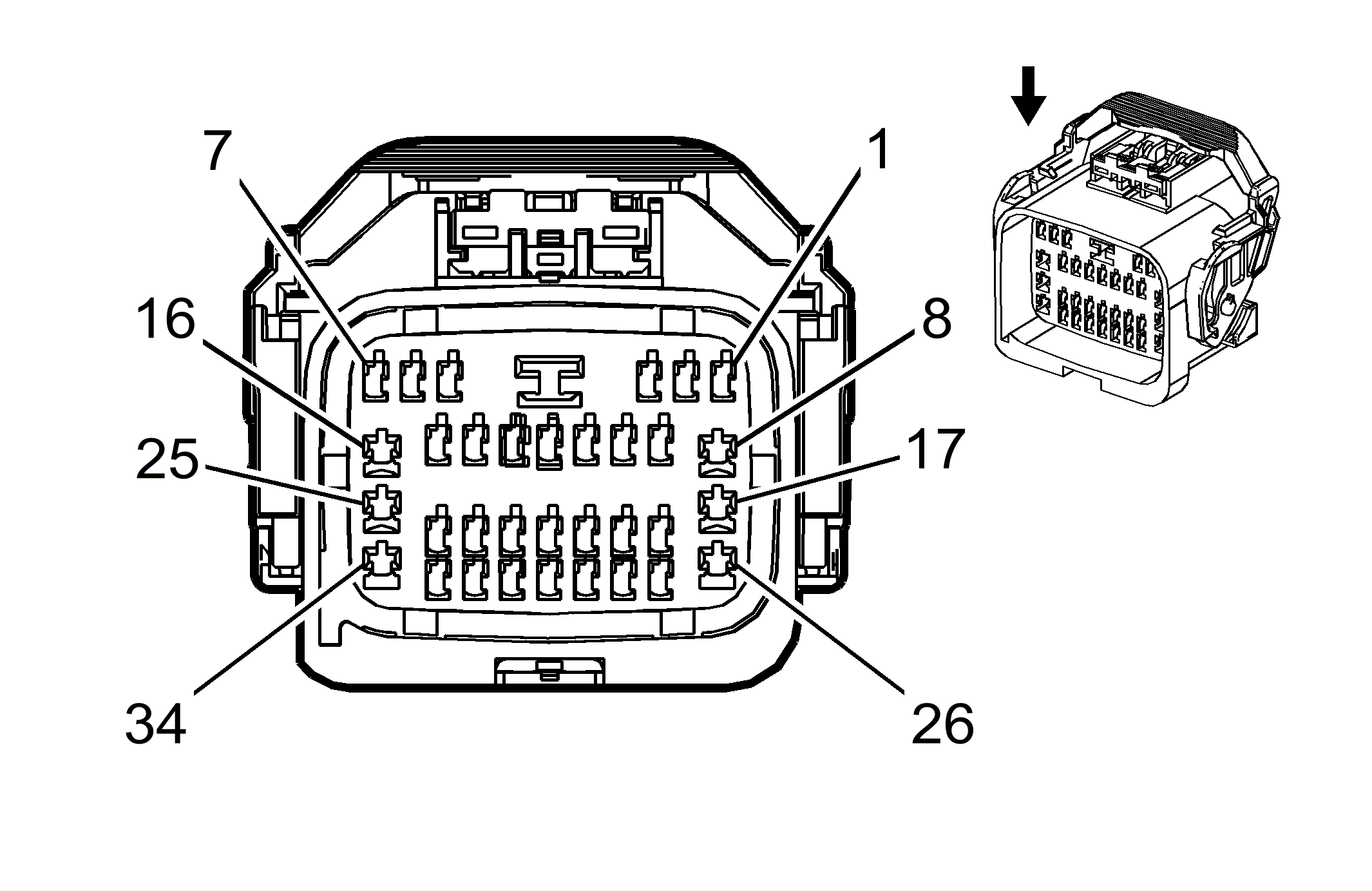

GM2444567

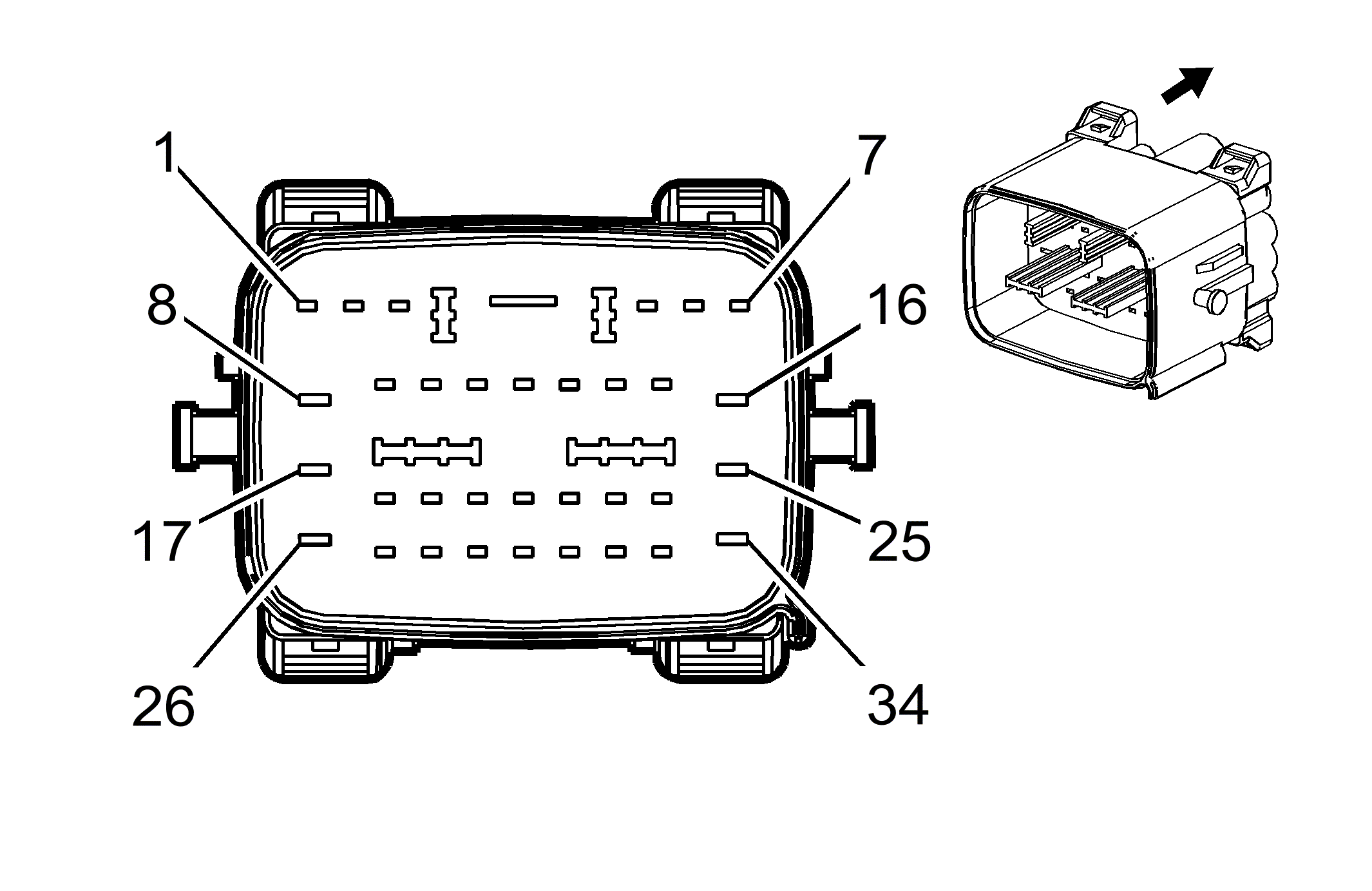

GM2444568
Connector Part Information
  • Harness Type: Engine
  • OEM Connector: 7283-9151-30
  • Service Connector: 19331924
  • Description: 34-Way F 1.5, 2.8, 6.3 Series, Sealed (BK)
 Connector Part Information
  • Harness Type: Body
  • OEM Connector: 7282-9150-30
  • Service Connector: 13583401
  • Description: 34-Way M 1.5, 2.8, 6.3 Series, Sealed (BK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I 13576370 J-35616-2A (GY) J-38125-11A Not Available Not Available Not Available Not Available
II 13579765 J-35616-35 (VT) J-38125-11A 7116-4150-02 Yazaki 9 E 1
III 13578918 J-35616-3 (GY) J-38125-11A Not Available Not Available Not Available Not Available
IV 13579765 J-35616-5 (PU) J-38125-11A 7114-4150-02 Yazaki 9 E 1
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 0.5 BK/WH 451 I FHS Signal Ground 1 0.8 BK/WH 451 III FHS
2 0.5 PK/BK 5293 I FHS+LEA Powertrain Main Relay Fused Supply 4 2 0.8 PK/BK 5293 III FHS
3 0.5 BN/WH 419 I - Check Engine Indicator Control 3 0.35 BN/WH 419 III -
4 - - - - - Not Occupied 4 - - - - -
5 0.5 VT 7446 I - Fuel Line Pressure Sensor Signal 5 0.35 VT 7446 III -
6 0.5 BN 7445 I - Fuel Line Pressure Sensor 5V Reference 6 0.35 BN 7445 III -
7 0.5 GY 7447 I - Fuel Line Pressure Sensor Low Reference 7 0.35 GY 7447 III -
8 0.5 WH 1579 II FHS+LEA Fuel Temperature/Composition Signal 8 0.5 WH 1579 IV FHS
9 0.5 D-BU 1161 I - Accelerator Pedal Position Signal 1 9 0.35 D-BU 1161 III -
10 0.5 L-BU 1162 I - Accelerator Pedal Position Signal 2 10 0.35 L-BU 1162 III -
11 0.5 WH/BK 1164 I - Accelerator Pedal Position 5V Reference 1 11 0.35 WH/BK 1164 III -
12 0.5 BN 1271 I - Accelerator Pedal Position Low Reference 1 12 0.35 BN 1271 III -
13 0.5 VT 1272 I - Accelerator Pedal Position Low Reference 2 13 0.35 VT 1272 III -
14 0.5 TN 1274 I - Accelerator Pedal Position 5V Reference 2 14 0.35 TN 1274 III -
15 0.5 L-GN/BK 3633 I LEA+VQN Camshaft Position Sensor Replicated Signal 15 0.35 L-GN/BK 3633 III VQN
16 0.5 VT 7575 II - Electric Variable Displacement Compressor Supply 16 0.5 VT 7575 IV -
17 0.5 D-GN/WH 465 II - Fuel Pump Primary Relay Control 17 0.35 D-GN/WH 465 IV -
18 0.35 TN/BK 2500 I - High Speed GMLAN Serial Data (+) 1 18 0.35 TN/BK 2500 III -
19 0.5 PK/WH 2092 I LEA Fuel Saver Mode (ECO) Switch Signal 19 0.35 PK/WH 2092 III -
20 0.5 GY 2709 I - Fuel Tank Pressure Sensor 5V Reference 20 0.35 GY 2709 III -
21 0.5 D-BU 1936 I - Primary Fuel Level Sensor Signal 21 0.35 D-BU 1936 III -
22 0.5 L-BU 1937 I - Secondary Fuel Level Sensor Signal 22 0.35 L-BU 1937 III -
23 0.5 D-GN 7493 I - High Speed GMLAN Serial Data (+)3 23 0.35 D-GN 7493 III -
24 0.5 L-GN 7494 I - High Speed GMLAN Serial Data (-)3 24 0.35 L-GN 7494 III -
25 0.5 PK 7574 II - Electric Variable Displacement Control 25 0.5 PK 7574 IV -
26 0.5 WH 1310 II - EVAP Canister Vent Solenoid Control 26 0.35 WH 1310 IV -
27 0.35 TN 2501 I - High Speed GMLAN Serial Data (-) 1 27 0.35 TN 2501 III -
28 0.5 GY 2093 I LEA Fuel Saver Mode (ECO) Switch 5V Reference 28 0.35 GY 2093 III -
29 0.5 TN 5380 I - Brake Position Sensor Signal 29 0.35 TN 5380 III -
30 0.5 GY 5381 I - Brake Position Sensor 5V Reference 30 0.35 GY 5381 III -
31 0.5 BN/WH 5382 I - Brake Position Sensor Low Reference 31 0.35 BN/WH 5382 III -
32 0.5 D-GN 890 I - Fuel Tank Pressure Sensor Signal 32 0.35 D-GN 890 III -
33 0.5 BN/WH 6281 I - Fuel Level Sensor Low Reference 33 0.35 BN/WH 6281 III -
34 0.35 L-BU 5986 II LEA Serial Data Communication Enable 34 0.35 L-BU 5986 IV -
