Driver Door Harness Routing

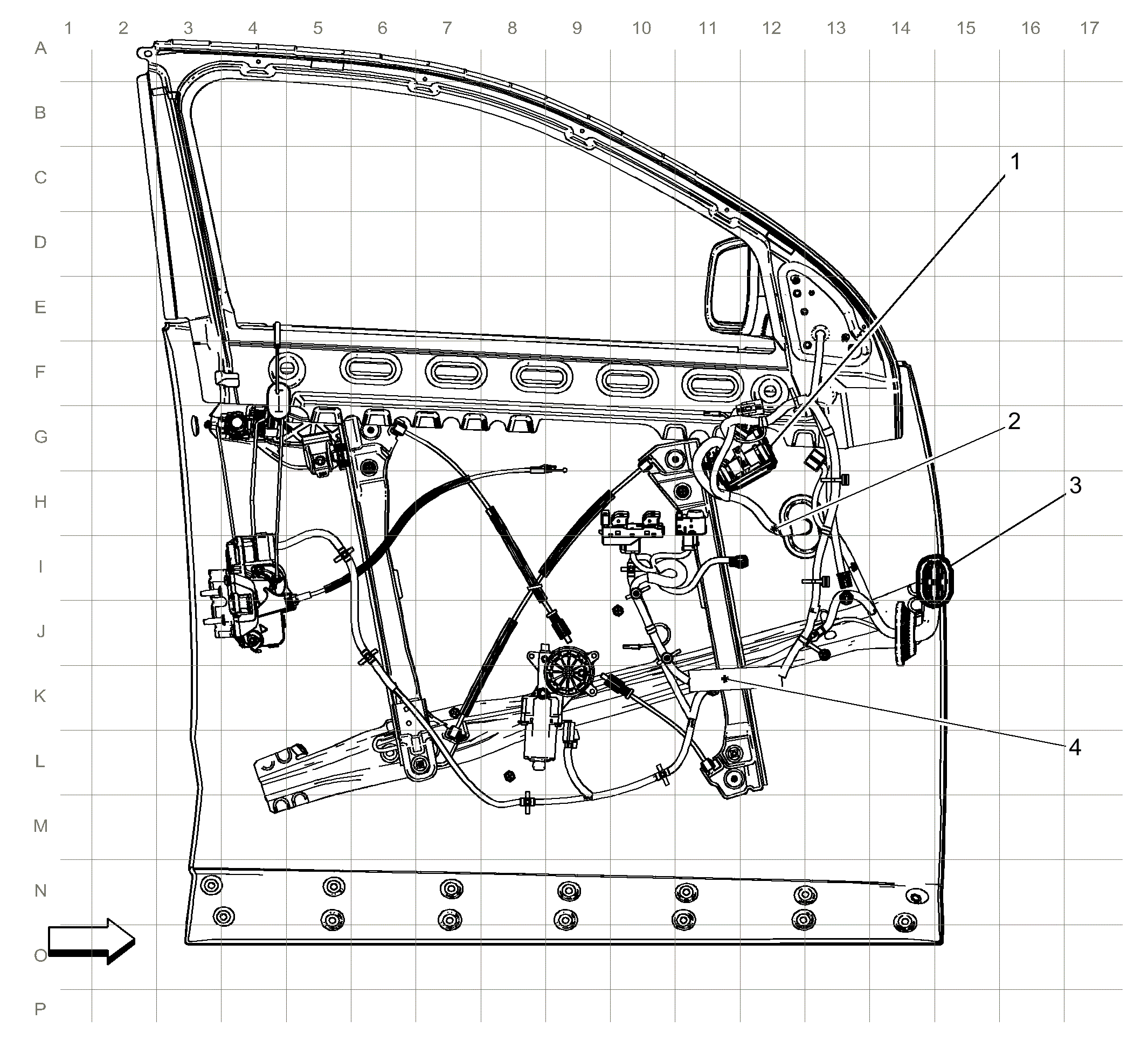

Fig 1: Driver Door Harness Routing
GM2910342Courtesy of GENERAL MOTORS COMPANY
Items
1: X505 X505 Driver Door Harness to Driver Door Trim Harness
2: J502
3: X500 X500 Body Harness to Driver Door Harness
4: J501
