X500 Body Harness to Driver Door Harness
|
|
|

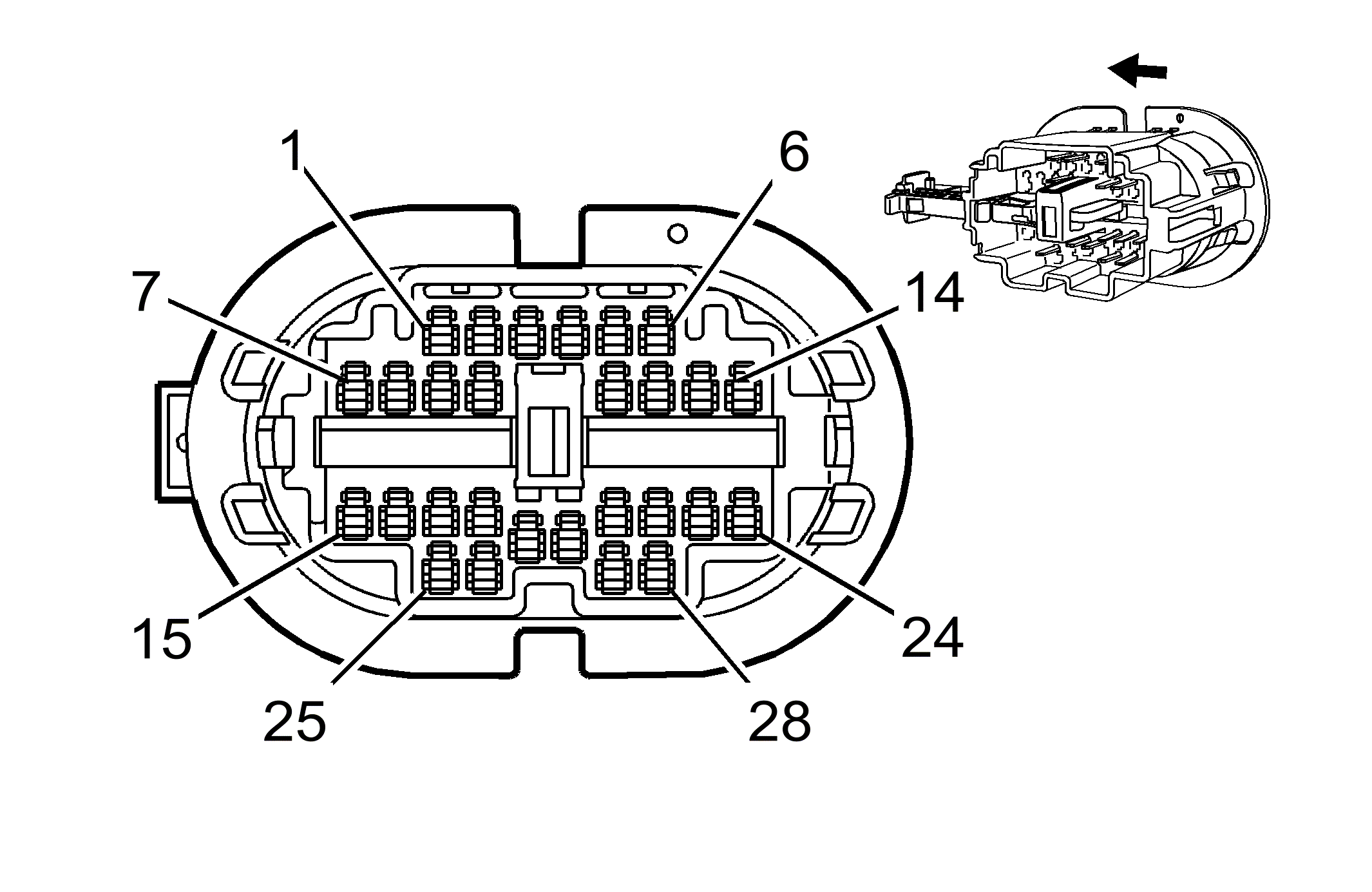

Connector Part Information
- Harness Type: Body
- OEM Connector: 12458-5128
- Service Connector: 13578592
- Description: 28-Way F 090 II Series, Sealed (WH)
|

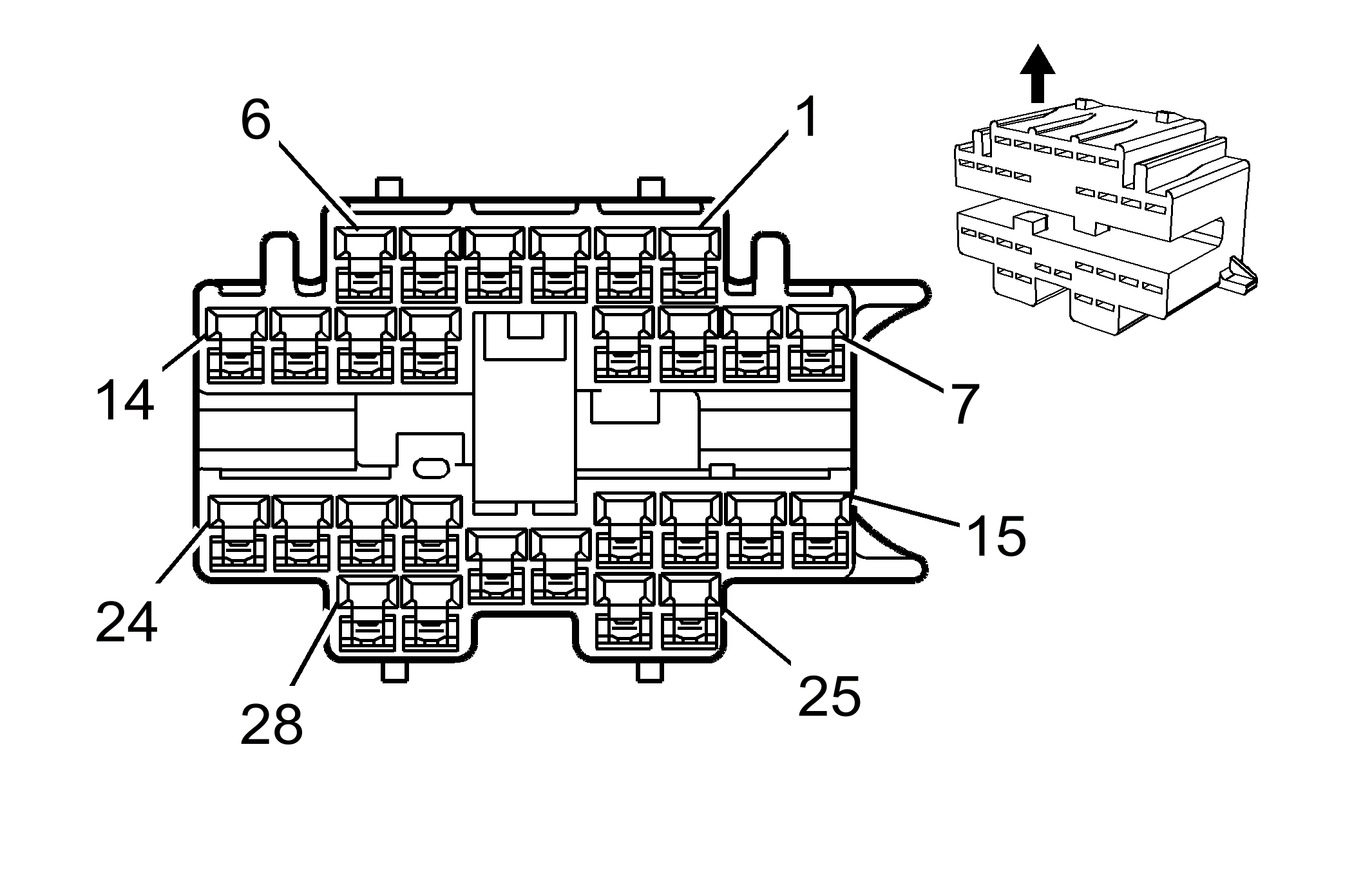

Connector Part Information
- Harness Type: Driver Door
- OEM Connector: 7182-1581
- Service Connector: Service by Harness - See Part Catalog
- Description: 28-Way M 090 II Series, Sealed (WH)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575272 |
J-35616-18 (BK) |
J-38125-553 |
7116-4020 |
Yazaki 11 |
E |
C |
| II |
13575276 |
J-35616-18 (BK) |
J-38125-553 |
7116-4022 |
Yazaki 11 |
4 |
A |
| III |
13587511 |
J-35616-18 (BK) |
J-38125-553 |
7116-4021 |
Yazaki 11 |
E |
A |
| IV |
Not Required |
J-35616-19 (BK) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.35 |
D-GN |
6134 |
I |
- |
Local Interconnect Network Serial Data Bus 3 |
1 |
0.35 |
D-GN |
6134 |
IV |
- |
| 2 |
0.35 |
PK |
5853 |
I |
UFT |
Driver Side Object Detection LED Signal 1 |
2 |
0.35 |
PK |
5853 |
IV |
UFT |
| 3 - 4 |
- |
- |
- |
- |
- |
Not Occupied |
3 - 4 |
- |
- |
- |
- |
- |
| 5 |
0.8 |
TN |
201 |
III |
- |
Left Front Speaker Control (+) 1 |
5 |
0.8 |
TN |
201 |
IV |
- |
| 6 |
- |
- |
- |
- |
- |
Not Occupied |
6 |
- |
- |
- |
- |
- |
| 7 |
0.8 |
GY |
118 |
III |
- |
Left Front Speaker Signal (-) 1 |
7 |
0.8 |
GY |
118 |
IV |
- |
| 8 |
0.35 |
VT/WH |
6628 |
I |
- |
Left Front Side Impact Sensing Module Low Reference |
8 |
0.35 |
VT/WH |
6628 |
IV |
- |
| 9 |
0.35 |
WH |
2132 |
I |
- |
Left Front Side Impact Sensing Module Signal |
9 |
0.35 |
WH |
2132 |
IV |
- |
| 10 |
- |
- |
- |
- |
- |
Not Occupied |
10 |
- |
- |
- |
- |
- |
| 11 |
0.35 |
YE |
6817 |
I |
- |
LED Backlight Dimming Control |
11 |
0.35 |
YE |
6817 |
IV |
- |
| 12 |
0.35 |
PK/BK |
780 |
I |
- |
Driver Door Lock Switch Lock Signal |
12 |
0.35 |
PK/BK |
780 |
IV |
- |
| 13 |
0.35 |
OG/BK |
781 |
I |
- |
Driver Door Lock Switch Unlock Signal |
13 |
0.35 |
OG/BK |
781 |
IV |
- |
| 14 |
0.35 |
WH |
7530 |
I |
AAB |
Local Interconnect Network Serial Data Bus 8 |
14 |
0.35 |
WH |
7530 |
IV |
AAB |
| 15 |
- |
- |
- |
- |
- |
Not Occupied |
15 |
- |
- |
- |
- |
- |
| 16 |
0.35 |
PK |
7557 |
I |
TSQ |
LED Ambient Lighting Control 1 |
16 |
0.35 |
PK |
7557 |
IV |
TSQ |
| 17 |
- |
- |
- |
- |
- |
Not Occupied |
17 |
- |
- |
- |
- |
- |
| 18 |
2 |
RD/WH |
1240 |
II |
- |
Battery Positive Voltage |
18 |
2 |
RD/WH |
1240 |
IV |
- |
| 19 |
0.35 |
OG |
2267 |
I |
DL8 |
Mirror Heating Element Control |
19 |
0.35 |
OG |
2267 |
IV |
DL8 |
| 20 |
- |
- |
- |
- |
- |
Not Occupied |
20 |
- |
- |
- |
- |
- |
| 21 |
0.5 |
RD/WH |
1940 |
I |
- |
Battery Positive Voltage |
21 |
0.5 |
RD/WH |
1940 |
IV |
- |
| 22 |
- |
- |
- |
- |
- |
Not Occupied |
22 |
- |
- |
- |
- |
- |
| 23 |
- |
- |
- |
- |
- |
Passenger Mirror Motor Up (+) Down (-) Control |
23 |
0.5 |
OG/BK |
3397 |
IV |
-AAB |
| 24 |
0.8 |
GY |
5911 |
III |
- |
Door Lock Actuator Lock Control 2 |
24 |
0.8 |
GY |
5911 |
IV |
- |
| 25 |
0.8 |
TN |
294 |
III |
- |
Door Lock Actuator Unlock Control |
25 |
0.8 |
TN |
294 |
IV |
- |
| 26 |
2 |
BK |
750 |
II |
- |
Ground |
26 |
2 |
BK |
750 |
IV |
- |
| 27 - 28 |
- |
- |
- |
- |
- |
Not Occupied |
27 - 28 |
- |
- |
- |
- |
- |
