Instrument Panel Center Compartment Replacement (Enclave)
Instrument Panel Center Compartment Replacement (Enclave)

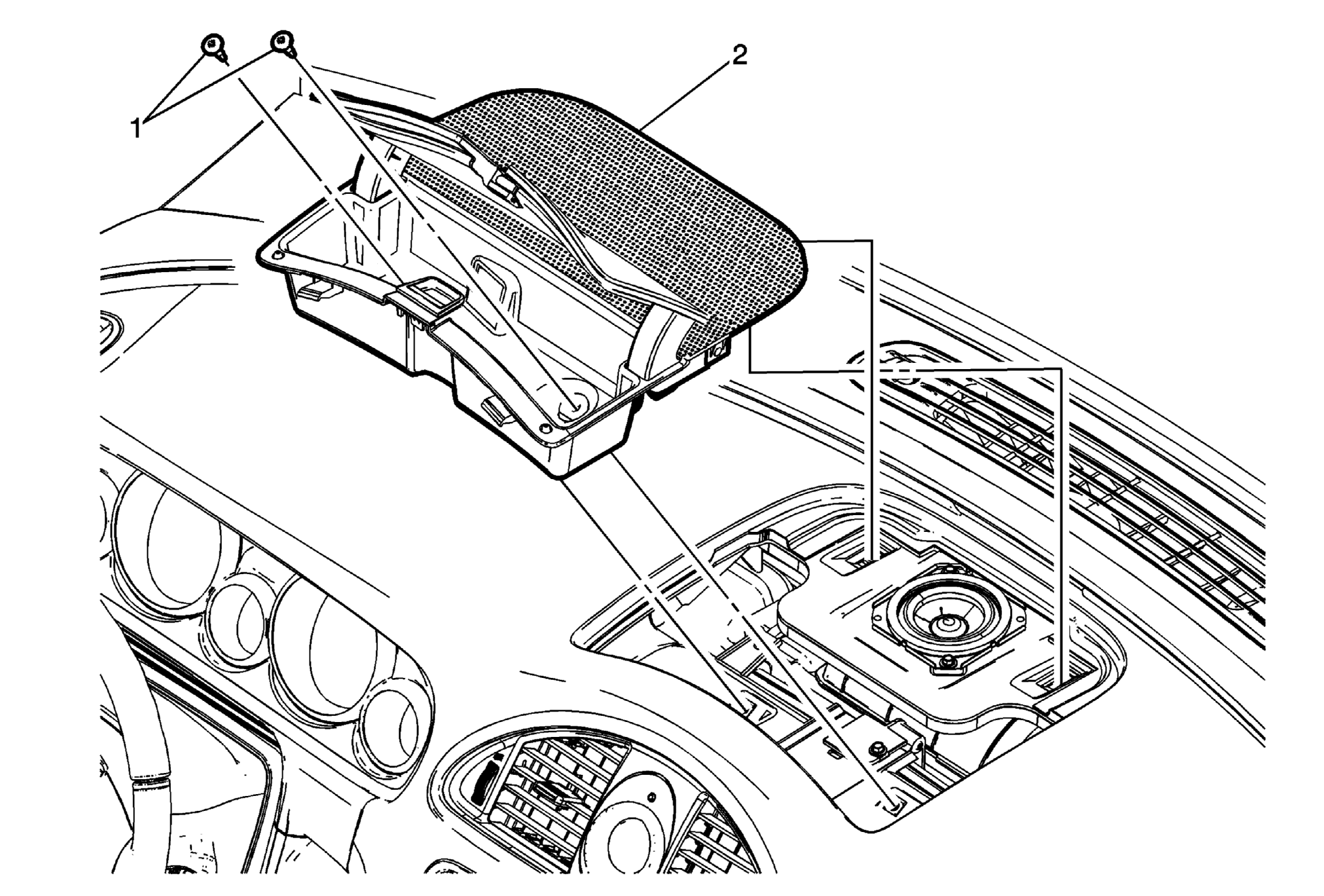

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the USB receptacle. Refer to USB Receptacle Replacement (Acadia/Traverse) . |
|
| 1 | Instrument Panel Center Compartment Screws Qty: (2)
CAUTION:
Refer to Fastener Caution
.
|
| 2 | Instrument Panel Center Compartment Assembly Procedure Use a flat-bladed plastic trim tool in order to release the instrument panel center compartment from the instrument panel. |
