USB Receptacle Replacement (Acadia/Traverse)
USB Receptacle Replacement (Acadia/Traverse)
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel center compartment. Refer to Instrument Panel Center Compartment Replacement (Acadia) , Instrument Panel Center Compartment Replacement (Traverse) . |
|

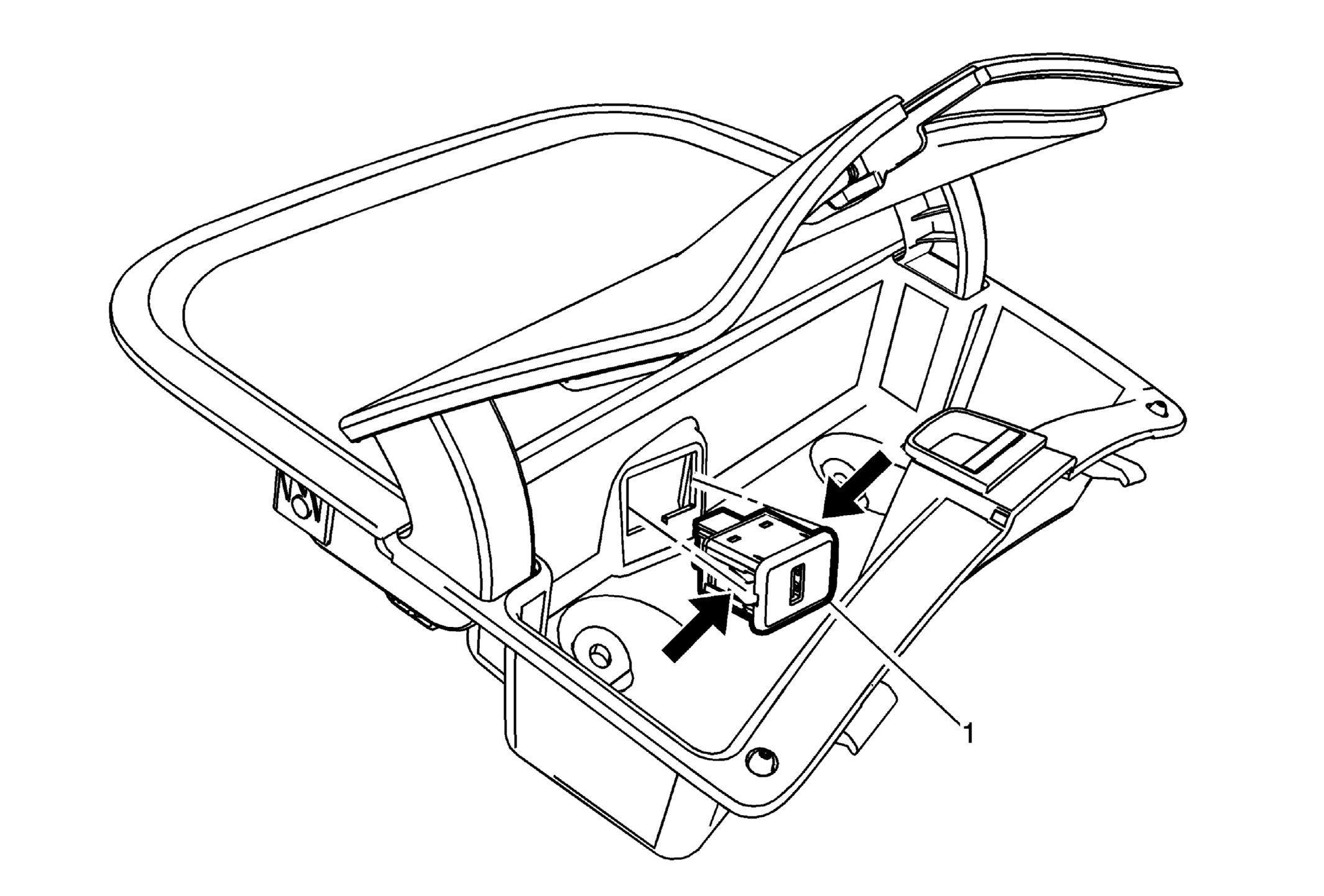

| 1 | USB Receptacle Procedure Depress the tabs on the receptacle to remove. |
