Automatic Transmission Control Indicator Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

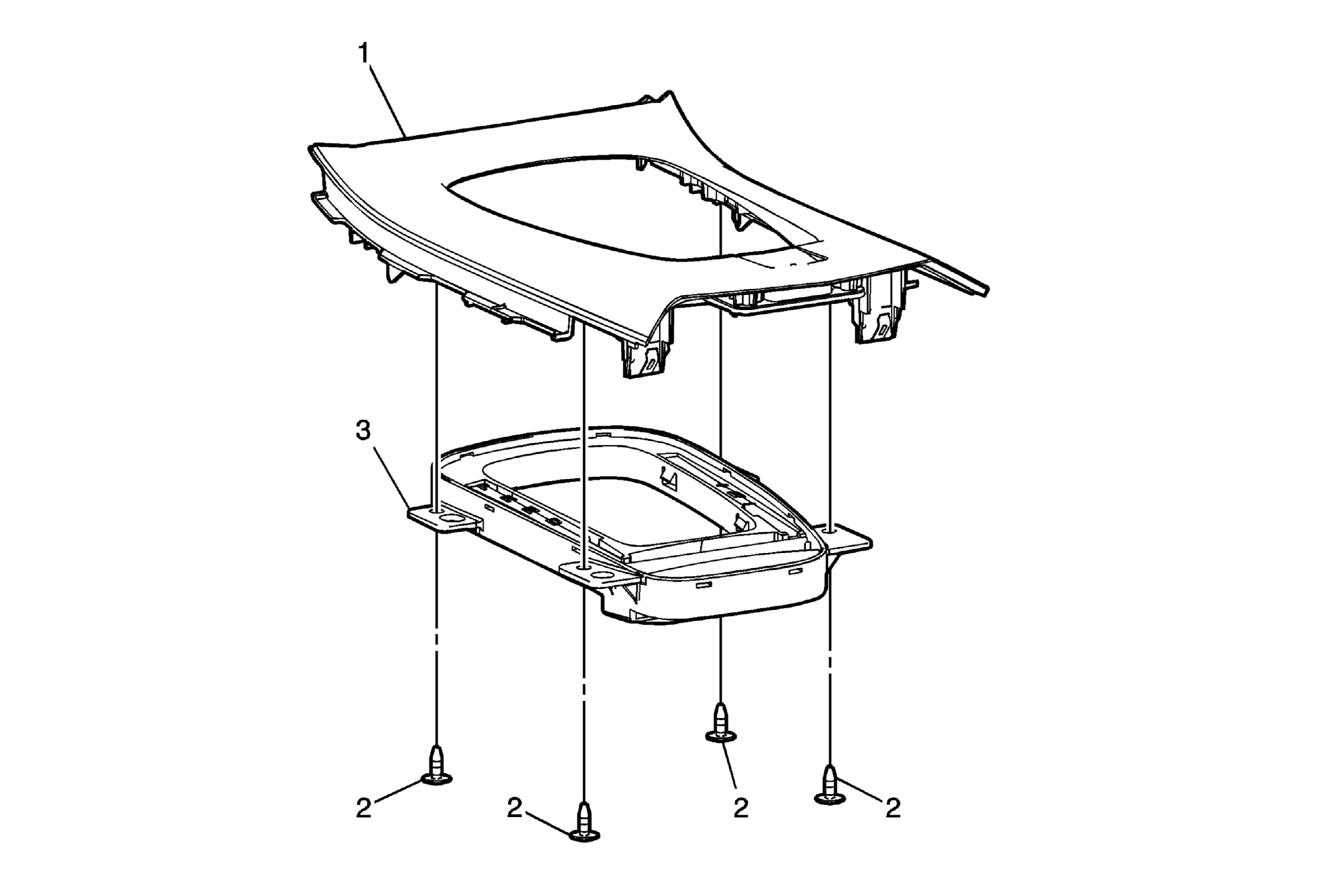

| Callout | Component Name |
|---|---|
| 1 | Front Floor Console Transmission Opening Trim Plate Refer to Front Floor Console Transmission Shift Opening Trim Plate Replacement (Automatic Transmission) or Front Floor Console Transmission Shift Opening Trim Plate Replacement (Manual Transmission) . |
| 2 | Automatic Transmission Control Indicator Screw (Qty: 4)
NOTE:
Refer to Fastener Notice
.
Tighten: 2.5 N.m (22 lb in) |
| 3 | Automatic Transmission Control Indicator Assembly |
