Front Floor Console Transmission Shift Opening Trim Plate Replacement (Automatic Transmission)

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

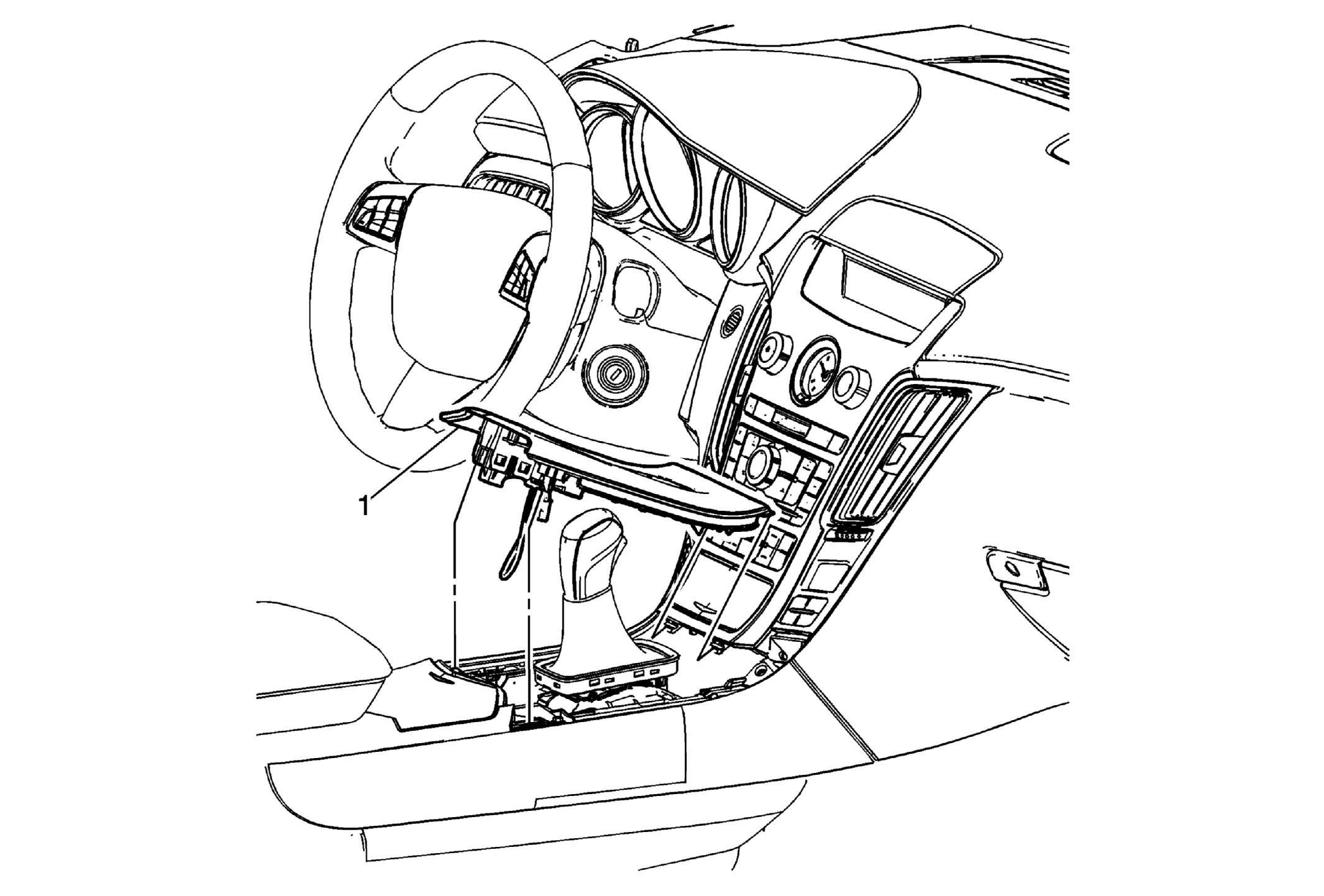

Fig 1: Front Floor Console Transmission Shift Opening Trim Plate Replacement (Automatic Transmission)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the right and left front floor console appliques. Refer to Front Floor Console Applique Replacement . Remove the transmission control boot. Refer to Transmission Control Lever Knob Replacement .
1	Front Floor Console Transmission Shifter Trim Plate Assembly Procedure Use a flat bladed plastic trim tool in order to release the retaining clips securing the front floor console transmission shift plate to the console assembly. Disconnect the electrical connections. When replacing the front floor console transmission shift plate assembly, transfer all necessary components.

Callout

Component Name

Preliminary Procedure

Remove the right and left front floor console appliques. Refer to Front Floor Console Applique Replacement .
Remove the transmission control boot. Refer to Transmission Control Lever Knob Replacement .

Front Floor Console Transmission Shifter Trim Plate Assembly

Procedure

Use a flat bladed plastic trim tool in order to release the retaining clips securing the front floor console transmission shift plate to the console assembly.
Disconnect the electrical connections.
When replacing the front floor console transmission shift plate assembly, transfer all necessary components.
