Front Floor Console Applique Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

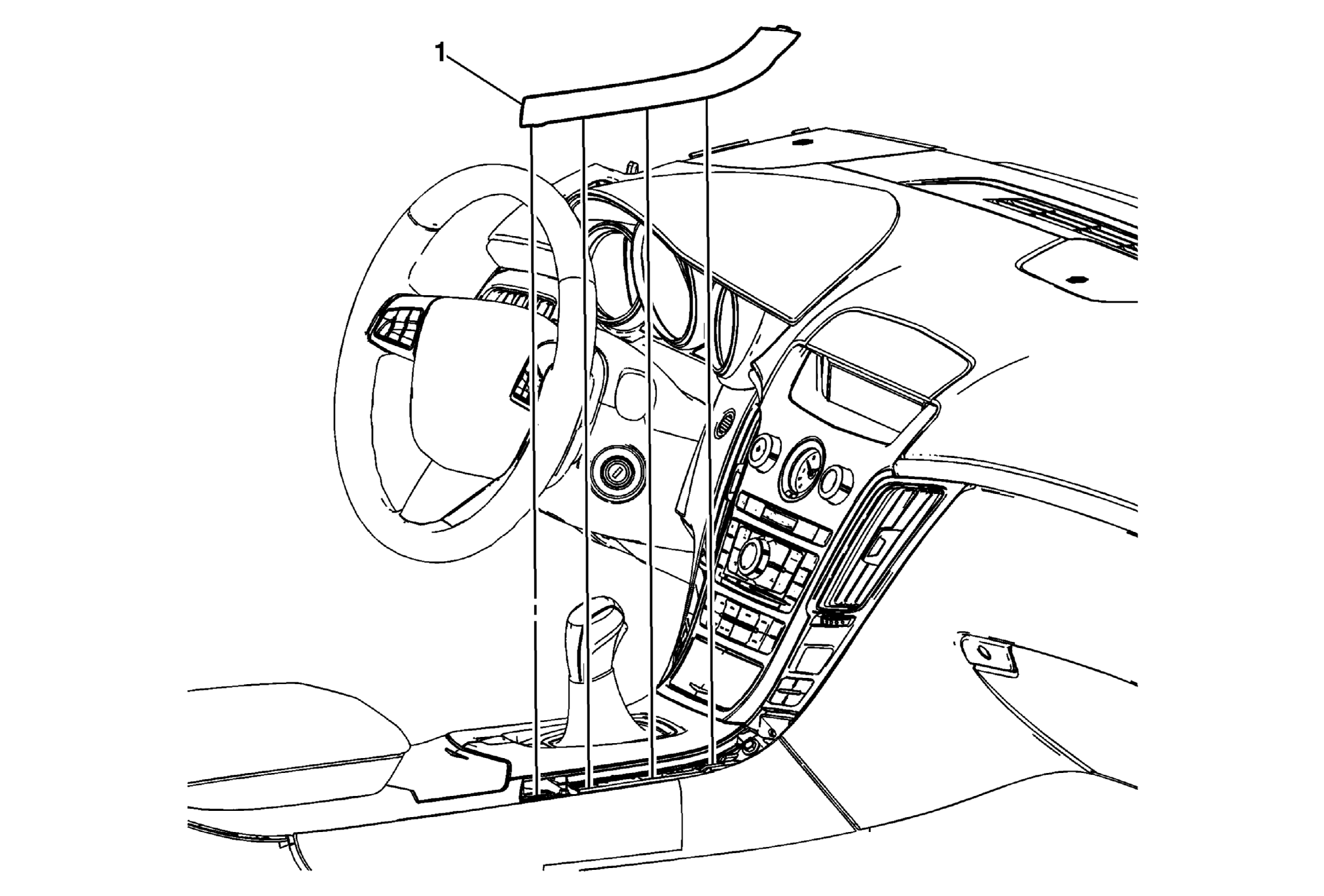

| Callout |
Component Name |
| 1 |
Front Floor Console Applique
Procedure:
Use a flat bladed plastic trim tool in order to release the retaining clips securing the front floor console applique to the console assembly. |
