Radio Speaker Amplifier Replacement (With UQA)
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

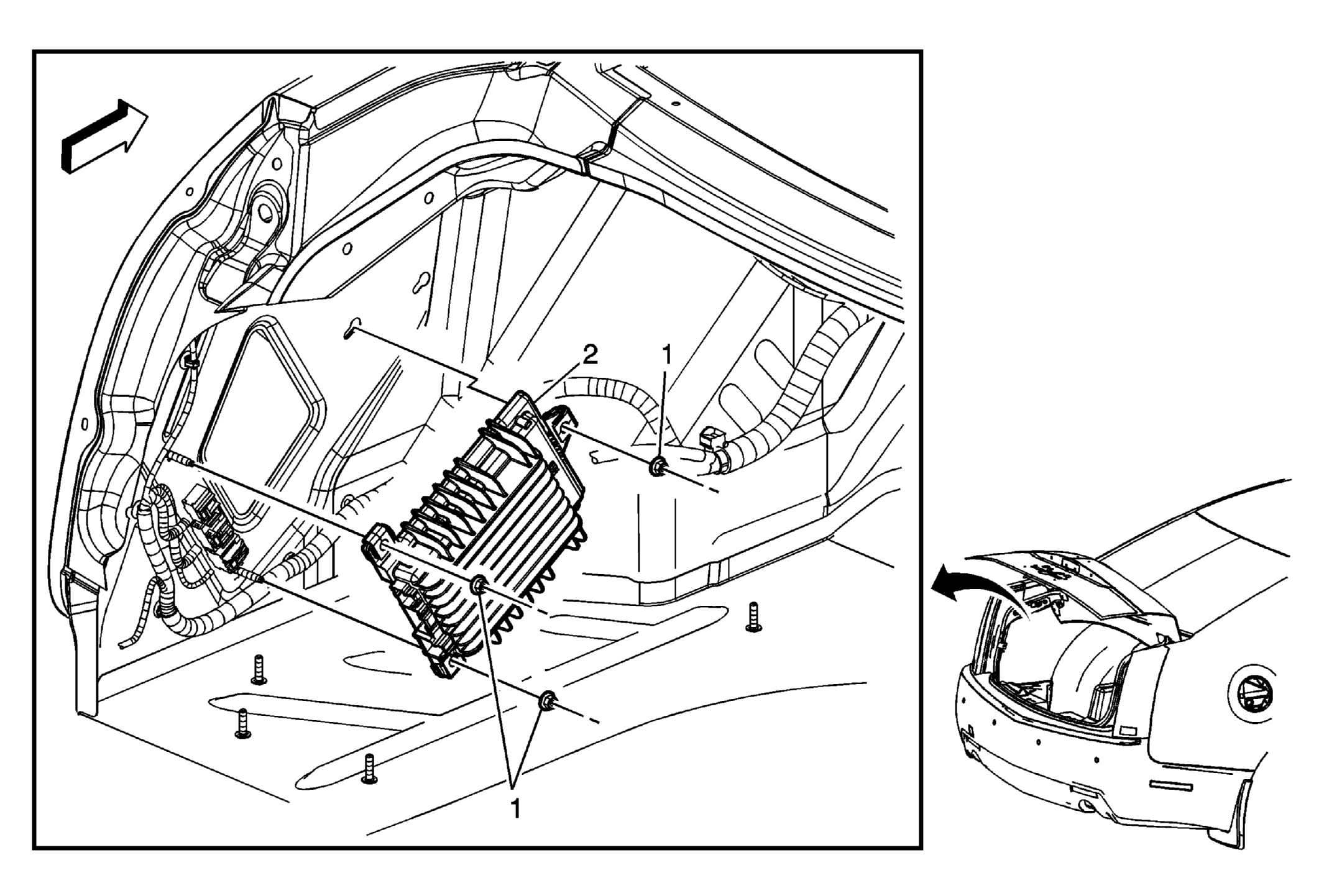

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the rear compartment side trim panel. Refer to Rear Compartment Side Trim Panel Replacement . |
|
| 1 | Radio Speaker Amplifier Nut (Qty: 3)
NOTE:
Refer to Fastener Notice
.
Tighten: 6 N.m (54 lb in) |
| 2 | Radio Speaker Amplifier Assembly Procedure: Disconnect the electrical connections. |
