Rear Compartment Side Trim Panel Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

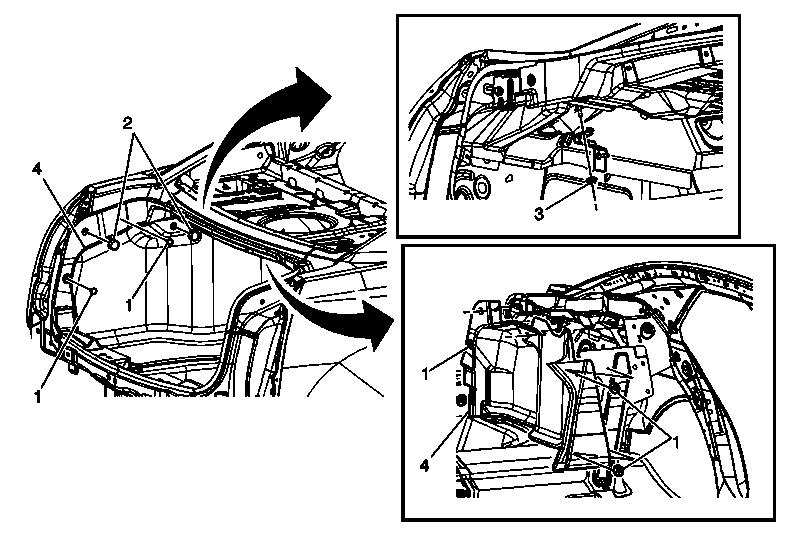

Fig 1: Identifying Rear Compartment Side Panel Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear seat back. Refer to Rear Seat Back Replacement . Remove the rear compartment sill plate. Refer to Rear Compartment Sill Trim Plate Replacement .
1	Rear Compartment Side Trim Retainer (Qty: 14)
2	Cargo Net Retainer (Qty: 4)
3	Rear Compartment Side Trim Nut (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 3 N.m (27 lb in)
4	Rear Compartment Side Trim (Qty: 2)
