Display Clock Replacement (Enclave)
Display Clock Replacement (Enclave)
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel center air outlet. Refer to Instrument Panel Center Air Outlet Replacement (Acadia) , Instrument Panel Center Air Outlet Replacement (Enclave) or Instrument Panel Center Air Outlet Replacement (Traverse) . |
|

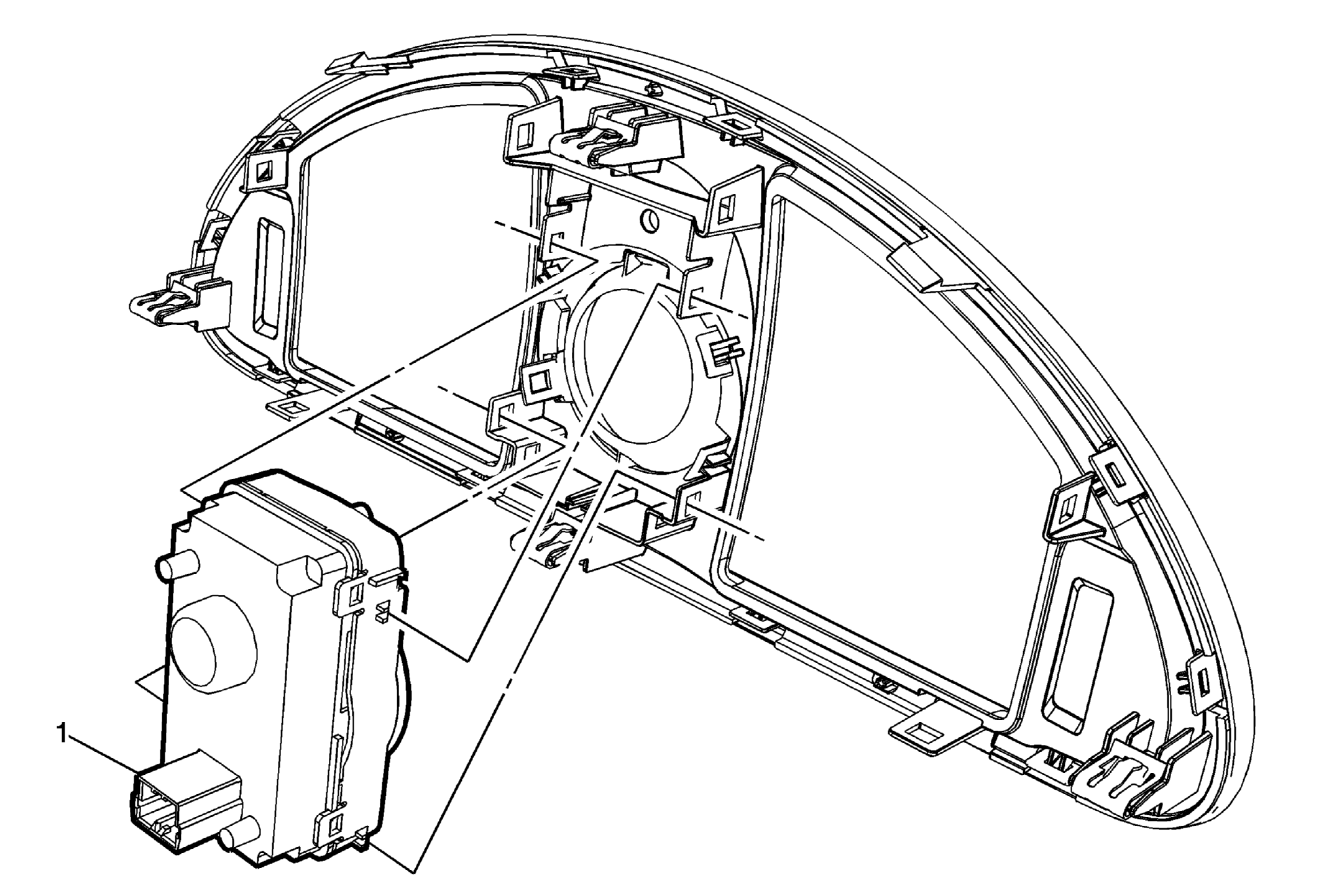

| 1 | Clock Assembly Procedure Unsnap the clock assembly from the trim plate. |
