Instrument Panel Center Air Outlet Replacement (Traverse)
Instrument Panel Center Air Outlet Replacement (Traverse)

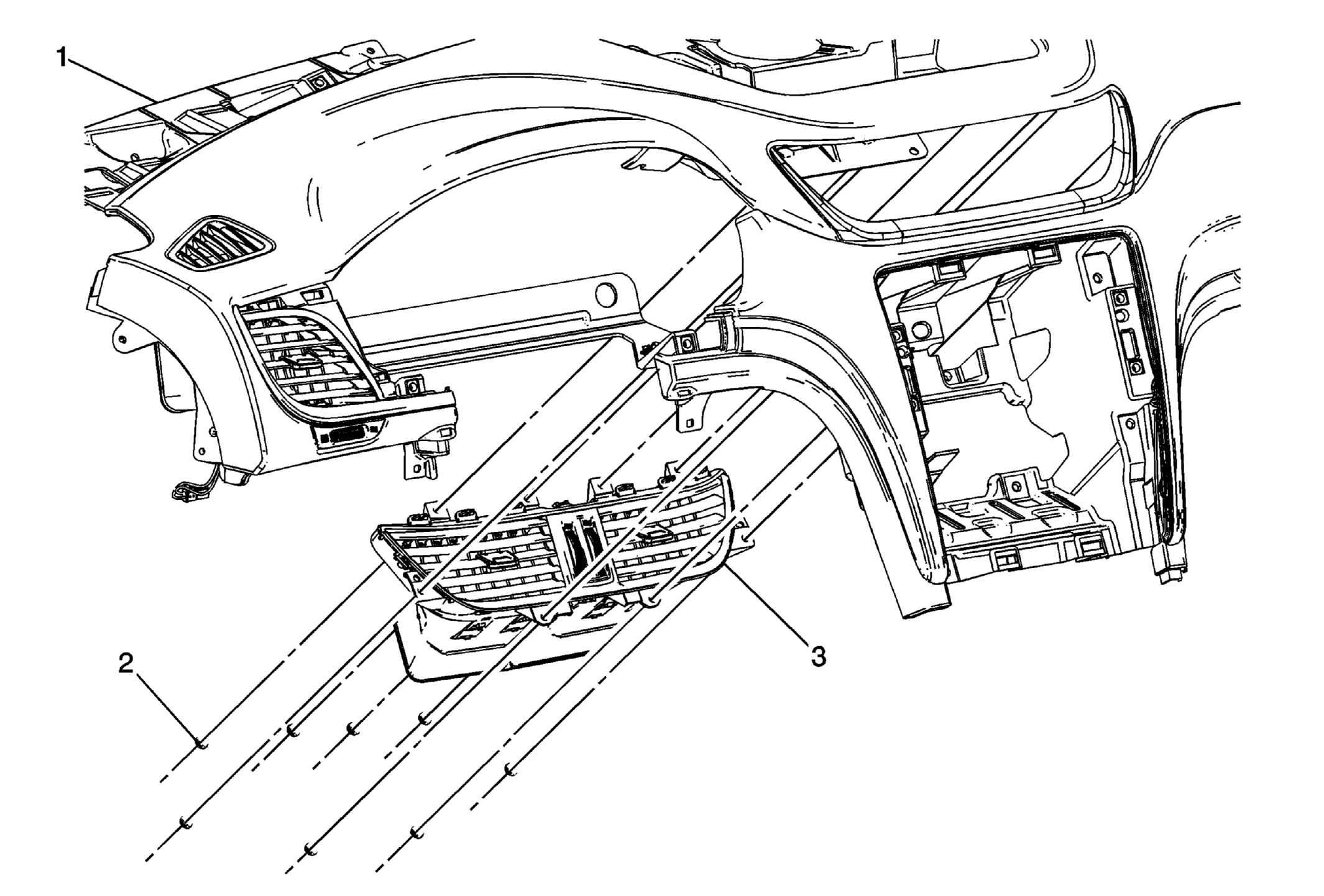

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Trim Pad. Refer to Instrument Panel Trim Pad Replacement (Acadia w/RPO UV6) , Instrument Panel Trim Pad Replacement (Acadia w/o RPO UV6) , Instrument Panel Trim Pad Replacement (Enclave) or Instrument Panel Trim Pad Replacement (Traverse) . |
| 2 | Pal Nuts (Qty: 8) Procedure Tighten the pal nuts until fully seated but not stripped |
| 3 | Instrument Panel Center Air Outlet Assembly |
