Quarter Lower Rear Trim Panel Replacement (Traverse with TB5)

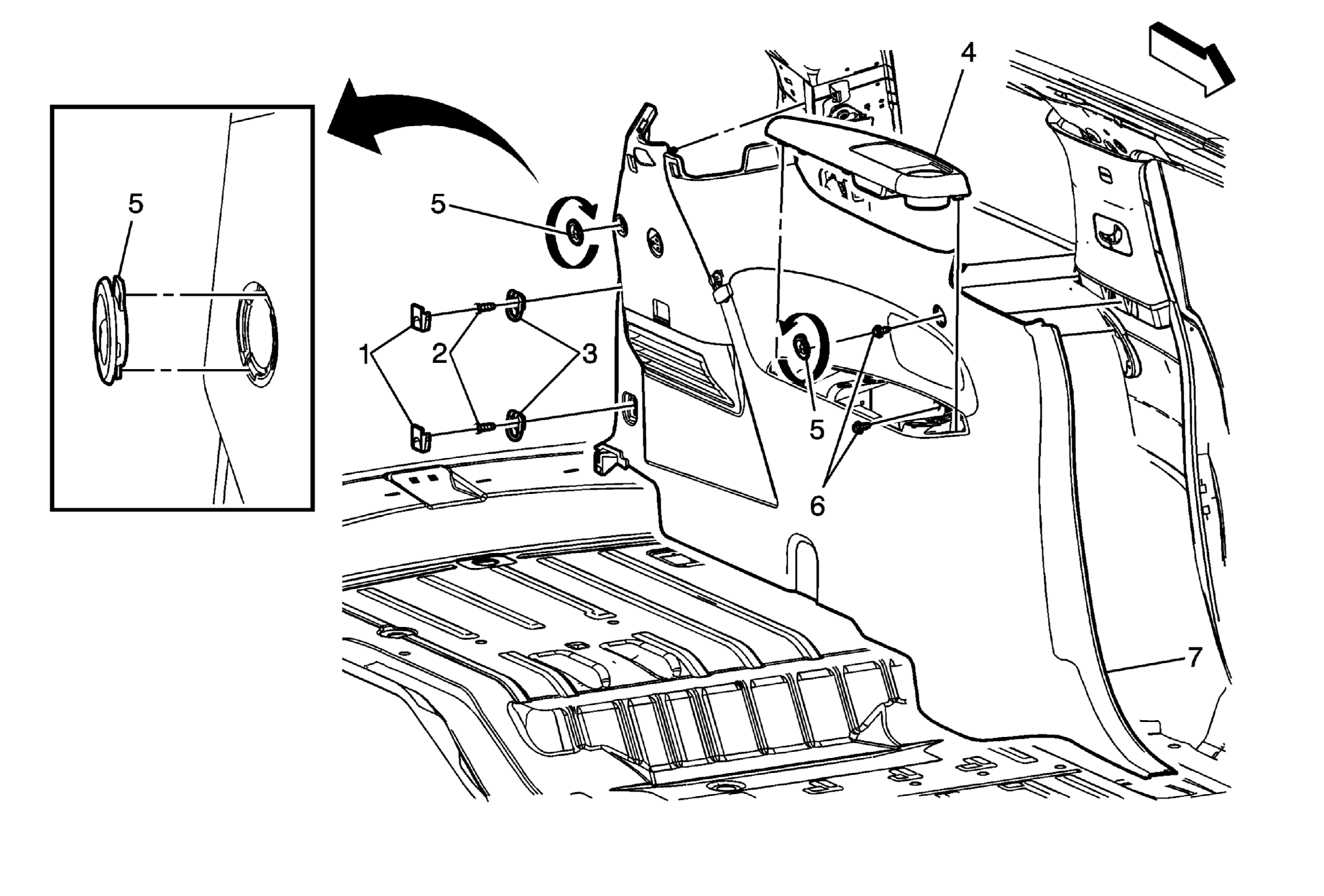

Fig 1: Quarter Lower Rear Trim Panel (Traverse With TB5)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Move the rear seat to the full forward position. Remove the rear number 2 seat . Refer to 3rd Row Seat Replacement . Remove the rear quarter upper trim panel. Refer to Quarter Upper Trim Panel Replacement (TB5) . Disconnect the liftgate actuator rod from the liftgate. Refer to Liftgate Actuator Rod Replacement . Disconnect the rear seat number 2 shoulder belt anchor bolt. Refer to Rear Seat Number 2 Retractor Side Belt Replacement . Remove the liftgate door sill plate. Refer to Liftgate Door Sill Plate Replacement (Traverse) .
1	Cargo Tie Down Loop Bolt Cap (Qty: 2)
2	Cargo Tie Down Loop Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 3 N.m (27 lb in)
3	Cargo Tie Down Loop (Qty: 2)
4	Body Side Trim Panel Armrest Procedure Pull upward on the armrest to disengage the retainer clips.
5	Cargo Screen Retainer Assembly (Qty: 2) Procedure Turn the left front and right rear cargo screen retainer counterclockwise one quarter turn to disengage the 2 integral tabs. Turn the left rear and right front cargo screen retainer clockwise one quarter turn to disengage the 2 integral tabs.
6	Rear Quarter Lower Trim Panel Bolt Tighten 3 N.m (27 lb in)
7	Rear Quarter Lower Trim Panel Assembly Procedure Pull outward to disengage the trim panel retainers. Disconnect the electrical connectors.
