3rd Row Seat Replacement
3rd Row Seat Replacement

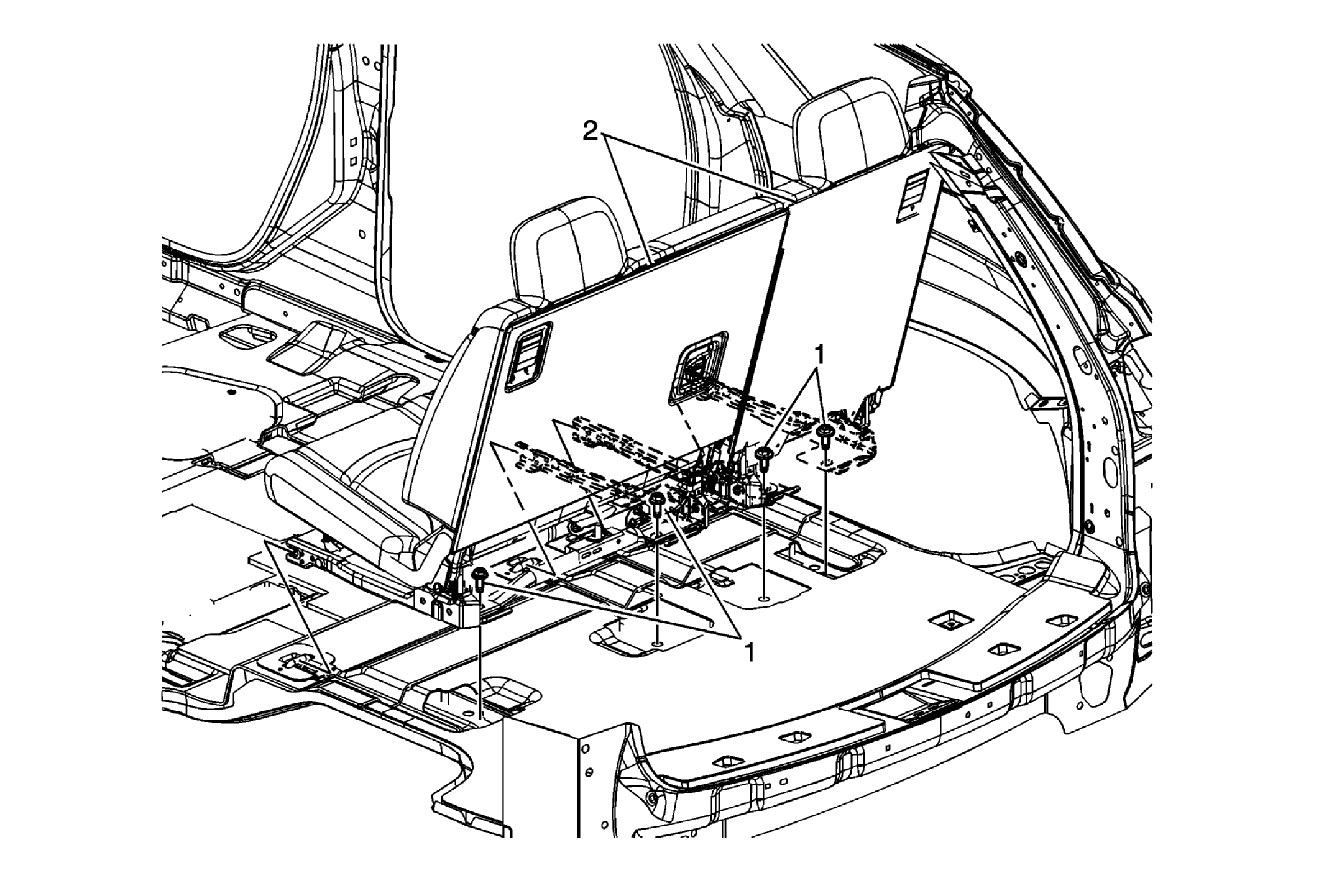

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear storage compartment. Refer to Rear Storage Compartment Replacement . (If equipped) |
|
| 1 | Rear Seat No. 2 Assembly Bolt (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 55 N.m (41 lb ft) |
| 2 | Rear Seat No. 2 Assembly (Qty: 2) TIP: Lift the seat upward at the rear of the seat and slide the seat rearward to disengage the adjuster hooks holding the seat to the floor pan. |
