Body Lock Pillar Upper Trim Panel Replacement

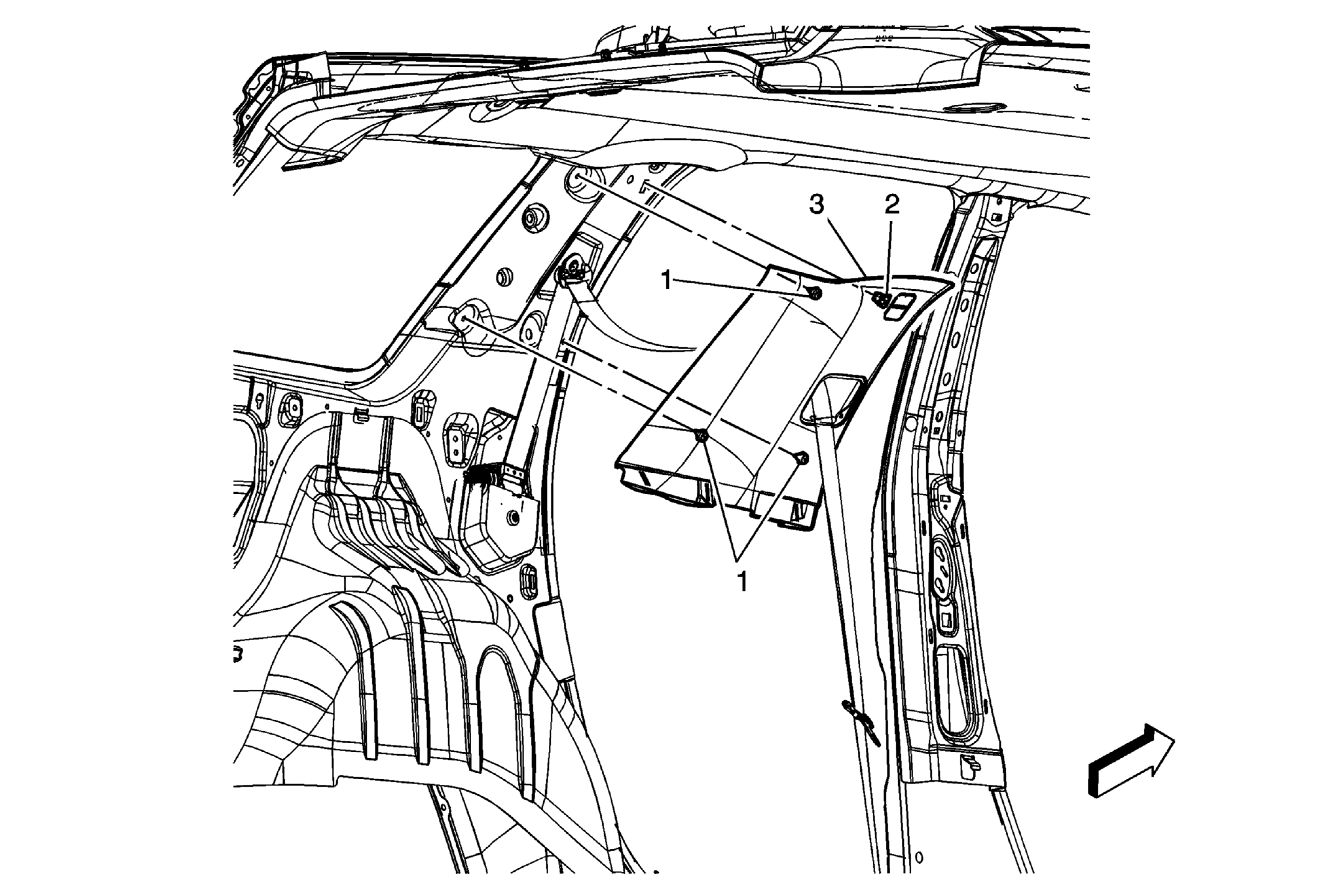

Fig 1: Identifying Body Lock Pillar Upper Trim Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the seat belt anchor bolt. Refer to Seat Belt Retractor Replacement - No. 1 Rear . Remove the rear quarter lower trim panel. Refer to Quarter Lower Rear Trim Panel Replacement (Acadia with TB5) , Quarter Lower Rear Trim Panel Replacement (Traverse with TB5) , Quarter Lower Rear Trim Panel Replacement (Traverse with TB4) , Quarter Lower Rear Trim Panel Replacement (Enclave with TB5) , Quarter Lower Rear Trim Panel Replacement (Acadia with TB4) , Quarter Lower Rear Trim Panel Replacement (Enclave with TB4) .
1	Body Lock Upper Trim Panel Retainer (Qty: 3)
2	Body Lock Upper Trim Panel Clip
3	Body Lock Upper Trim Panel Assembly TIP: Route the seat belt through the trim panel.
