Front Floor Console Accessory Housing Replacement (Enclave)

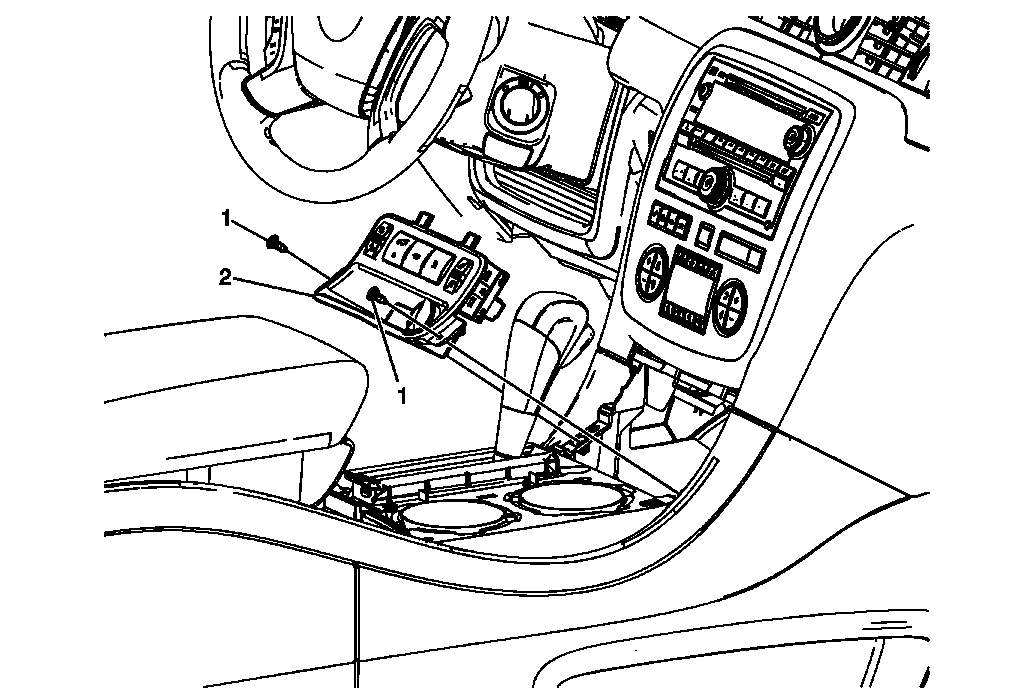

Fig 1: Identifying Front Floor Console Accessory Switch Mounting Plate (Enclave)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console accessory trim plate. Refer to Front Floor Console Accessory Trim Plate Replacement (Enclave) .
1	Front Floor Console Accessory Housing Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Front Floor Console Accessory Housing Assembly Procedure Disconnect the electrical connectors. When replacing the front floor console accessory housing assembly, transfer all necessary components.

Callout

Component Name

Preliminary Procedure
Remove the front floor console accessory trim plate. Refer to Front Floor Console Accessory Trim Plate Replacement (Enclave) .

Front Floor Console Accessory Housing Screw (Qty: 2)

CAUTION:

Tighten
2 N.m (18 lb in)

Front Floor Console Accessory Housing Assembly

Procedure

Disconnect the electrical connectors.
When replacing the front floor console accessory housing assembly, transfer all necessary components.
