Front Floor Console Accessory Trim Plate Replacement (Enclave)

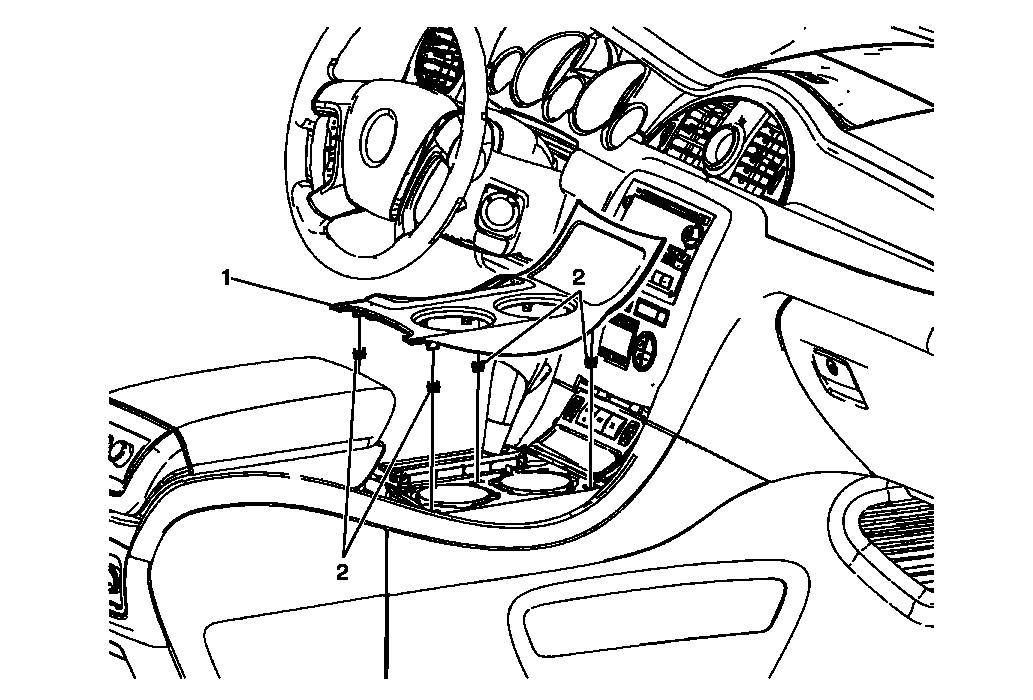

Fig 1: Identifying Front Floor Console Accessory Trim Plate (Enclave)

Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Accessory Trim Plate Replacement (Enclave)

Callout	Component Name
1	Front Floor Console Accessory Trim Plate Assembly Procedure  Use a flat bladed plastic trim tool in order to release the console accessory trim plate from the console assembly.
2	Retainer Clips (Qty: 5)
