Instrument Panel Compartment Trim Plate Replacement (Traverse)

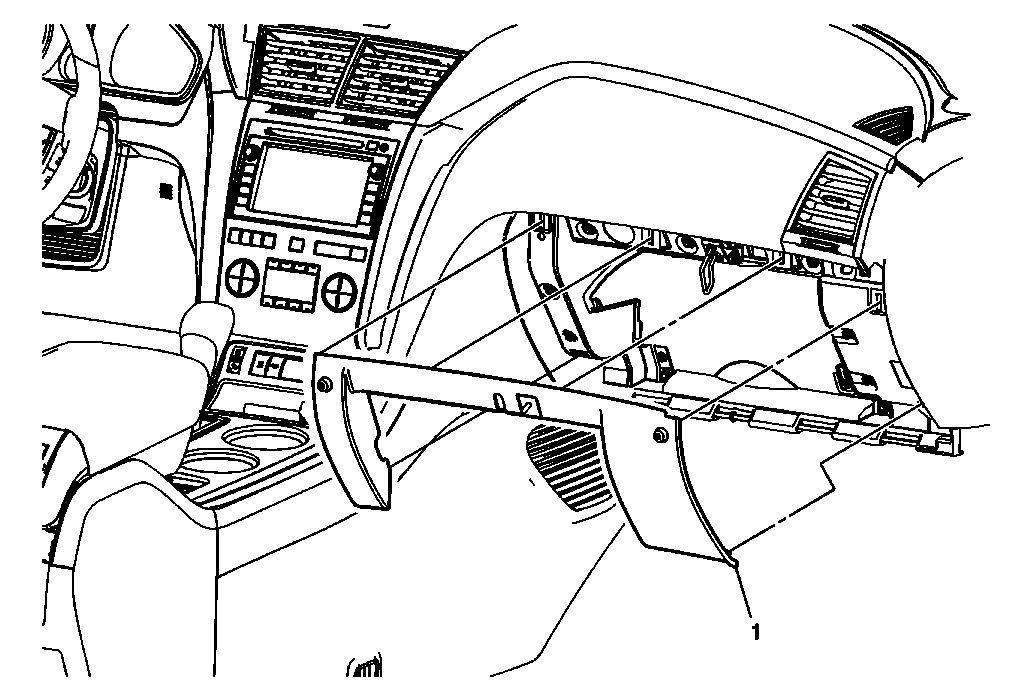

Fig 1: View Of Instrument Panel Compartment Trim Plate (Traverse)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the instrument panel compartment assembly. Refer to Instrument Panel Compartment Replacement (Acadia) , Instrument Panel Compartment Replacement (Traverse) , Instrument Panel Compartment Replacement (Enclave) . Remove the instrument panel compartment access hole cover. Refer to Instrument Panel Compartment Access Hole Cover Replacement (Traverse) , Instrument Panel Compartment Access Hole Cover Replacement (Acadia) , Instrument Panel Compartment Access Hole Cover Replacement (Enclave) .
1	Instrument Panel Compartment Trim Plate Assembly Procedure Grasp the compartment trim plate and pull rearward releasing the trim plate from the instrument panel assembly. Disconnect the electrical connections, if applicable. When replacing the instrument panel compartment trim plate, transfer all necessary components.

Callout

Component Name

Preliminary Procedure

Instrument Panel Compartment Trim Plate Assembly

Procedure

Grasp the compartment trim plate and pull rearward releasing the trim plate from the instrument panel assembly.
Disconnect the electrical connections, if applicable.
When replacing the instrument panel compartment trim plate, transfer all necessary components.
