Instrument Panel Compartment Trim Plate Replacement (Enclave)

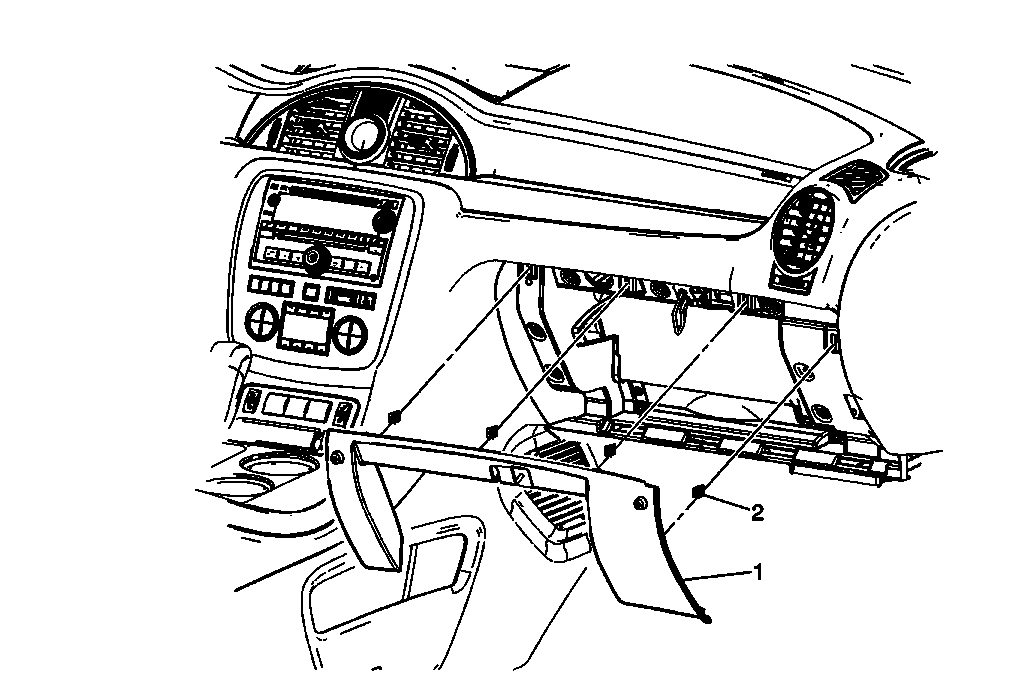

Fig 1: Identifying Instrument Panel Compartment Trim Plate (Enclave)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the instrument panel compartment assembly. Refer to Instrument Panel Compartment Replacement (Acadia) , Instrument Panel Compartment Replacement (Traverse) , Instrument Panel Compartment Replacement (Enclave) .
1	Instrument Panel Compartment Trim Plate Assembly Procedure Disconnect the electrical connections. When replacing the instrument panel compartment trim plate, transfer all necessary components.
2	Retainer Clip (Qty: 4)

Callout

Component Name

Instrument Panel Compartment Trim Plate Assembly

Procedure

Disconnect the electrical connections.
When replacing the instrument panel compartment trim plate, transfer all necessary components.

Retainer Clip (Qty: 4)
