Instrument Panel Center Compartment Replacement (Acadia)
Instrument Panel Center Compartment Replacement (Acadia)

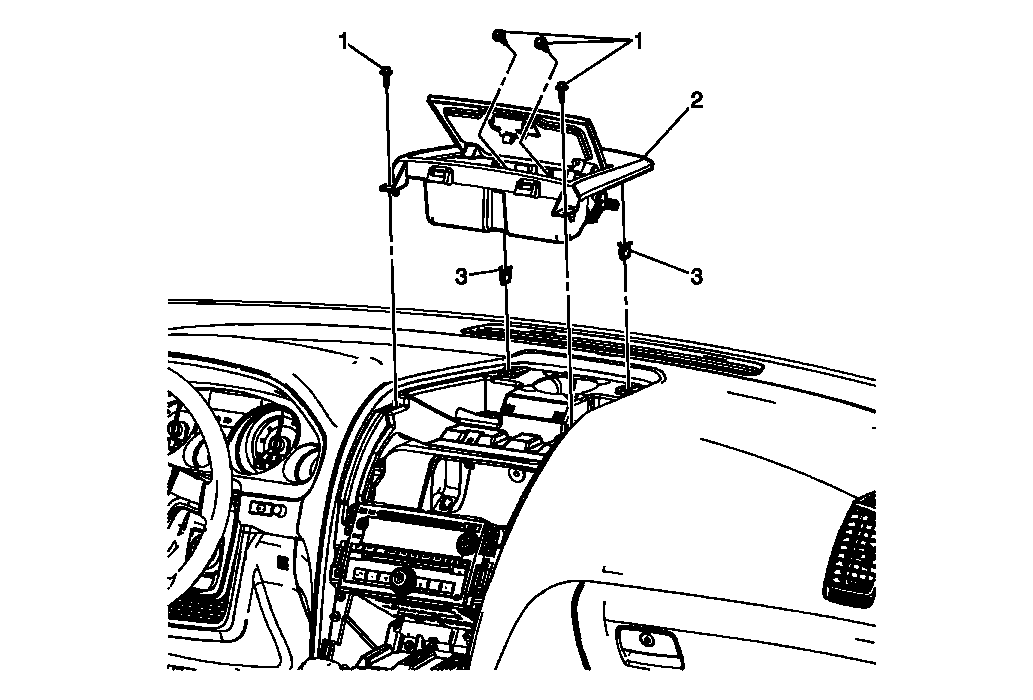

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement (Acadia) , Instrument Panel Accessory Trim Plate Replacement (Enclave) , Instrument Panel Accessory Trim Plate Replacement (Traverse) . |
|
| 1 | Instrument Panel Center Compartment Screw (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 2 N.m (18 lb in) |
| 2 | Instrument Panel Center Compartment Assembly |
| 3 | Retainer Clip (Qty: 2) |
