Instrument Panel Accessory Trim Plate Replacement (Acadia)

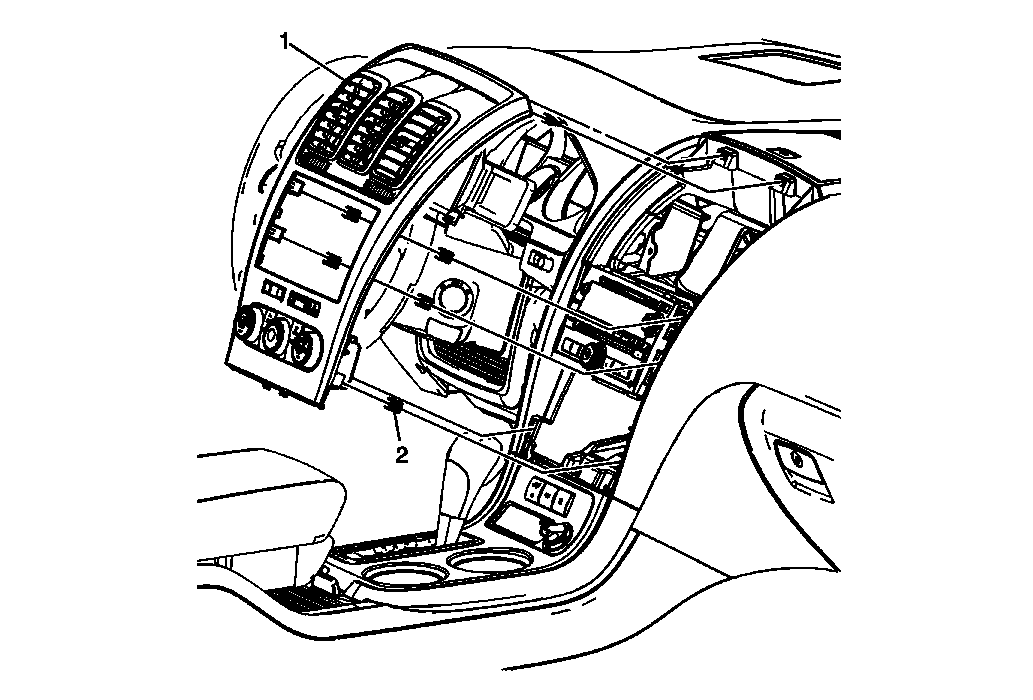

Fig 1: Identifying Instrument Panel Accessory Trim Plate (Acadia)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Accessory Trim Plate Assembly Procedure Use a flat-bladed plastic trim tool in order to release the accessory trim plate from the instrument panel assembly. Disconnect the electrical connections. When replacing the accessory trim plate, transfer all necessary components.
2	Retainer Clip (Qty: 8)

Callout

Component Name

Accessory Trim Plate Assembly

Procedure

Use a flat-bladed plastic trim tool in order to release the accessory trim plate from the instrument panel assembly.
Disconnect the electrical connections.
When replacing the accessory trim plate, transfer all necessary components.

Retainer Clip (Qty: 8)
