Front Floor Console Extension Panel Replacement - Right Side (Traverse)

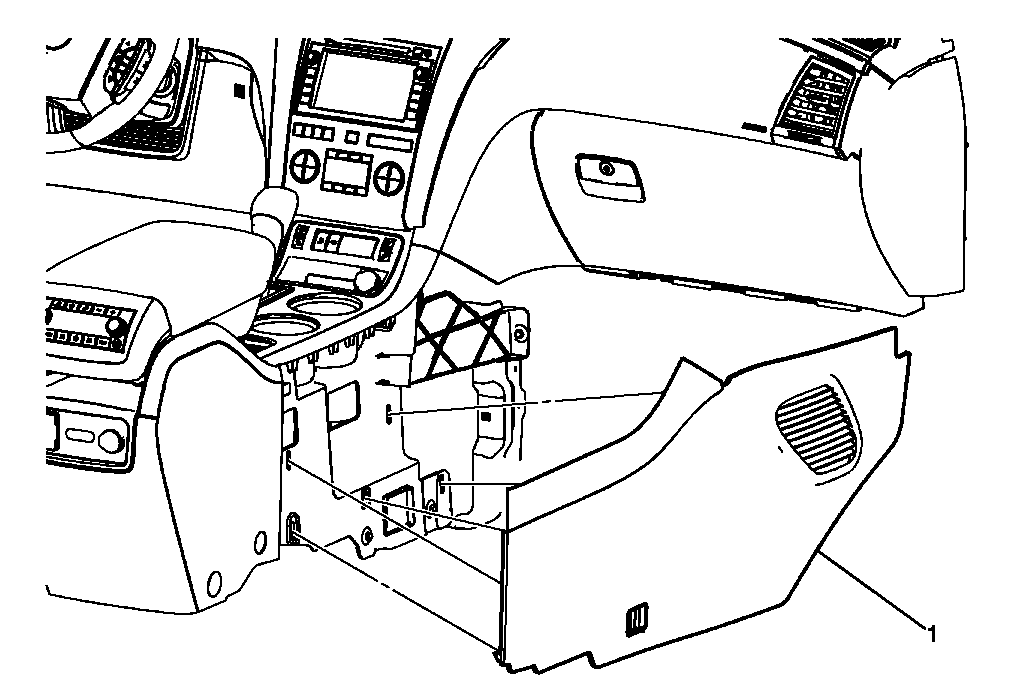

Fig 1: View Of Front Floor Console Extension Panel - Right Side (Traverse)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the right front seat. Refer to Bucket Seat Replacement .
1	Front Floor Console Extension Panel CAUTION: Failure to remove the respective front seats will result in damage to the front floor console extension panel. Procedure Grasp the front floor console extension panel and pull outward releasing the clips securing the extension panel to the console assembly.
