Front Floor Console Extension Panel Replacement - Right Side (Enclave)
Front Floor Console Extension Panel Replacement - Right Side (Enclave)

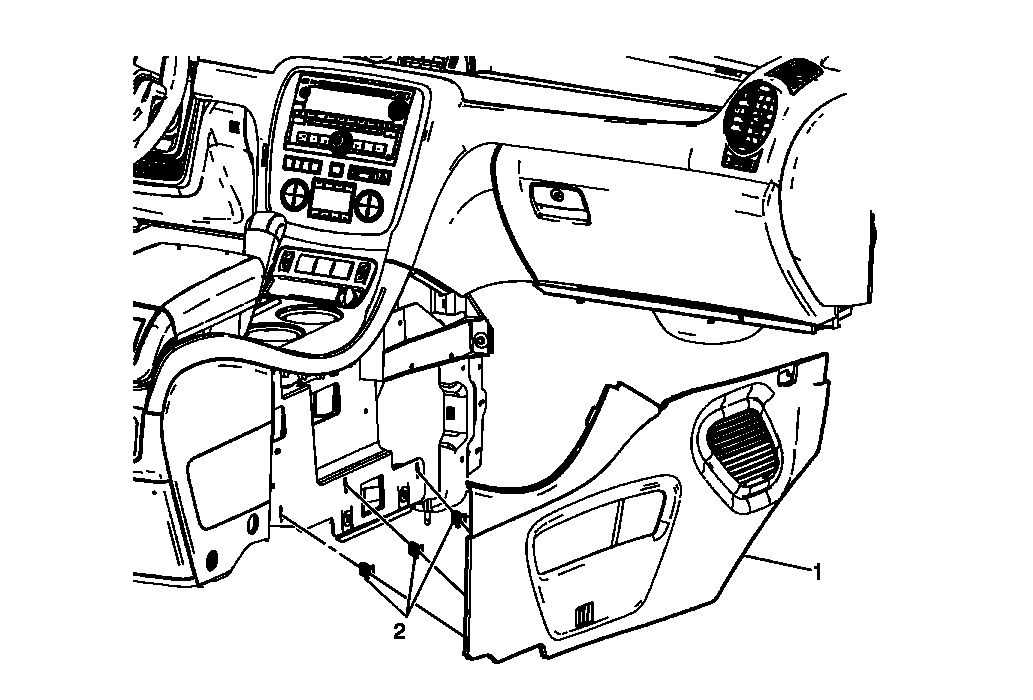

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the right front seat. Refer to Bucket Seat Replacement . |
|
| 1 | Front Floor Console Extension Panel
CAUTION:
Failure to remove the respective front seats will result in damage to the front floor console extension panel. |
| 2 | Retainer Clip (Qty: 5) |
