Front Floor Console Extension Panel Replacement - Left Side (Traverse)
Front Floor Console Extension Panel Replacement - Left Side (Traverse)
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the left front seat. Refer to Bucket Seat Replacement . |
|

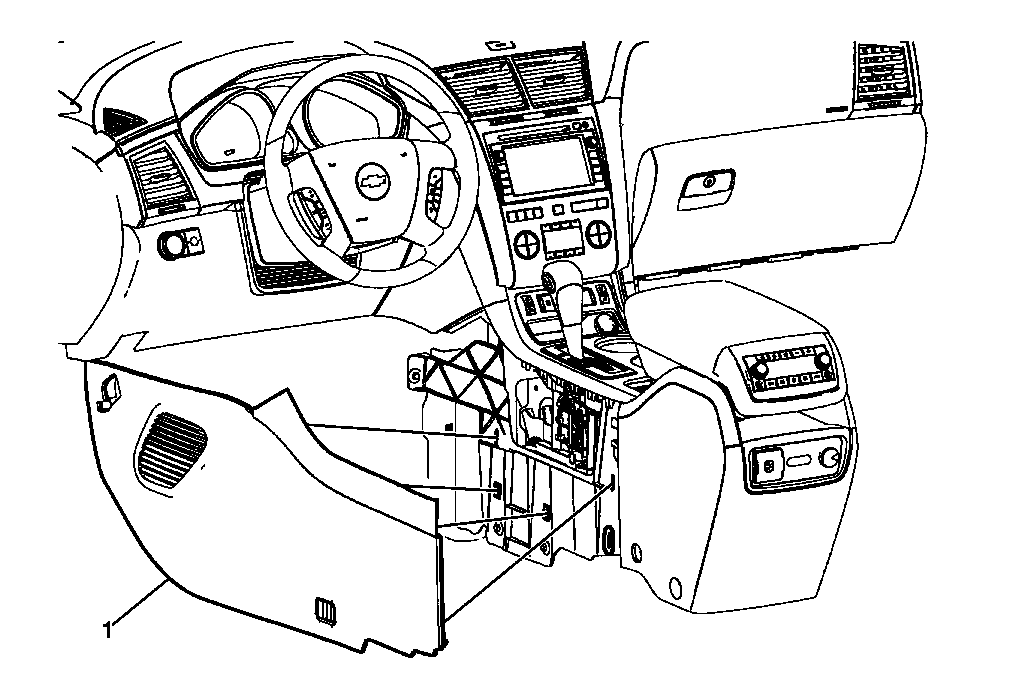

| 1 | Front Floor Console Extension Panel
CAUTION:
Failure to remove the respective front seats will result in damage to the front floor console extension panel. Procedure Grasp the front floor console extension panel and pull outward releasing the clips securing the extension panel to the console assembly. |
