Front Floor Console Extension Panel Replacement - Left Side (Acadia)

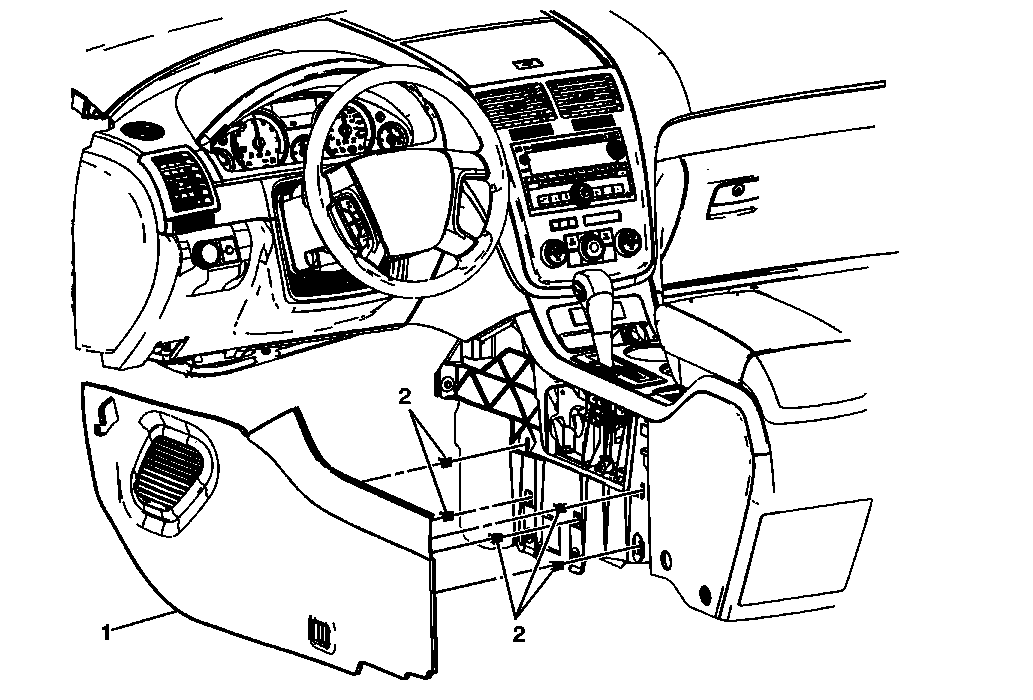

Fig 1: Identifying Front Floor Console Extension Panel - Left Side (Acadia)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the left front seat. Refer to Bucket Seat Replacement .
1	Front Floor Console Extension Panel. CAUTION: Failure to remove the respective front seats will result in damage to the front floor console extension panel.
2	Retainer Clips (Qty: 6).
