Parking and Turn Signal Lamp Bulb Replacement (Traverse)

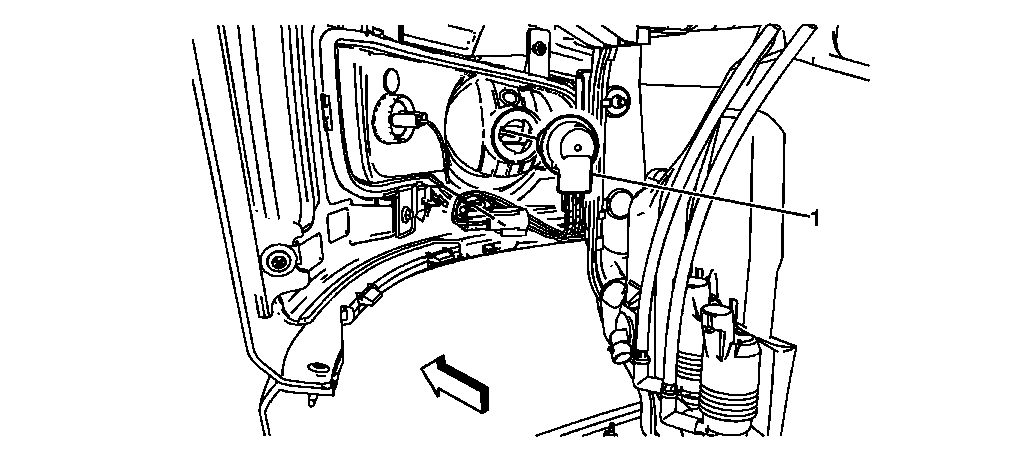

Fig 1: Identifying Parking and Turn Signal Lamp Bulb (Traverse)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front wheelhouse liner front in order to access the front turn signal bulb. Refer to Front Wheelhouse Front Liner Replacement (Enclave - Acadia) , Front Wheelhouse Front Liner Replacement (Traverse) . Rotate and disconnect the front turn signal bulb socket from the park, turn lamp assembly.
1	Park and Turn Signal Bulb WARNING: Refer to Halogen Bulb Warning . Procedure Pull the bulb straight from the lamp assembly bulb socket.

Callout

Component Name

Preliminary Procedures

Remove the front wheelhouse liner front in order to access the front turn signal bulb. Refer to Front Wheelhouse Front Liner Replacement (Enclave - Acadia) , Front Wheelhouse Front Liner Replacement (Traverse) .
Rotate and disconnect the front turn signal bulb socket from the park, turn lamp assembly.

Park and Turn Signal Bulb

WARNING:

Procedure
Pull the bulb straight from the lamp assembly bulb socket.
