Front Side Marker Lamp Bulb Replacement (Acadia)

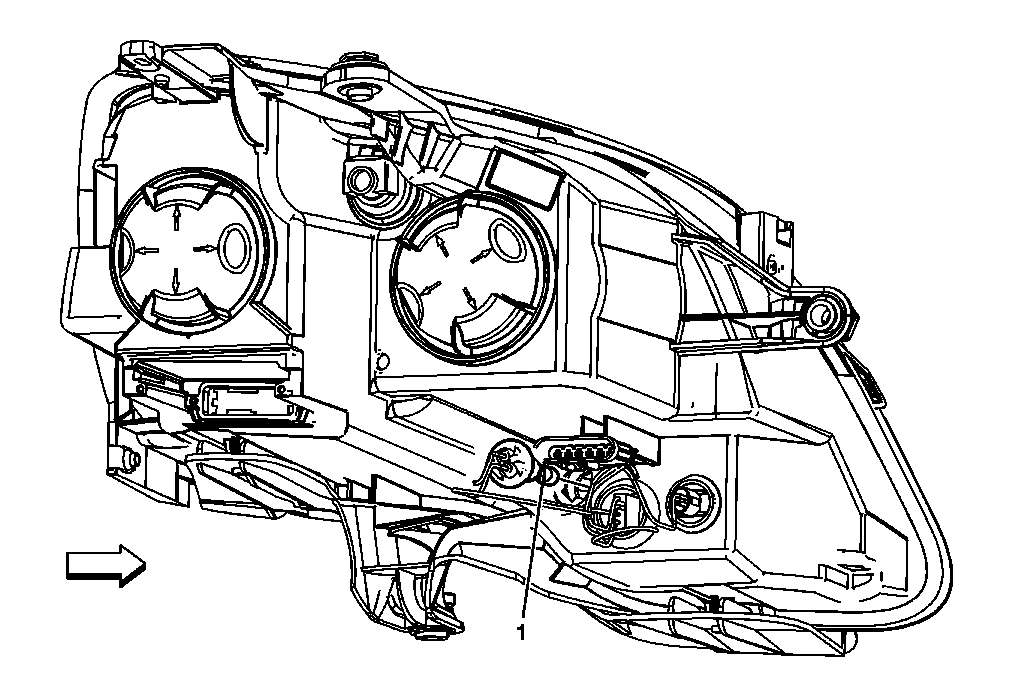

Fig 1: Front Side Marker Lamp Bulb (Acadia)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front wheelhouse liner in order to access the front turn signal bulbs. Refer to Front Wheelhouse Front Liner Replacement (Enclave - Acadia) , Front Wheelhouse Front Liner Replacement (Traverse) . Disconnect the front marker lamp bulb socket from the headlamp assembly.
1	Front Marker Lamp Bulb Procedure Pull the marker lamp bulbs straight from the lamp socket.

Callout

Component Name

Preliminary Procedures

Remove the front wheelhouse liner in order to access the front turn signal bulbs. Refer to Front Wheelhouse Front Liner Replacement (Enclave - Acadia) , Front Wheelhouse Front Liner Replacement (Traverse) .
Disconnect the front marker lamp bulb socket from the headlamp assembly.

Front Marker Lamp Bulb
Procedure
Pull the marker lamp bulbs straight from the lamp socket.
