Daytime Running Lamp (DRL) Ambient Light Sensor Replacement (Without UV6)

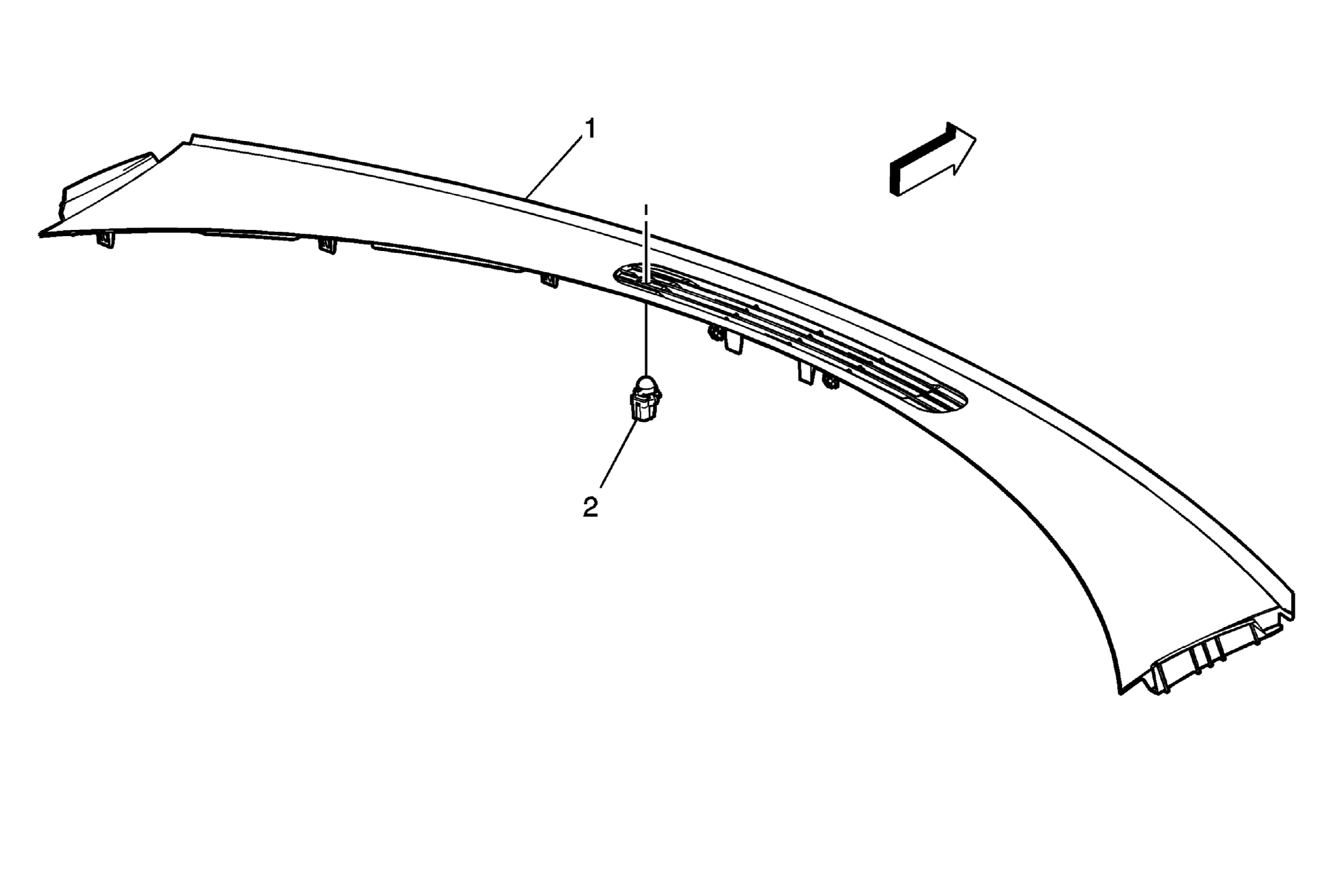

Fig 1: Identifying Daytime Running Lamp (DRL) Ambient Light Sensor (Without UV6)
GM1856911Courtesy of GENERAL MOTORS CORP.
Daytime Running Lamp (DRL) Ambient Light Sensor Replacement (Without UV6)

Callout Component Name
1 Instrument Panel Upper Trim Panel
Refer to Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (Acadia w/RPO UV6) , Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (Traverse) , Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (Enclave) , Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (Acadia w/o RPO UV6) .
2 Headlamp Auto Control Ambient Light Sensor Assembly

Procedure

  1. Twist and pull down to remove.
  2. Disconnect electrical connector.
