Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (Traverse)

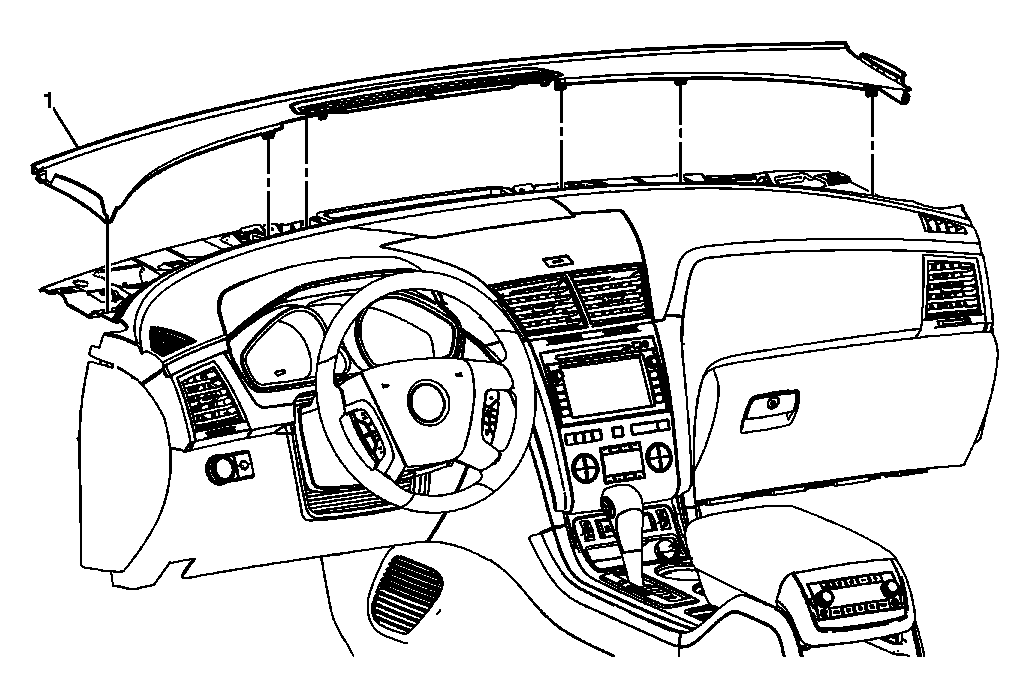

Fig 1: View Of Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille (Traverse)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the windshield garnish moldings. Refer to Windshield Garnish Molding Replacement - Left Side , and Windshield Garnish Molding Replacement - Right Side .
1	Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Procedures Use a flat bladed plastic trim tool in order to release the upper trim panel from the instrument panel assembly. Disconnect the electrical connections. When replacing the upper trim plate, transfer all necessary components.

Callout

Component Name

Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle

Procedures

Use a flat bladed plastic trim tool in order to release the upper trim panel from the instrument panel assembly.
Disconnect the electrical connections.
When replacing the upper trim plate, transfer all necessary components.
