Rear Seat Back Cushion Panel Replacement (with 40 Percent Seat)

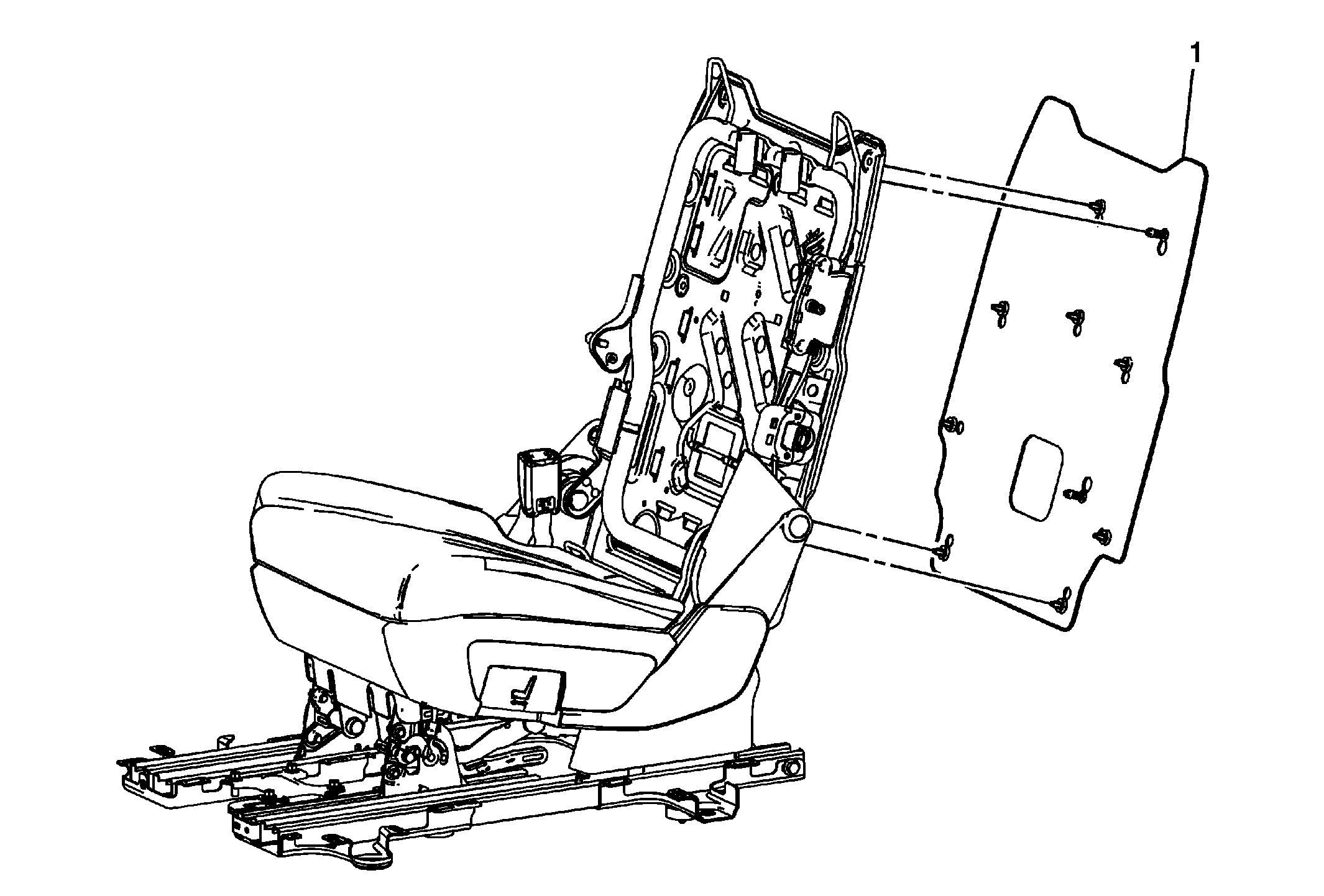

Fig 1: View Of Rear Seat Back Cushion Panel (With 40 Percent Seat)

Courtesy of GENERAL MOTORS CORP.

Rear Seat Back Cushion Panel Replacement (with 40 Percent Seat)

Callout	Component Name
Preliminary Procedures  Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (with 60 Percent Seat) , Rear Seat Back Cushion Cover and Pad Replacement (with 40 Percent Seat without Armrest) , Rear Seat Back Cushion Cover and Pad Replacement (with 40 Percent Seat with Armrest) .
1	Rear Seat Back Cushion Panel TIP:  Squeeze the retainers from the front side of the seat back and push rearward to disengage from the seat back frame.
