Driver or Passenger Seat Back Cushion Pad Support Replacement

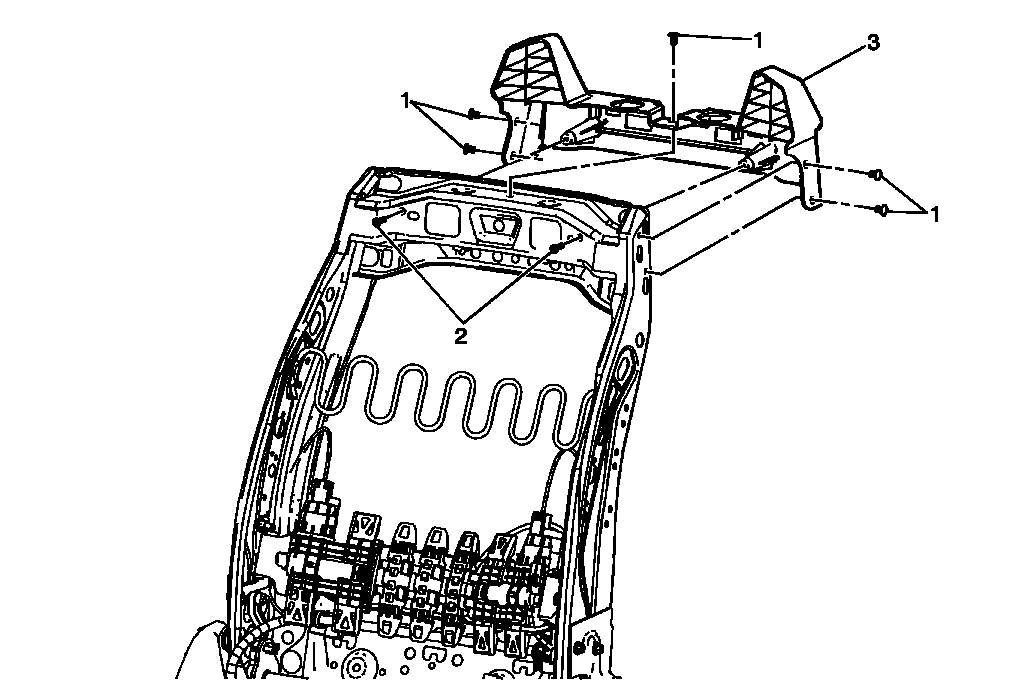

Fig 1: Identifying Seat Back Cushion Pad Support

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front seat back cushion cover and pad. Refer to Front Seat Back Cushion Cover and Cushion Pad Replacement .
1	Front Seat Back Cushion Support Assembly Retainer (Qty: 5)
2	Front Seat Back Cushion Support Assembly Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
3	Front Seat Back Cushion Support Assembly
