3rd Row Seat Back Cover and Pad Replacement

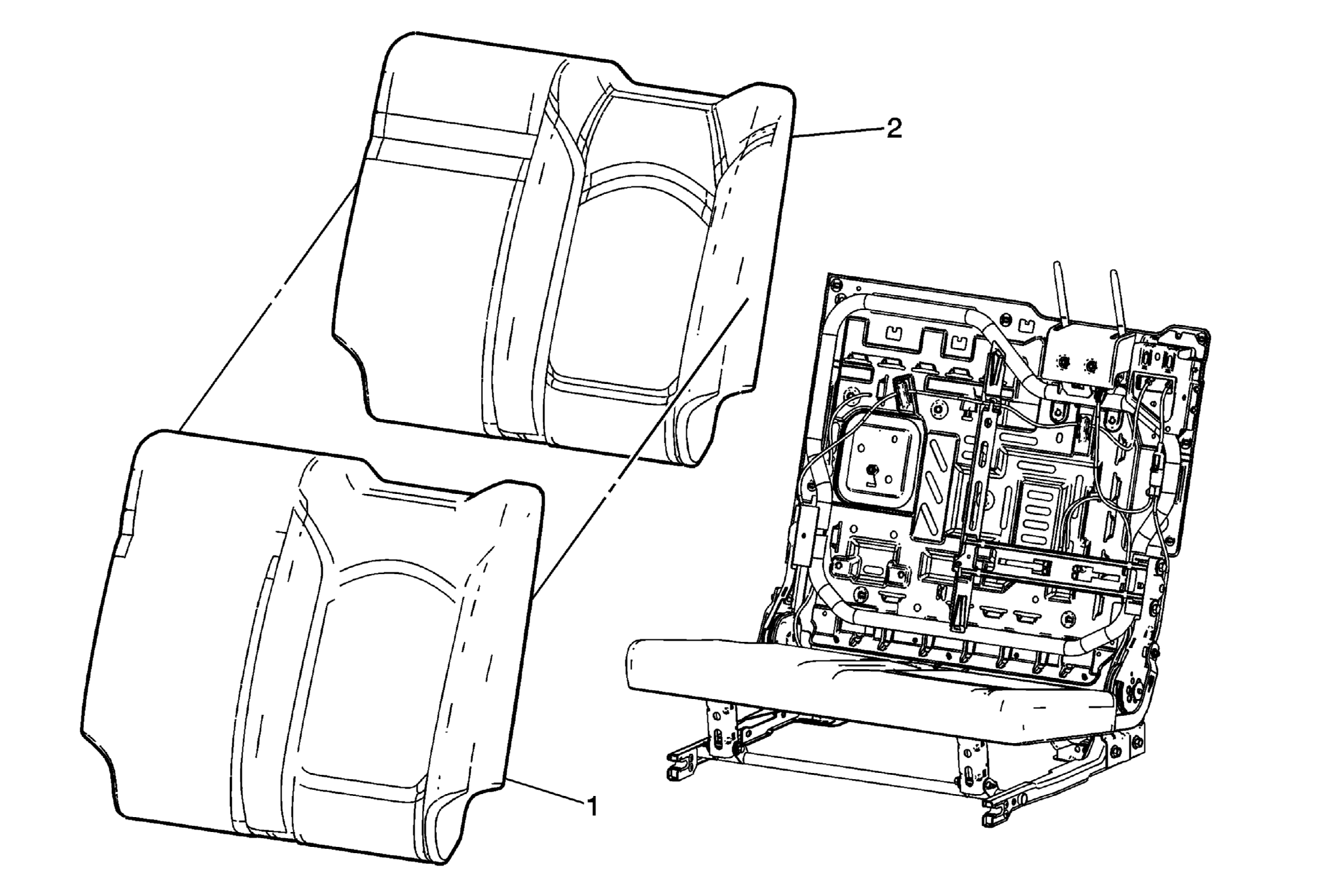

Fig 1: View Of Rear Seat Number 2 Back Cushion Cover And Pad

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear seat No. 2 back cushion panel. Refer to 3rd Row Seat Back Panel Replacement . Remove the rear seat No. 2 head restraint. Refer to 3rd Row Seat Head Restraint Replacement .
1	Rear Seat No. 2 Cushion Cover Procedure Disconnect the j-channel from the seat back cushion frame. Remove the seat back cushion cover from pad. Remove the swing wire between the inner and outer pads. Remove the seat back cushion cover from the pad.
2	Rear Seat No. 2 Back Cushion Pad

Callout

Component Name

Preliminary Procedures

Remove the rear seat No. 2 back cushion panel. Refer to 3rd Row Seat Back Panel Replacement .
Remove the rear seat No. 2 head restraint. Refer to 3rd Row Seat Head Restraint Replacement .

Rear Seat No. 2 Cushion Cover

Procedure

Rear Seat No. 2 Back Cushion Pad
