Instrument Panel Compartment Door Dampener Replacement (Enclave)

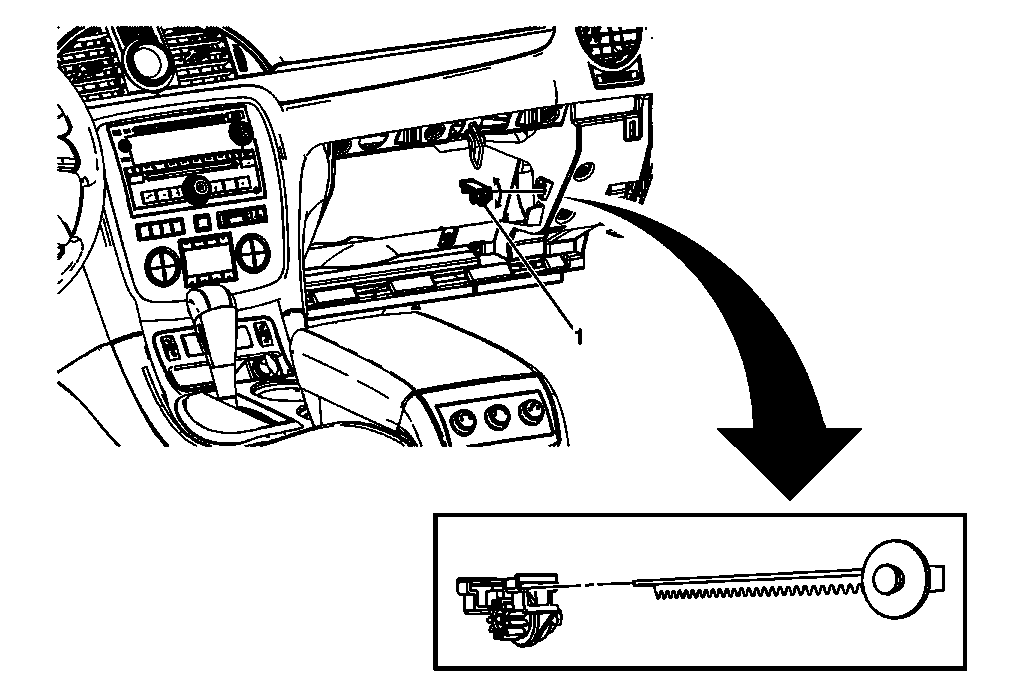

Fig 1: Identifying Instrument Panel Compartment Door Dampener (Enclave)

GM1875259

Courtesy of GENERAL MOTORS CORP.

Instrument Panel Compartment Door Dampener Replacement (Enclave)

Callout

Component Name

Preliminary Procedure
Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement (Acadia) , Instrument Panel Compartment Replacement (Traverse) , Instrument Panel Compartment Replacement (Enclave) .

1

Instrument Panel Compartment Dampener Assembly

Procedure

Twist the dampener and pull outward to remove the dampener from the instrument panel assembly.
When reinstalling the instrument panel compartment assembly ensure the instrument panel compartment dampener arm is aligned properly to the dampener gear assembly.
