Parking and Turn Signal Lamp Bulb Replacement (Acadia)

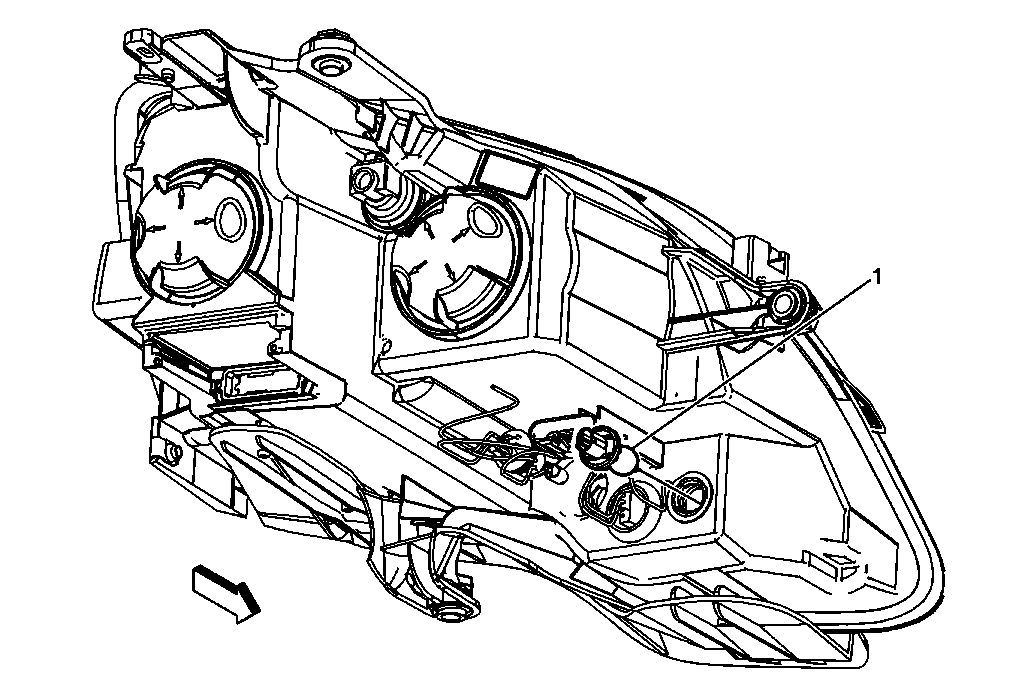

Fig 1: Parking and Turn Signal Lamp Bulb (Acadia)

GM1865110

Courtesy of GENERAL MOTORS CORP.

Parking and Turn Signal Lamp Bulb Replacement (Acadia)

Callout

Component Name

Preliminary Procedures

Remove the front wheelhouse liner in order to access the front turn signal bulb. Refer to Front Wheelhouse Front Liner Replacement (Enclave - Acadia) , Front Wheelhouse Front Liner Replacement (Traverse) .
Disconnect the front turn signal bulb socket from the headlamp assembly.
Disconnect the electrical connector.

1

Turn Signal Bulb

WARNING:

Refer to Halogen Bulb Warning .

Procedure
Discard the bulb and socket assembly.
