Headlamp Bulb Replacement (High Beam without T96)

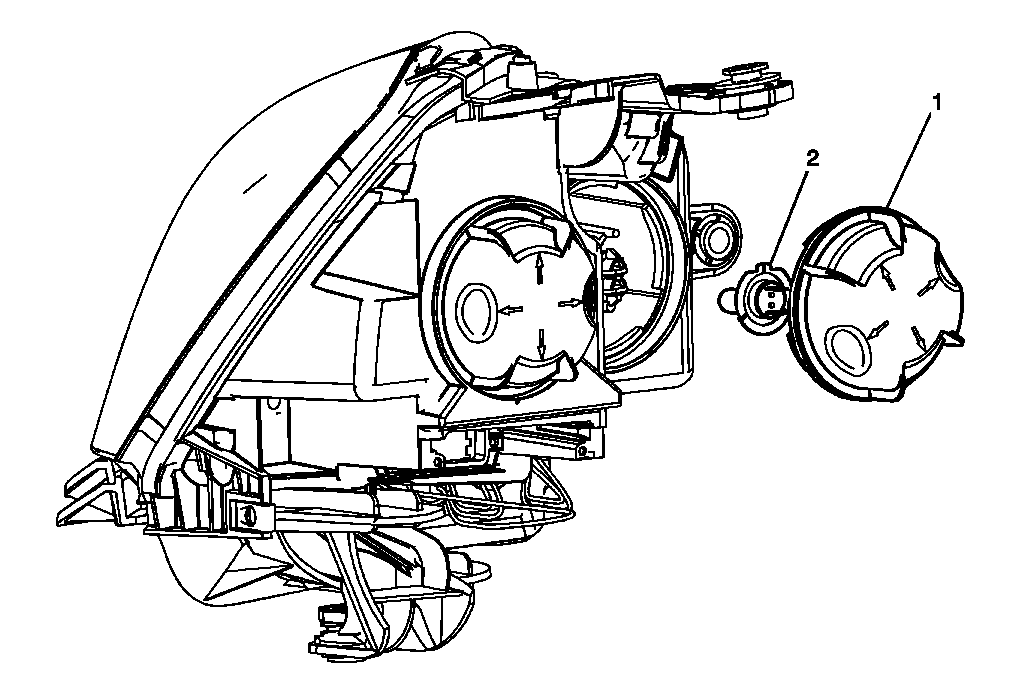

Fig 1: Headlamp Bulb (High Beam without T96)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front wheelhouse liner. Refer to Front Wheelhouse Front Liner Replacement (Enclave - Acadia) , Front Wheelhouse Front Liner Replacement (Traverse) .
1	Headlamp Bulb Accessory Cover TIP: Rotate the cover counterclockwise and remove.
2	Headlamp Bulb (High Beam) WARNING: Refer to Halogen Bulb Warning . Procedure Disconnect the electrical connector from the bulb socket. Disconnect the bulb socket from the headlamp assembly. Discard the bulb.

Callout

Component Name

Headlamp Bulb Accessory Cover
TIP: Rotate the cover counterclockwise and remove.

Headlamp Bulb (High Beam)

WARNING:

Procedure
