Oil Filter Adapter Disassemble (LF1)

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

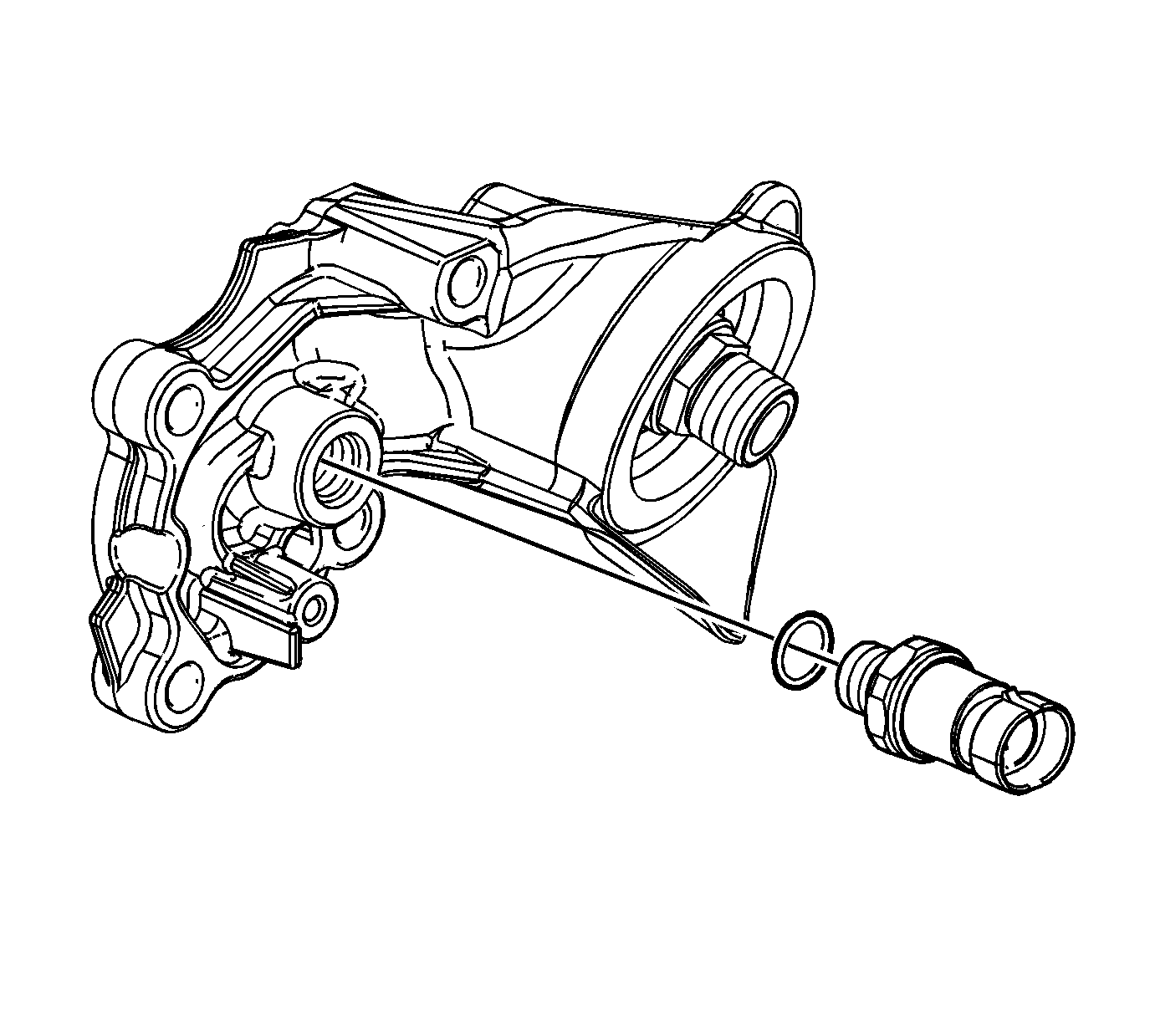

Fig 1: Identifying Oil Pressure Sender

Courtesy of GENERAL MOTORS CORP.

Remove the oil pressure sender.

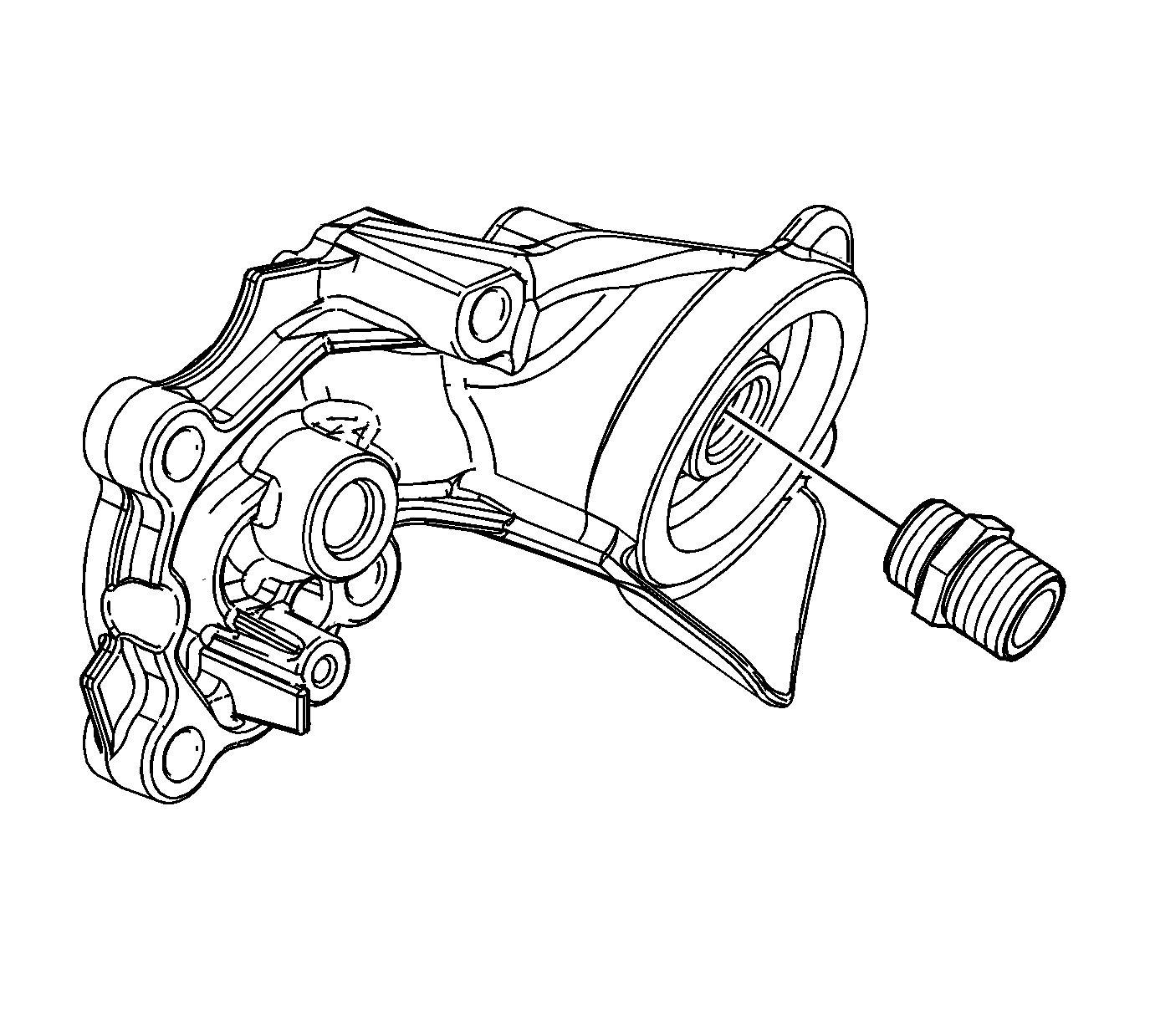

Fig 2: Identifying Oil Filter Fitting

Courtesy of GENERAL MOTORS CORP.

Remove the oil filter fitting.
