Engine Block Disassemble (LF1)

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

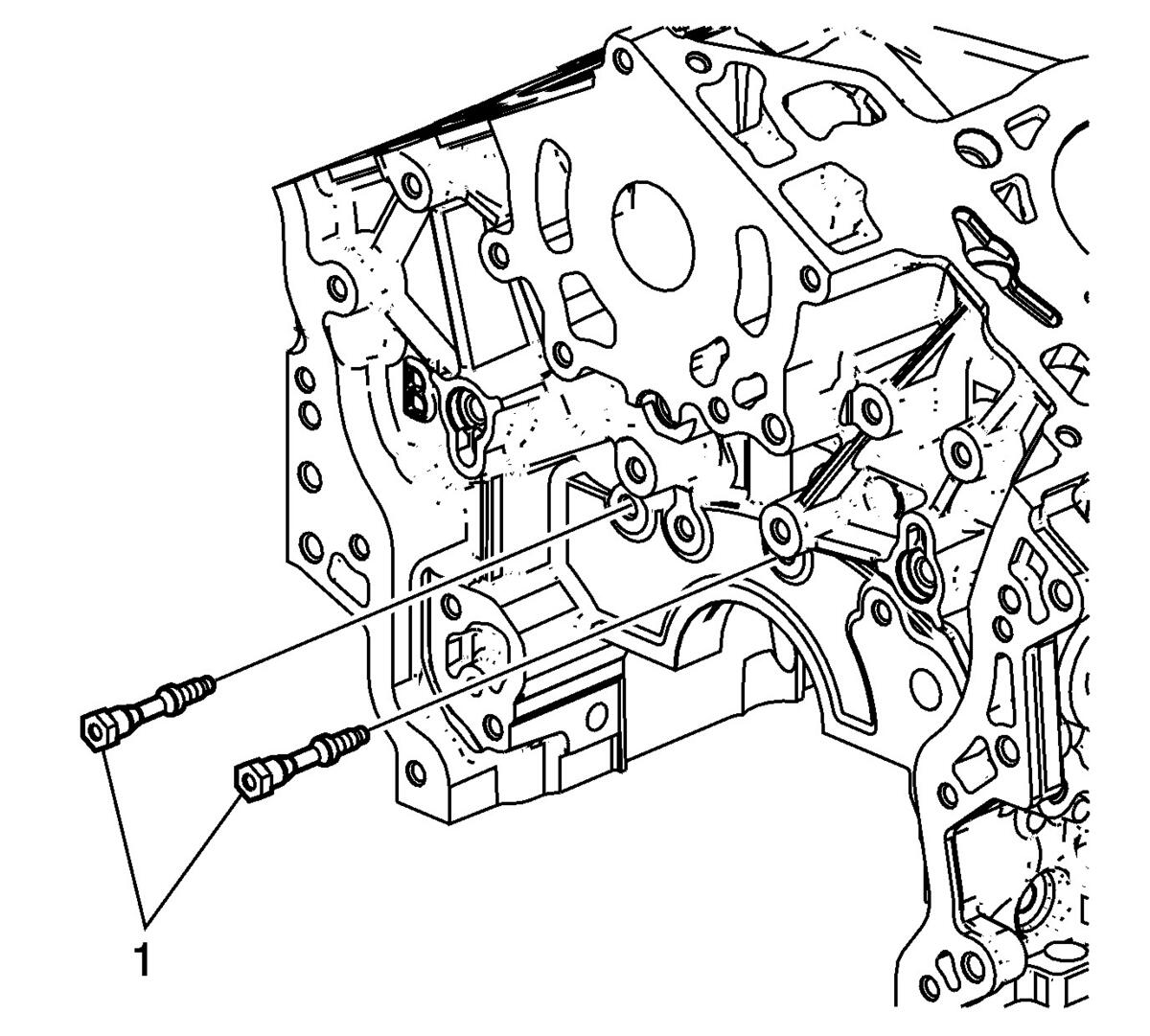

    Fig 1: Identifying Engine Front Cover Studs
    GM2296303Courtesy of GENERAL MOTORS CORP.
  1. Remove the engine front cover studs (1).

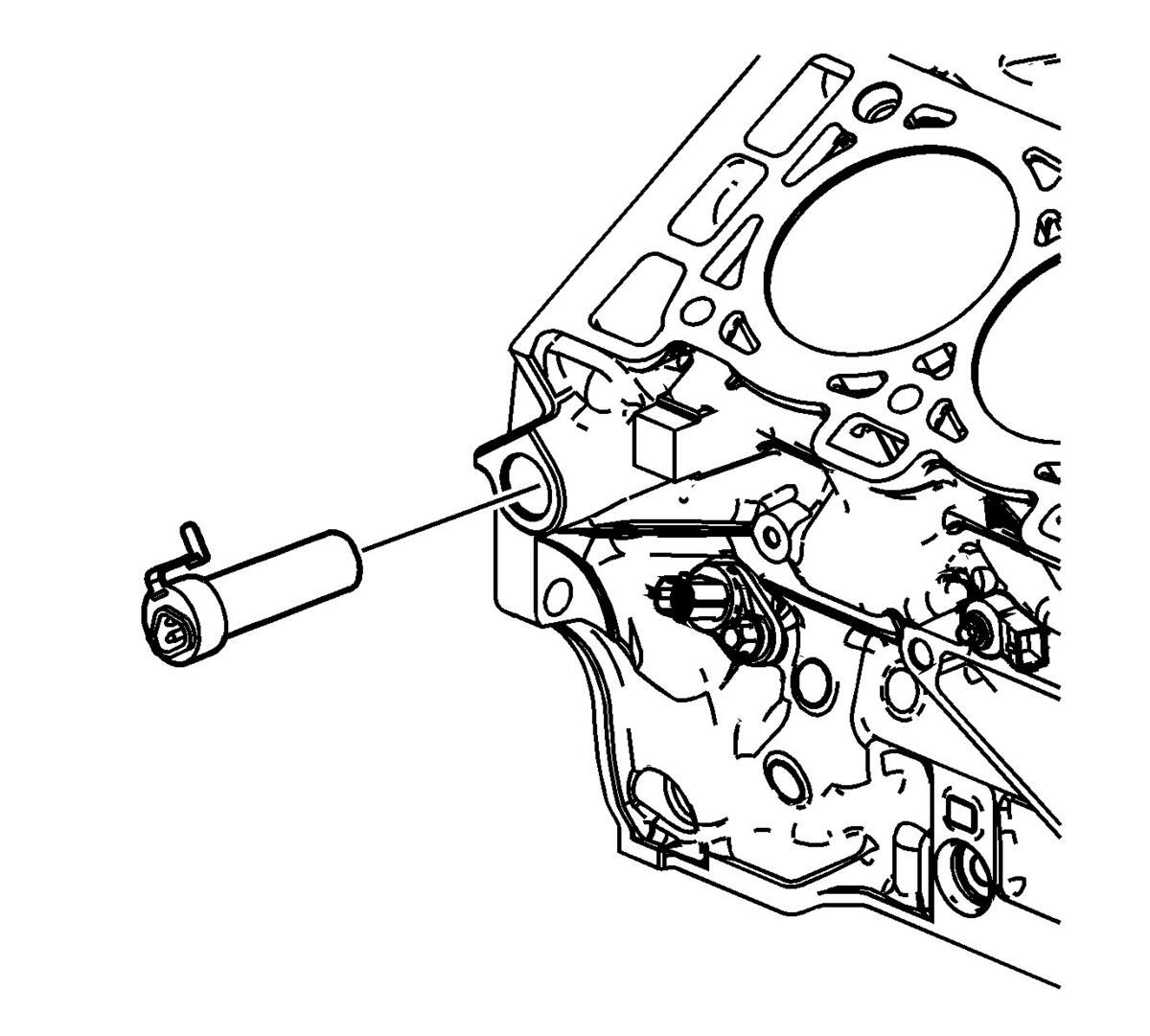

    2. Fig 2: View Of Block Heater Cartridge
    GM1930194Courtesy of GENERAL MOTORS CORP.
  2. Remove the block heater cartridge, if equipped.

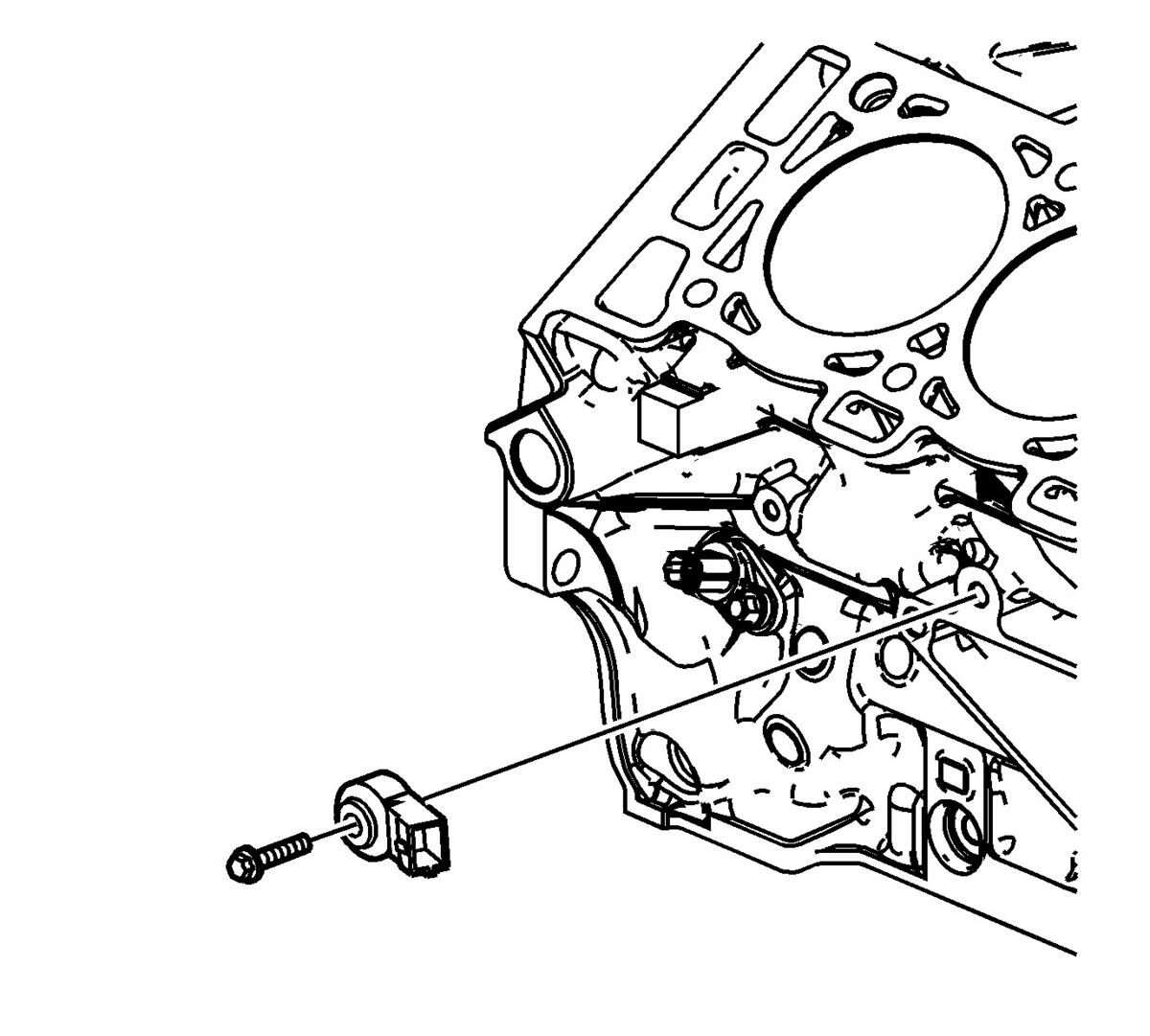

    3. Fig 3: View Of Right Knock Sensor
    GM1930195Courtesy of GENERAL MOTORS CORP.
  3. Remove the right knock sensor bolt.
  4. Remove the right knock sensor.

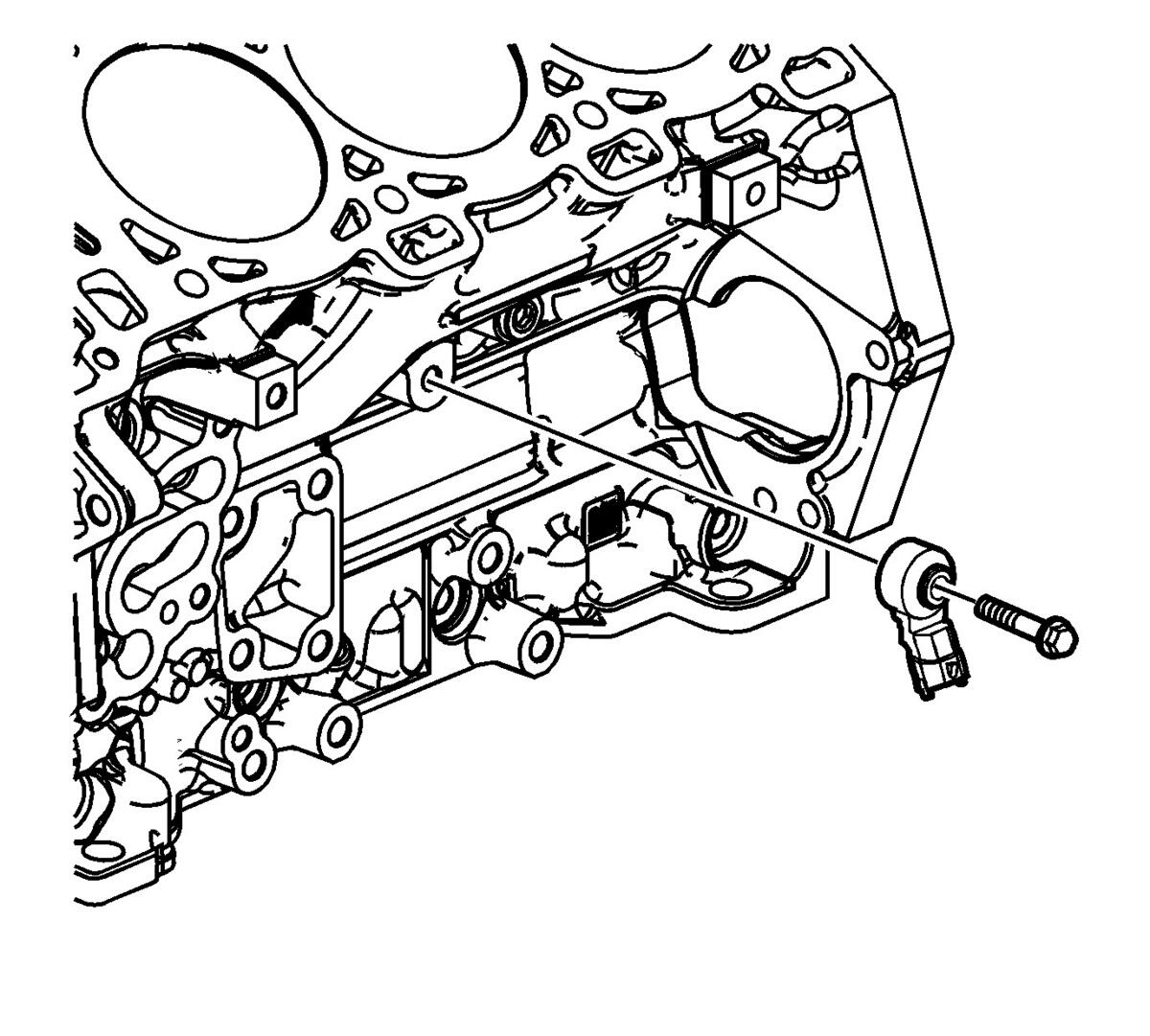

    5. Fig 4: Identifying Left Knock Sensor & Bolt
    GM1930214Courtesy of GENERAL MOTORS CORP.
  5. Remove the left knock sensor bolt.
  6. Remove the left knock sensor.

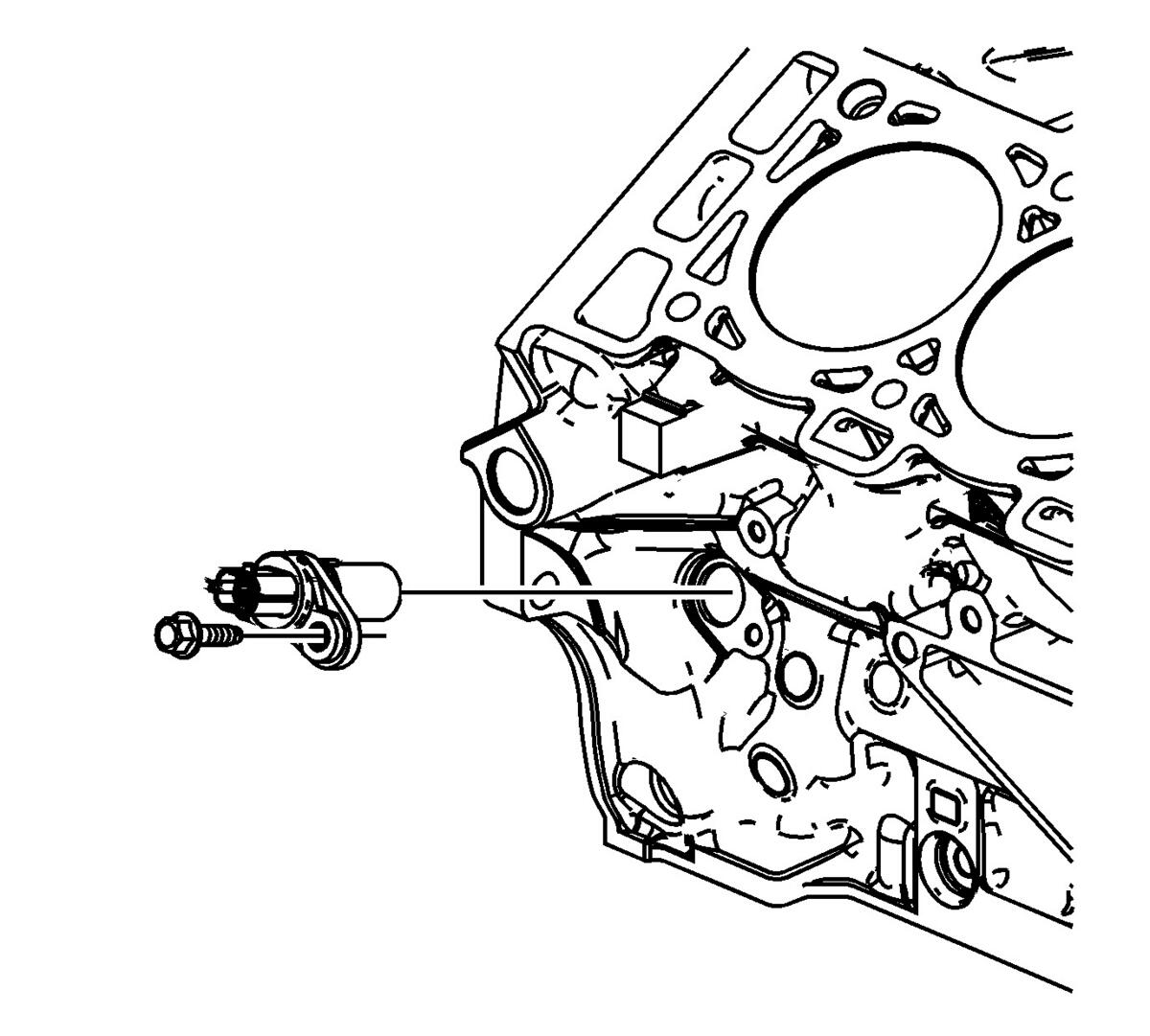

    7. Fig 5: View Of Crankshaft Position Sensor
    GM1930246Courtesy of GENERAL MOTORS CORP.
  7. Remove the crankshaft position sensor bolt.
  8. Remove the crankshaft position sensor.

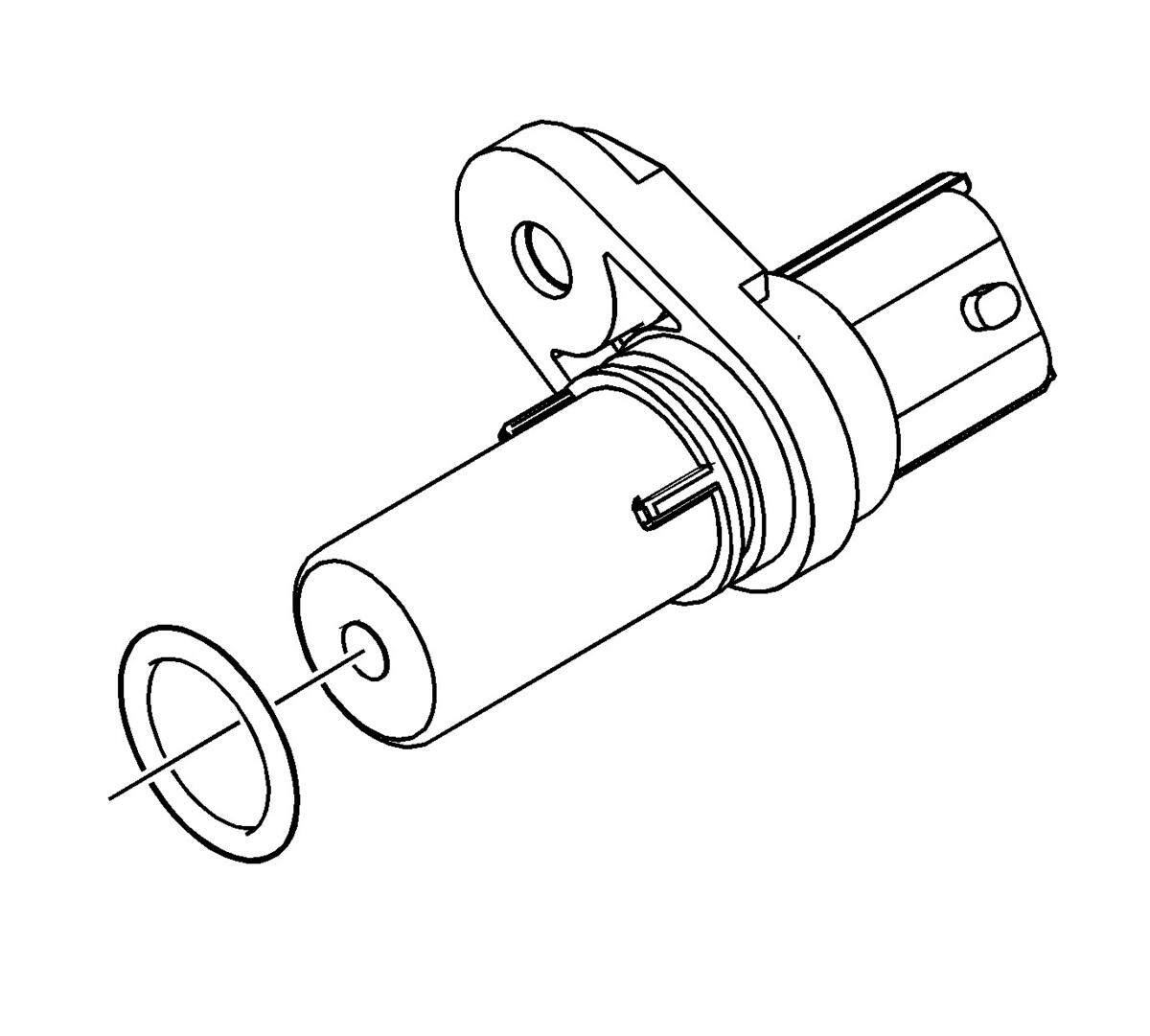

    9. Fig 6: View Of Crankshaft Position Sensor O-Ring
    GM1930269Courtesy of GENERAL MOTORS CORP.
  9. Remove the crankshaft position sensor O-ring, if damaged.

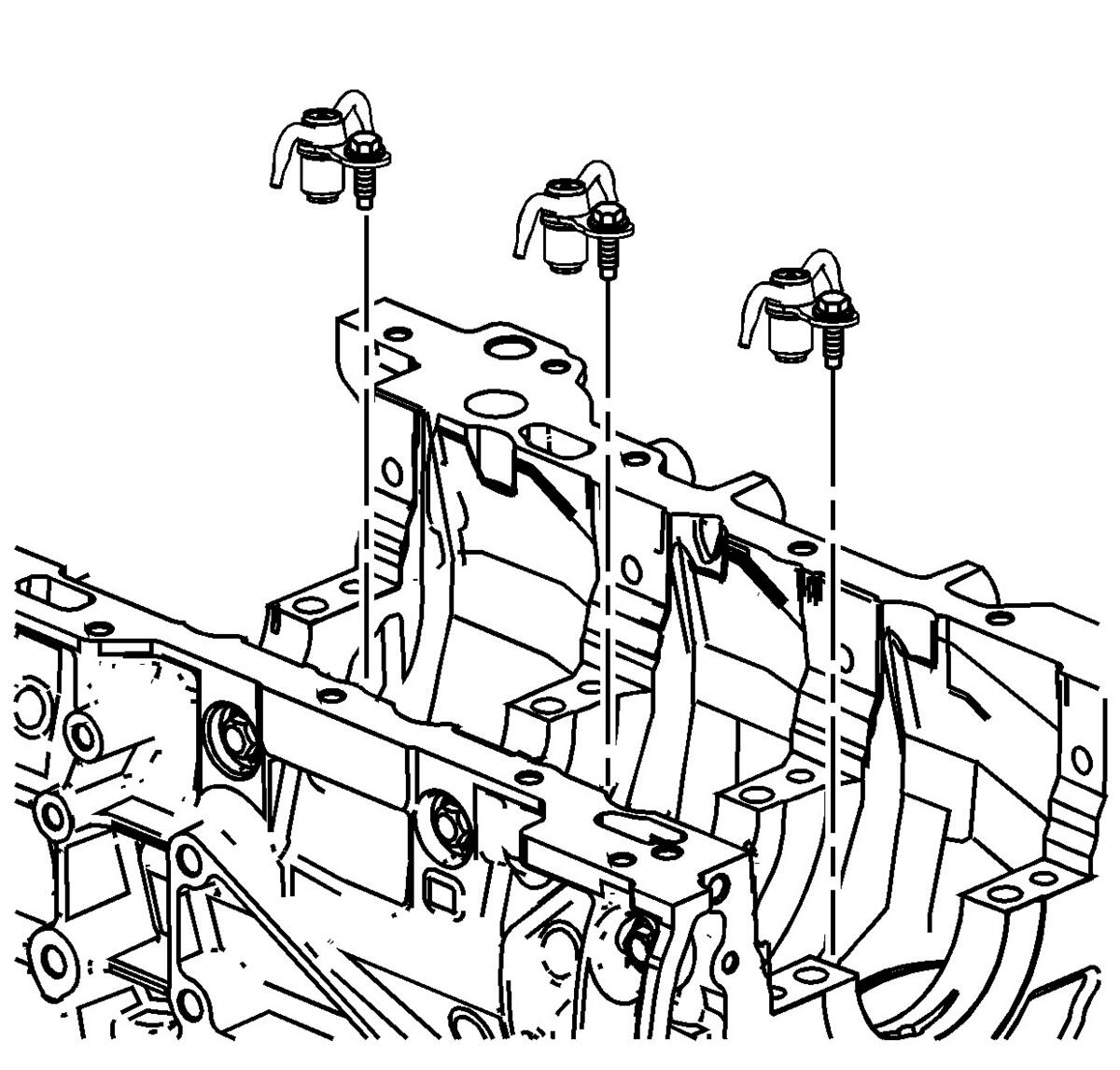

    10. Fig 7: Identifying Oil Jet & Bolts
    GM1866877Courtesy of GENERAL MOTORS CORP.
  10. Remove oil jet bolts.
  11. Remove oil jets.
    12. Fig 8: Identifying Right Front Oil Pan Rail Oil Gallery Expansion Plug
    GM902732Courtesy of GENERAL MOTORS CORP.
  12. Remove the right front oil pan rail oil gallery expansion plug.
    13. Fig 9: Locating Cylinder Block-To-Oil Pan Alignment Dowels
    GM902740Courtesy of GENERAL MOTORS CORP.
  13. Remove the cylinder block-to-oil pan alignment dowels.
    14. Fig 10: Identifying M14 Right Side Oil Gallery Threaded Plug
    GM1327922Courtesy of GENERAL MOTORS CORP.
  14. Remove the M14 right side oil gallery threaded plug.
    15. Fig 11: Identifying M14 Right Side Coolant Drain Threaded Plug
    GM1327923Courtesy of GENERAL MOTORS CORP.
  15. Remove the M14 right side coolant drain threaded plug.
    16. Fig 12: Identifying M14 Rear Oil Gallery Threaded Plug
    GM1327924Courtesy of GENERAL MOTORS CORP.
  16. Remove the M14 rear oil gallery threaded plug.
    17. Fig 13: View Of M14 Left Side Coolant Drain Threaded Plug
    GM1327925Courtesy of GENERAL MOTORS CORP.
  17. Remove the M14 left side coolant drain threaded plug.
    18. Fig 14: Identifying M20 Left Side Oil Gallery Threaded Plug
    GM1327926Courtesy of GENERAL MOTORS CORP.
  18. Remove the M20 left side oil gallery threaded plug.
    19. Fig 15: Identifying Coolant Expansion Plugs
    GM902733Courtesy of GENERAL MOTORS CORP.
  19. Remove the coolant expansion plugs.
    20. Fig 16: Identifying Cylinder Block-To-Transmission Alignment Dowels
    GM902737Courtesy of GENERAL MOTORS CORP.
  20. Remove the cylinder block-to-transmission alignment dowels.
    21. Fig 17: Locating Front Oil Gallery Expansion Plug
    GM902730Courtesy of GENERAL MOTORS CORP.
  21. Remove the front oil gallery expansion plug.
    22. Fig 18: Identifying Cylinder Block-To-Cylinder Head Alignment Dowels
    GM902736Courtesy of GENERAL MOTORS CORP.
  22. Remove the cylinder block-to-cylinder head alignment dowels.
