Left Secondary Timing Chain Guide

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

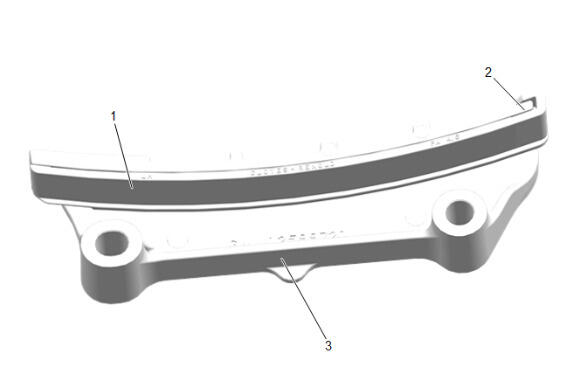

Fig 1: View Of Left Secondary Timing Chain Guide Inspection Locations

Courtesy of GENERAL MOTORS CORP.

Inspect the left secondary timing chain guides for the following:
- Worn guide surface (1)
- Cracked or broken guide surface (2)
- Cracked or damaged guide base (3)
Replace a damaged left secondary timing chain guide.
