Exhaust Turbocharger Inlet Pipe Replacement - Bank 2 (LAU)

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

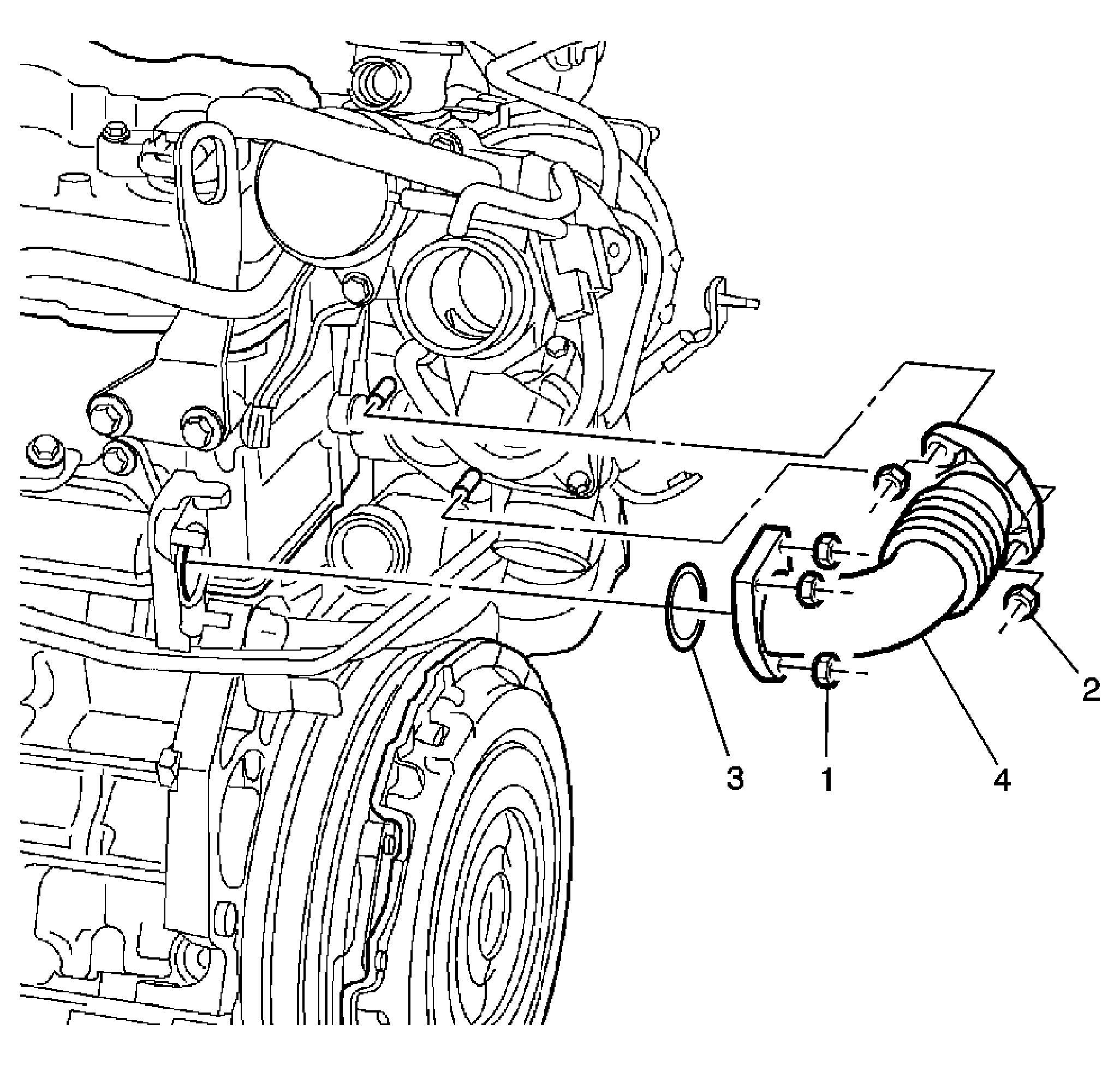

Fig 1: View Of Exhaust Turbocharger Inlet Pipe - Bank 2 (LAU)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to Exhaust Service Warning Exhaust Service Warning. WARNING: Refer to Hot Exhaust System Warning . Preliminary procedures Remove the radiator outlet pipe. Refer to Radiator Outlet Pipe Replacement (LAU) . Remove the left side exhaust manifold heat shield. Refer to Exhaust Manifold Heat Shield Replacement - Left Side (LAU)
1	Exhaust Turbocharger Inlet Pipe Nut (Qty 3) CAUTION: Refer to Fastener Caution . Tighten: 20 N.m (15 lb ft)
2	Turbocharger Nut (Qty: 2) Tighten: 20 N.m (15 lb ft)
3	Seal
4	Exhaust Turbocharger Inlet Pipe - Bank 2
