Front Bumper Fascia Upper Support Replacement (OUTLOOK, Acadia, Traverse)

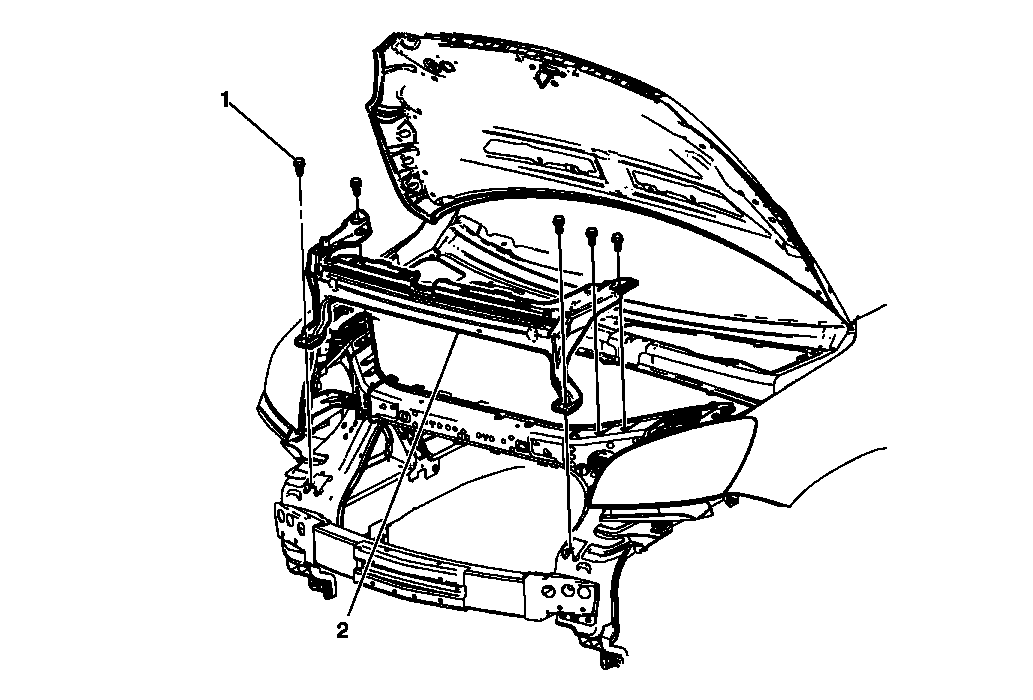

Fig 1: Identifying Front Bumper Fascia Upper Support (Outlook, Acadia)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Acadia) or Front Bumper Fascia Replacement (OUTLOOK) or Front Bumper Fascia Replacement (Traverse) . Remove the hood latch support. Refer to Hood Latch Support Replacement . Remove the radiator upper support mounting bolts and position rearward.
1	Front Bumper Fascia Support Bolt (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Front Bumper Fascia Support

Callout

Component Name

Preliminary Procedures

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Acadia) or Front Bumper Fascia Replacement (OUTLOOK) or Front Bumper Fascia Replacement (Traverse) .
Remove the hood latch support. Refer to Hood Latch Support Replacement .
Remove the radiator upper support mounting bolts and position rearward.

Front Bumper Fascia Support Bolt (Qty: 6)

CAUTION: Refer to Fastener Caution .

Tighten: 10 N.m (89 lb in)

Front Bumper Fascia Support
