Hood Replacement

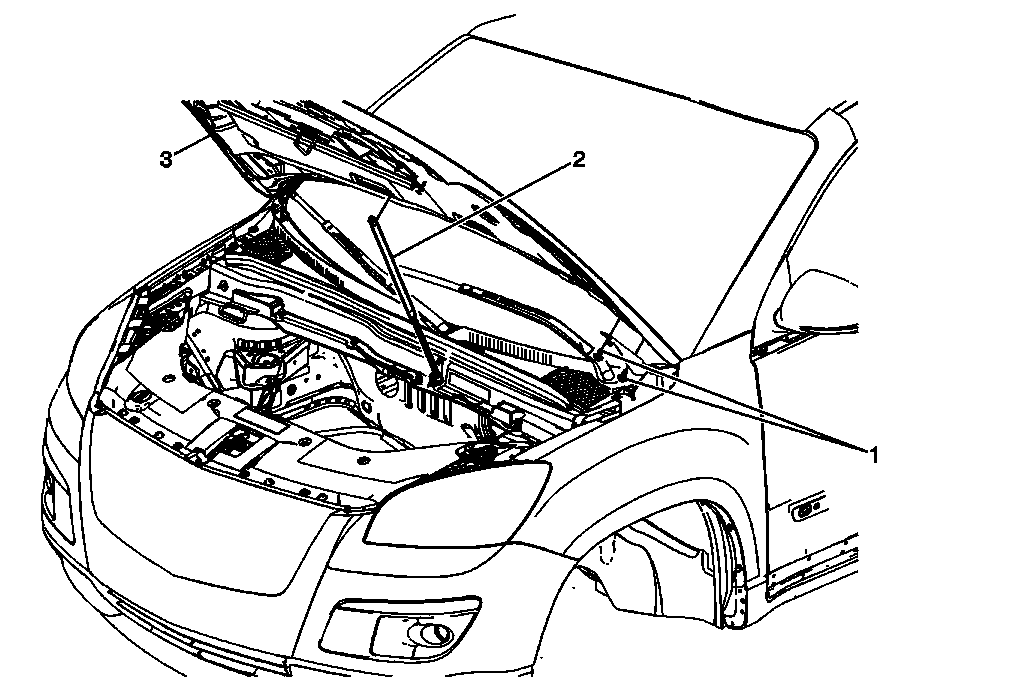

Fig 1: Identifying Hood

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury. Preliminary Procedure: Disconnect the hood strut rod. Refer to Hood Strut Replacement .
1	Hood Hinge Pivot Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 25 N.m (18 lb ft)
2	Hood Strut Tip: Disconnect windshield washer hose. Transfer any parts as needed.
3	Hood
