Hood Strut Replacement

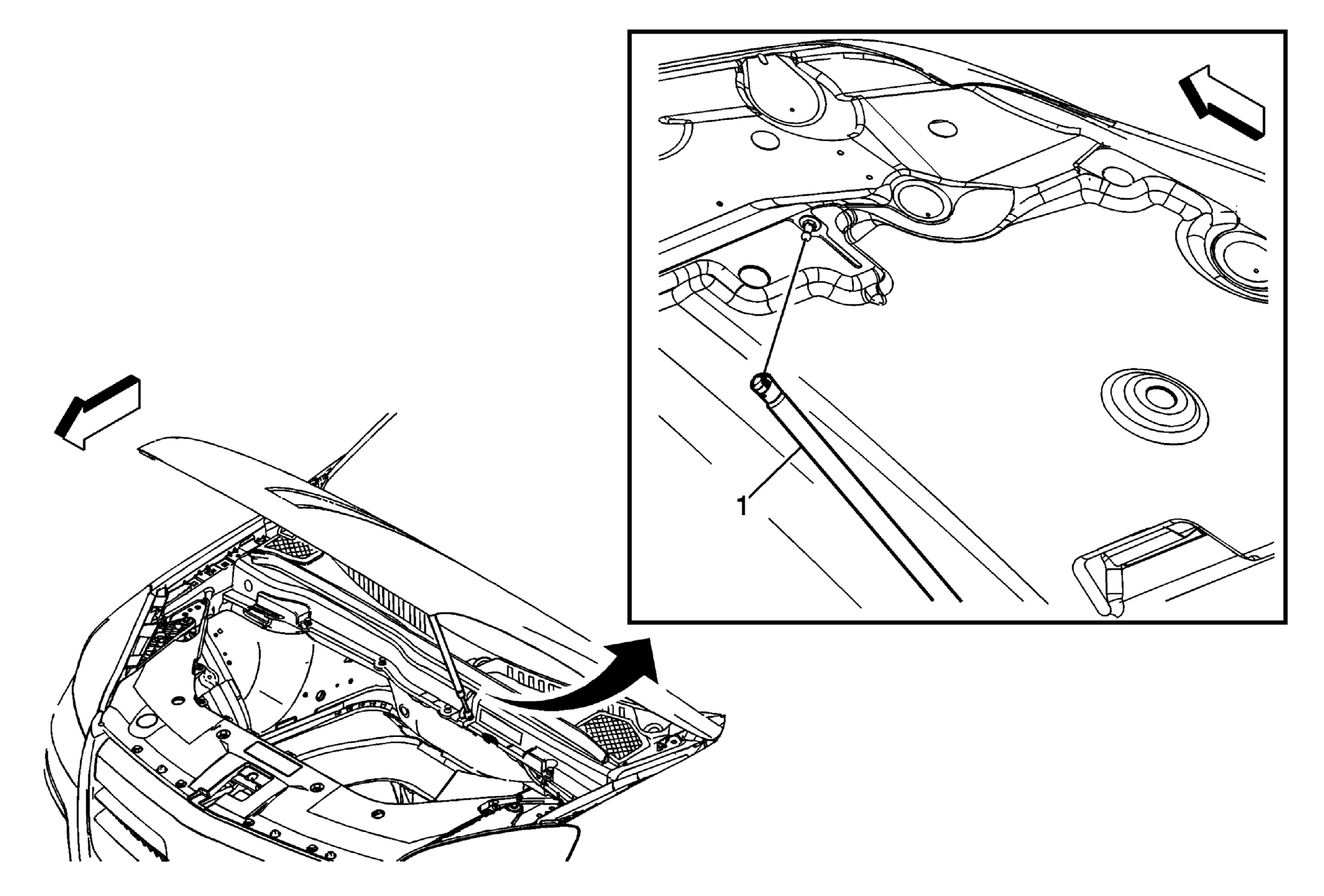

Fig 1: Identifying Hood Strut
GM1843029Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Hood Strut
CAUTION: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Procedure:
Use a flat-bladed tool to release the hood strut retaining clips.
