Instrument Cluster Replacement (Outlook)

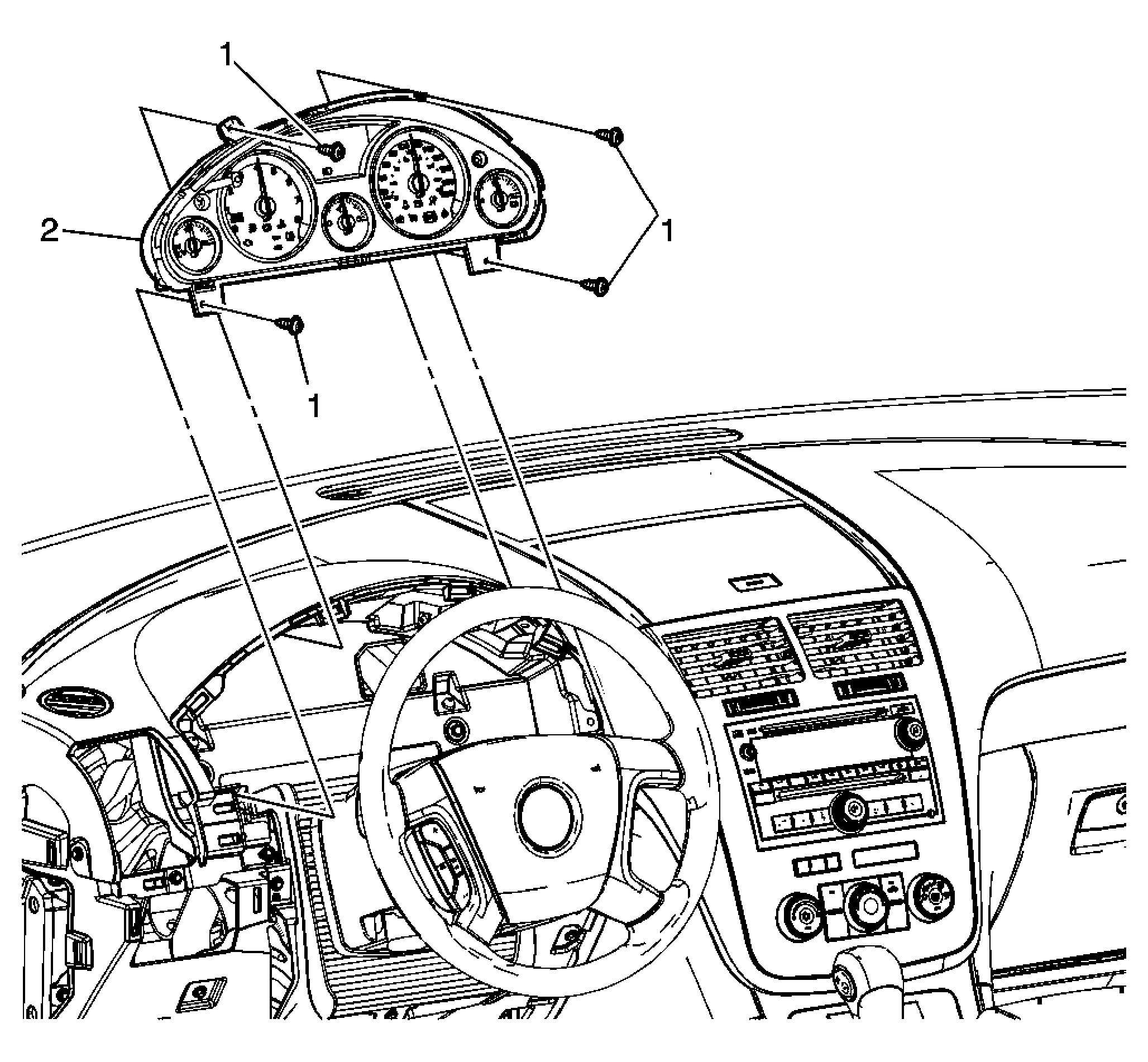

Fig 1: View Of Instrument Cluster (Outlook)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the instrument panel trim plate. Refer to Instrument Panel Trim Plate Replacement (Acadia) or Instrument Panel Trim Plate Replacement (Enclave) or Instrument Panel Trim Plate Replacement (Outlook) .
1	Instrument Panel Cluster Screw (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Instrument Panel Cluster Assembly Tip: Disconnect the electrical connector. Refer to Control Module References for programming and setup information.
