Instrument Panel Trim Plate Replacement (Outlook)

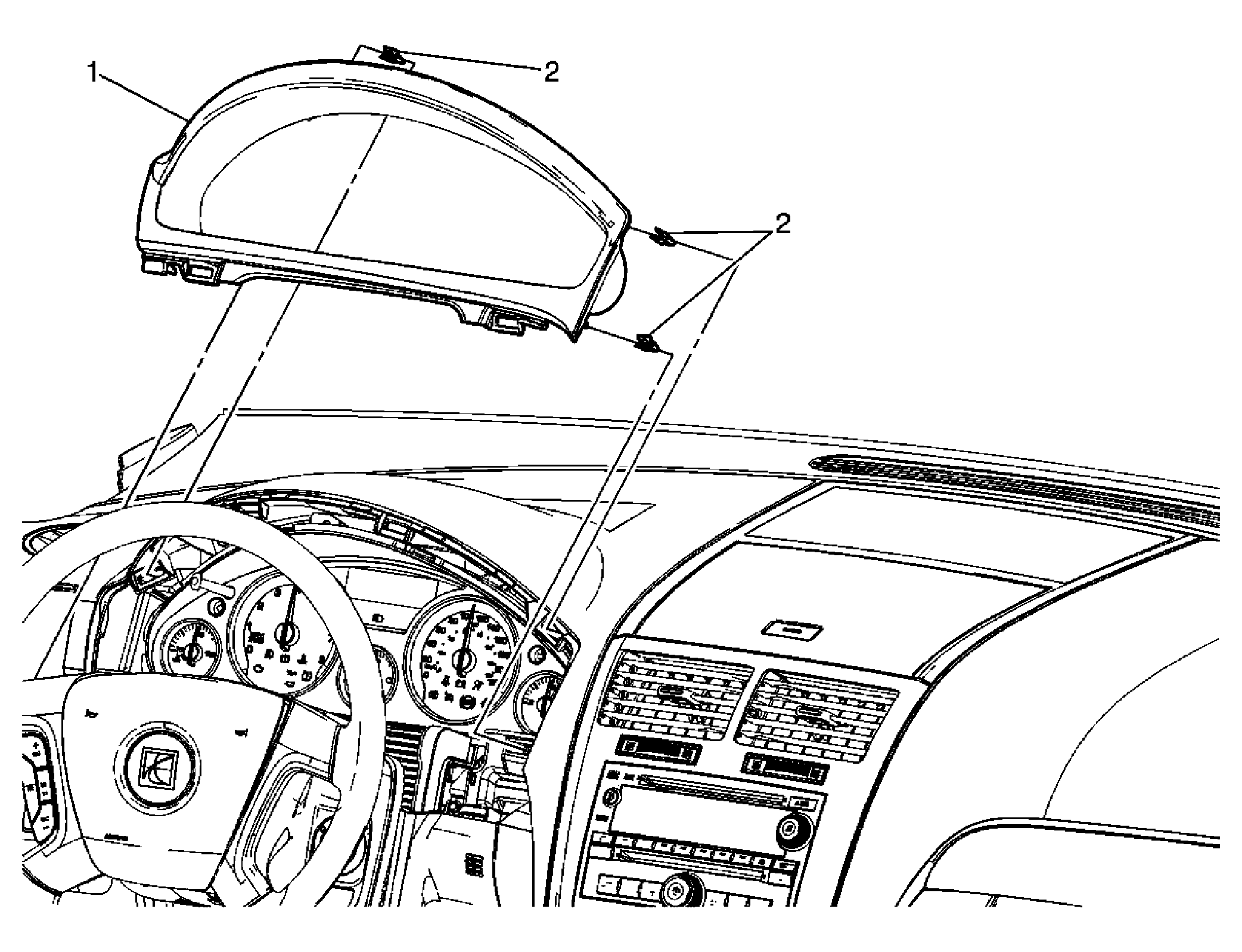

Fig 1: View Of Instrument Panel Trim Plate (Outlook)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the left instrument panel trim panel. Refer to Instrument Panel Trim Panel Replacement - Left Side (Enclave)  or Instrument Panel Trim Panel Replacement - Left Side (Outlook) .
1	Instrument Panel Trim Plate
2	Retainer Clips (Qty: 6)
