Front Seat Cushion Cover and Pad Replacement

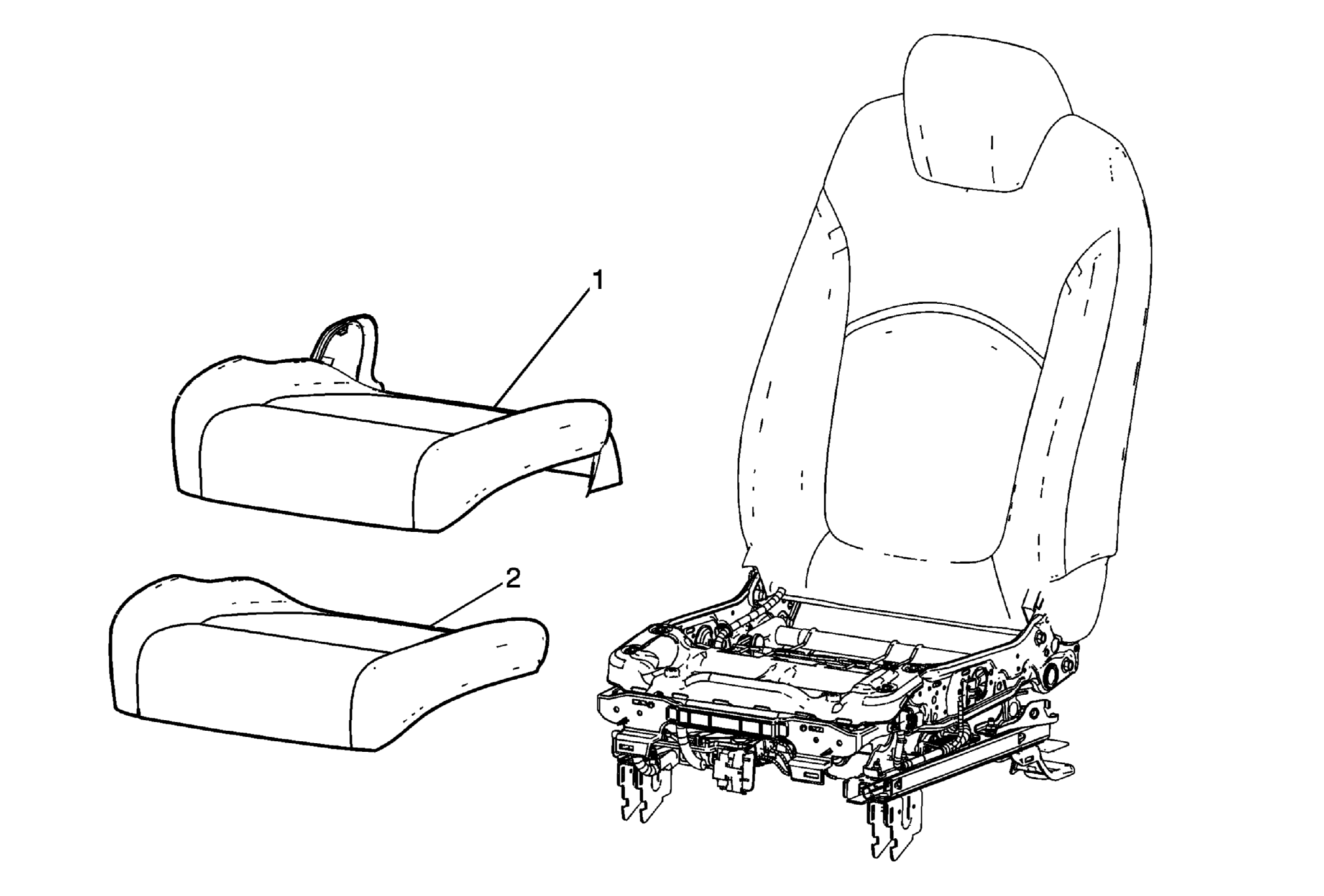

Fig 1: View Of Front Seat Cushion Cover & Pad

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Replace the passenger presence system as a complete assembly to prevent possible injury to the occupant. All the components in the service kit are assembled and calibrated as a unit. Using only some of the components in the service kit will cause the passenger presence system to operate improperly. Preliminary Procedure Remove the front seat. Refer to Bucket Seat Replacement . Remove the front seat front finish cover. Refer to Front Seat Front Finish Panel Replacement . Remove the front seat adjuster front shield.
1	Front Seat Cushion Cover Procedure Disengage the j-channel retainers from all four sides of the seat cushion frame. Disconnect the electrical connector, if equipped. Remove the seat cushion cover and pad from the seat cushion frame as an assembly. Separate the seat cushion cover from the pad.
2	Front Seat Cushion Pad Procedure If working on the passenger seat, the inflatable restraint passenger presence system is part of the seat cushion pad and replaced as an assembly. Re-zero the inflatable restraint passenger presence system whenever the seat cushion or any component of the passenger presence system is removed. Refer to Control Module References .

Callout

Component Name

CAUTION: Replace the passenger presence system as a complete assembly to prevent possible injury to the occupant. All the components in the service kit are assembled and calibrated as a unit. Using only some of the components in the service kit will cause the passenger presence system to operate improperly.

Preliminary Procedure

Remove the front seat. Refer to Bucket Seat Replacement .
Remove the front seat front finish cover. Refer to Front Seat Front Finish Panel Replacement .
Remove the front seat adjuster front shield.

Front Seat Cushion Cover

Procedure

Disengage the j-channel retainers from all four sides of the seat cushion frame.
Disconnect the electrical connector, if equipped.
Remove the seat cushion cover and pad from the seat cushion frame as an assembly.
Separate the seat cushion cover from the pad.

Front Seat Cushion Pad

Procedure

If working on the passenger seat, the inflatable restraint passenger presence system is part of the seat cushion pad and replaced as an assembly.
Re-zero the inflatable restraint passenger presence system whenever the seat cushion or any component of the passenger presence system is removed. Refer to Control Module References .
