Front Fender Replacement

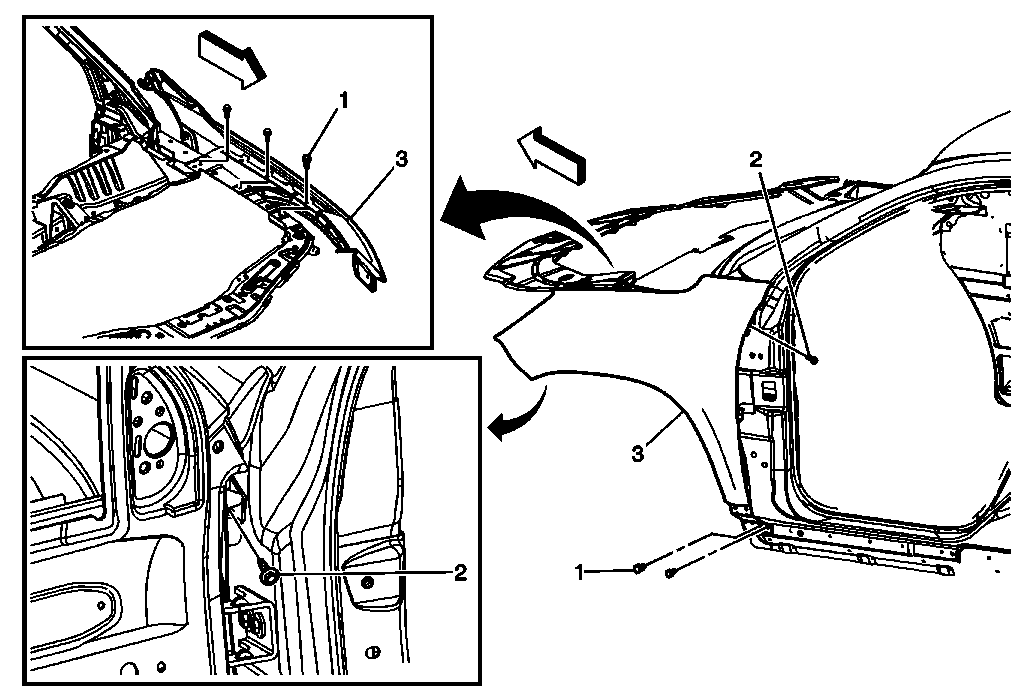

Fig 1: Identifying Front Fender

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the bumper fascia. Refer to Front Bumper Fascia Replacement (Acadia) or Front Bumper Fascia Replacement (Enclave) or Front Bumper Fascia Replacement (OUTLOOK) . Remove the wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Front) . Remove the rocker panel molding. Refer to Rocker Panel Front Molding Replacement (Acadia) or Rocker Panel Front Molding Replacement (OUTLOOK) .
1	Front Fender Bolt (Qty: 5) NOTE: Refer to Fastener Notice . Tighten: 3 N.m (25 lb in)
2	Front Fender Bolt Tip: Open the door to access the bolt.
3	Front Fender
